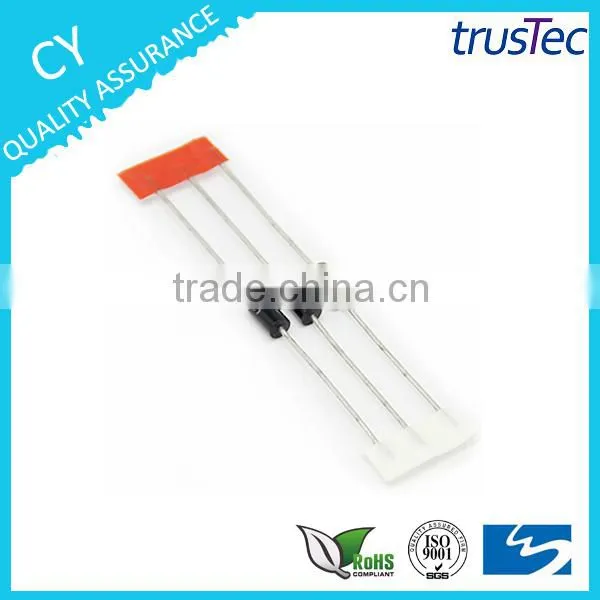

Diode SR28 SR280

Diode SR28 SR280 thumbnail-1
Diode SR28 SR280 photo-1
US$ 0.001 - 0.01 MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CY
Model Number:
SR220-SR2A0
Contact Supplier Request Quote Chat Now
Changzhou Trustec Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CY
Model Number SR220-SR2A0
Type Schottky Diode
Package Type Surface Mount
Max. Forward Voltage 0.85V
Max. Reverse Voltage 100 V
Max. Forward Current 2 A
Max. Reverse Current 1 μA
Main Product

Silicon Rectifier Diode         Fast Recovery Rectifier Diode          High Efficiency Rectifier Diode

Ultra Fast Rectifier Diode       Super Fast Rectifier Diode            Schottky Rectifier Diode

Bridge Rectifier           Switching Diode             Zener Diode              TVS Diode               DIAC

Main Customer



Specifications

1.SMD Rectifier Diode
2.ROHS & ISO9001 certification
3.Top quality & competitive price
4.Efficient export service

Product Description

Features

. Low cost

. Diffused junction

. Low Leakage

. Low forward voltage drop
. High current capability

. Easily cleaned with Freon. Alcohol. Lsopropanol and similar solvents

. The plastic material carries U/L recognition 94V-O

Mechanical Data

. Case: JEDEC DO-15. molded plastic

. Terminals: Axial leads. Solderable per MIL-STD-202. Method 208

. Polarity: Color band denotes cathode

. Weight: 0.072 ounce.  2.05 grams

. Mounting position: Any



Electrical Characteristics



TYPE

Maximum

Peak

Reverse

Voltage

Maximum

Average

Rectified

Current

Maximum

Peak

Forward

Surge

Current

Maximum

Forward

Voltage

Maximum

Reverse

Current

 Case Style
VRRM IAV IFSM VF@IF IR@TA=25℃
V A A V A mA
SR220 20 2 50 0.5 2 0.5 DO-15
SR230 30 2 50 0.5 2 0.5 DO-15
SR240 40 2 50 0.5 2 0.5 DO-15
SR250 50 2 50 0.7 2 0.5 DO-15
SR260 60 2 50 0.7 2 0.5 DO-15
SR280 80 2 50 0.85 2 0.5 DO-15
SR2A0 100 2 50 0.85 2 0.5 DO-15





Tape&Box Packing Detail



Package

QTY Per Tape

(pcs)

Component Size

(mm)

Tape Size

(mm)

Box Size

(mm)

Carton Size

(mm)

QTY Per Carton

(pcs)

Gross Weight

 (kg)
DO-15 2500 5 52 255*80*140 420*280*310 25000 19












Water Proof & Moisture Proof Packing

Diode SR28 SR280   Diode SR28 SR280



Shipping Service

1. We will ship your order within 7-15 working days after the order confirmation.
2. We can ship via your TNT/DHL/UPS/Fedex account.

3. FOB/CIF/CNF.

Our Services

1. Free Sample.

2. CY/ MIC/ OEM.

3. Payment Terms: 100% TT before shipment basing on FOB terms.

                                30% TT advanced payment, 70% TT against BL copy on CNF terms.

4. We can lower invoice goods value to reduce your import tax for the customs.

5. Test report provided for each shipping.

Company Information

Changzhou Trustec Co., Ltd

Changzhou Changyuan Electronics Co.,Ltd

Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.


Products: silicon diode, switching diode, high efficiency diode, trigger diode, schottky diode,

                SMD diode, energy saving lamp diode and switching power supply diode.



Production capacity: 300KKpcs diodes per month.



Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.

Diode SR28 SR280

FAQ

Q1: Do you have a test room?

Yes, we have professional staff to take various detection and life test for every batch of diodes,

and special simulation testing equipment aimed at the lighting industry.


Q2: What is your Lead Time?

1.For general diode and standard printing and packaging request, shipment in 3 days.

2.For special printing or packaging the first time, normal lead time would be 15 days.

3.If the order quantity is large, we hope customers place order 15 days in advance.



Q3: Can customers provide logo by themselves?

We can print according to the samples provided by customers if they need special requirement,

but delivery time would be longer because of the extra producing time for printing mold and packaging material.


Q4: Why choose cooperation with CY?

1.Monthly production capacity up to 300 million pieces and short delivery time.

2.Factory and products pass ISO9001:2008 certification, all products are conformed to RoHS.

3.Export team with 8 years of professional export experience can meet various customer requirements.

4.OEM for Good-ark electronic, Star Sea electronic and cooperate with list companies NVC, TCL etc.
