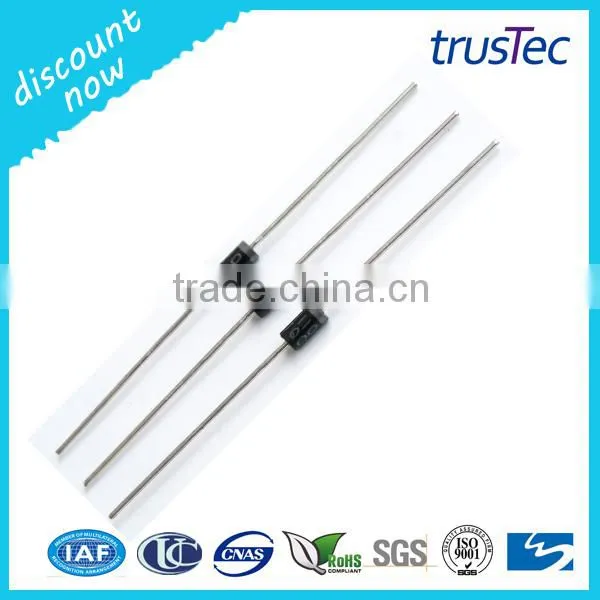

1N5820 1N5821 1N5822 Schottky Barrier Diode 3A

1N5820 1N5821 1N5822 Schottky Barrier Diode 3A thumbnail-1
1N5820 1N5821 1N5822 Schottky Barrier Diode 3A photo-1
US$ 0.0035 - 0.1 MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CY
Model Number:
1N5820,1N5821,1N5822
Contact Supplier Request Quote Chat Now
Changzhou Trustec Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CY
Model Number 1N5820,1N5821,1N5822
Type Schottky Diode
Package Type Through Hole
Max. Forward Voltage 0.5 V
Max. Reverse Voltage 20-40V
Max. Forward Current 3.0A
Max. Reverse Current 0.5 mA
Main Product

Silicon Rectifier Diode

Fast Recovery Rectifier Diode

High Efficiency Rectifier Diode

Ultra Fast Rectifier Diode

Super Fast Rectifier Diode

Schottky Rectifier Diode

Bridge Rectifier

Small Signal Switching Rectifier Diode

Zener Diode

TVS Diode

Bidirectional DIACS

Specifications

1. Schottky Diode
2.ROHS & ISO9001 certification
3.Top quality & competitive price
4.Efficient export service

Main customer



Product Description



Features

Low Reverse Leakage
Low Zener Impedance
High Stability and High Reliability



Electrical Characteristics

TYPE

Maximum

Peak

Reverse

Voltage

Maximum

Average

Rectified

Current

Maximum

Peak

Forward

Surge

Current

Maximum

Forward

Voltage

Maximum

Reverse

Current

 Case Style
VRRM IAV IFSM VF@IF IR@TA=25℃
V A A V A mA
1N5820 20 3 80 0.475 3 0.5 DO-27
1N5821 30 3 80 0.5 3 0.5 DO-27
1N5822 40 3 80 0.525 3 0.5 DO-27






Packaging & Shipping

Tape&Box Packing Detail



Package

QTY Per

Tape

Component

Size

Tape

Size

Box

Size

Carton

 Size

QTY Per

Carton

Gross

 Weight
(pcs) (mm) (mm) (mm) (mm) (pcs) (kg)
DO-27 1000 9.5 52 255*80*145 420*280*310 10000 14






Water Proof & Moisture Proof Packing

1N5820 1N5821 1N5822 Schottky Barrier Diode 3A   1N5820 1N5821 1N5822 Schottky Barrier Diode 3A



Shipping Service

1. We will ship your order within 7-15 working days after the order confirmation.
2. We can ship via your TNT/DHL/UPS/Fedex account.

3. FOB/CIF/CNF.

Our Services

1. Free Sample.

2. CY/ MIC/ OEM.

3. Payment Terms: 100% TT before shipment basing on FOB terms.

                                30% TT advanced payment, 70% TT against BL copy on CNF terms.

4. We can lower invoice goods value to reduce your import tax for the customs.

5. Test report provided for each shipping.

Company Information

Changzhou Trustec Co., Ltd

Changzhou Changyuan Electronics Co.,Ltd

Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.


Products: silicon diode, switching diode, high efficiency diode, trigger diode, schottky diode,

                SMD diode, energy saving lamp diode and switching power supply diode.



Production capacity: 300KKpcs diodes per month.



Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.

1N5820 1N5821 1N5822 Schottky Barrier Diode 3A

FAQ

Q1: Do you have a test room?

Yes, we have professional staff to take various detection and life test for every batch of diodes,

and special simulation testing equipment aimed at the lighting industry.


Q2: What is your Lead Time?

1.For general diode and standard printing and packaging request, shipment in 3 days.

2.For special printing or packaging the first time, normal lead time would be 15 days.

3.If the order quantity is large, we hope customers place order 15 days in advance.



Q3: Can customers provide logo by themselves?

We can print according to the samples provided by customers if they need special requirement,

but delivery time would be longer because of the extra producing time for printing mold and packaging material.


Q4: Why choose cooperation with CY?

1.Monthly production capacity up to 300 million pieces and short delivery time.

2.Factory and products pass ISO9001:2008 certification, all products are conformed to RoHS.

3.Export team with 8 years of professional export experience can meet various customer requirements.

4.OEM for Good-ark electronic, Star Sea electronic and cooperate with list companies NVC, TCL etc.
