Help Center5w Zener Diode
Related Products
Rectifier Diode 1A~10A 50V~1000V
Fast Recovery Diode 1A~10A 50V~1000V
Switching Diode
High Efficiency Diode 1A~6A 50V~1000V
Ultra Fast Diode 1A~3A 50V~1000V
Super Fast Diode 1A~8A 50V~600V
High Speed Switching Diode
High Voltage Diode 1200V~15000V
SMD Rectifier Diode 1A~3A 50V~1000V
SMD Fast Recovery Diode 1A~3A 50V~1000V
SMD Ultra Fast Diode 1A~3A 50V~1000V
SMD Schottky Diode 1A~3A 20V~100V
Schottky Diode 1A~15A 20V~100V
Zener Diode 0.5W~1W
TVS Diode 400W~5000W
Dual Schottky Diode 10A~50A 20V~60V
Bidirectional DIACS
Bridge Rectifier 1A~50A 50V~1000V
Features

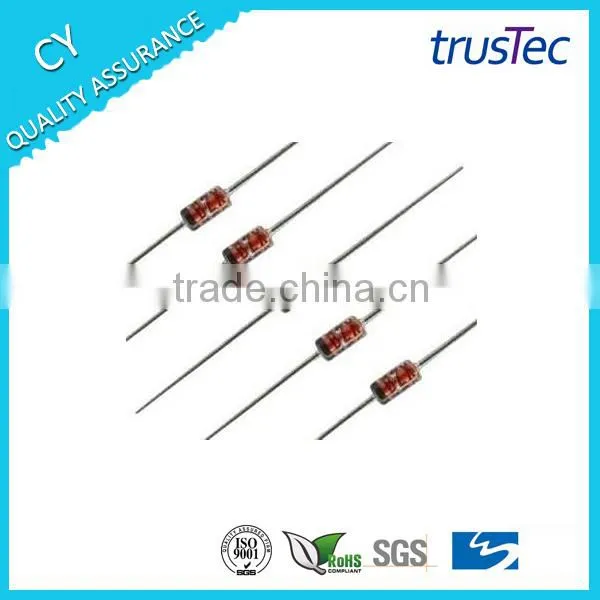

. Silicon Planar Power Zener Diodes
. Standard Zener voltage tolerance is 5% .Add suffix "A" for 3% tolerance.Other Zener voltages and tolerances are availoable upon request.
. These diodes are also available in the MELF case with type designation ZM5225 thru ZM5267
Mechanical Data
. Case: JEDEC DO-35 Glass Case
. Weight: approx.0.13 gram
Electrical Characteristics
| TYPE | Normal Zener Voltage | Test Current | Maximum Zener Impedance | Maximum Reverse Leakage Current | Maximum Regulator Current | |||
| VZ@IZT | IZT | ZZ@IZT | ZZK@IZK | IZK | IR@VR | VR | IZM | |
| V | mA | Ω | Ω | mA | μA | V | mA | |
| 1N5342B | 6.8 | 175 | 1 | 200 | 1 | 10 | 4.9 | 700 |
| 1N5343B | 7.5 | 175 | 1.5 | 200 | 1 | 10 | 5.4 | 630 |
| 1N5344B | 8.2 | 150 | 1.5 | 200 | 1 | 10 | 5.9 | 580 |
| 1N5345B | 8.7 | 150 | 2 | 200 | 1 | 10 | 6.3 | 545 |
| 1N5346B | 9.1 | 150 | 2 | 150 | 1 | 7.5 | 6.6 | 520 |
| 1N5347B | 10 | 125 | 2 | 125 | 1 | 5 | 7.2 | 475 |
| 1N5348B | 11 | 125 | 2.5 | 125 | 1 | 5 | 8 | 430 |
| 1N5349B | 12 | 100 | 2.5 | 125 | 1 | 2 | 8.6 | 395 |
| 1N5350B | 13 | 100 | 2.5 | 100 | 1 | 1 | 9.4 | 365 |
| 1N5351B | 14 | 100 | 2.5 | 75 | 1 | 1 | 10.1 | 340 |
| 1N5352B | 15 | 75 | 2.5 | 75 | 1 | 1 | 10.8 | 315 |
| 1N5353B | 16 | 75 | 2.5 | 75 | 1 | 1 | 11.5 | 295 |
| 1N5354B | 17 | 70 | 2.5 | 75 | 1 | 0.5 | 12.2 | 280 |
| 1N5355B | 18 | 65 | 2.5 | 75 | 1 | 0.5 | 13 | 265 |
| 1N5356B | 19 | 65 | 3 | 75 | 1 | 0.5 | 13.7 | 250 |
| 1N5357B | 20 | 65 | 3 | 75 | 1 | 0.5 | 14.4 | 237 |
| 1N5358B | 22 | 50 | 3.5 | 75 | 1 | 0.5 | 15.8 | 216 |
| 1N5359B | 24 | 50 | 3.5 | 100 | 1 | 0.5 | 17.3 | 198 |
| 1N5360B | 25 | 50 | 4 | 110 | 1 | 0.5 | 18 | 190 |
| 1N5361B | 27 | 50 | 5 | 120 | 1 | 0.5 | 19.4 | 176 |
| 1N5362B | 28 | 50 | 6 | 130 | 1 | 0.5 | 20.1 | 170 |
| 1N5363B | 30 | 40 | 8 | 140 | 1 | 0.5 | 21.6 | 158 |
| 1N5364B | 33 | 40 | 10 | 150 | 1 | 0.5 | 23.8 | 144 |
| 1N5365B | 36 | 30 | 11 | 160 | 1 | 0.5 | 25.9 | 132 |
| 1N5366B | 39 | 30 | 14 | 170 | 1 | 0.5 | 28.1 | 122 |
| 1N5367B | 43 | 30 | 20 | 190 | 1 | 0.5 | 31 | 110 |
| 1N5368B | 47 | 25 | 25 | 210 | 1 | 0.5 | 33.8 | 100 |
| 1N5369B | 51 | 25 | 27 | 230 | 1 | 0.5 | 36.7 | 93 |
| 1N5370B | 56 | 20 | 35 | 280 | 1 | 0.5 | 40.3 | 86 |
| 1N5371B | 60 | 20 | 40 | 350 | 1 | 0.5 | 43 | 79 |
| 1N5372B | 62 | 20 | 42 | 400 | 1 | 0.5 | 44.6 | 76 |
| 1N5373B | 68 | 20 | 44 | 500 | 1 | 0.5 | 49 | 70 |
| 1N5374B | 75 | 20 | 45 | 620 | 1 | 0.5 | 54 | 63 |
| 1N5375B | 82 | 15 | 65 | 720 | 1 | 0.5 | 59 | 58 |
| 1N5376B | 87 | 15 | 75 | 760 | 1 | 0.5 | 63 | 54.5 |
| 1N5377B | 91 | 15 | 75 | 760 | 1 | 0.5 | 65 | 52.5 |
| 1N5378B | 100 | 12 | 90 | 800 | 1 | 0.5 | 72 | 47.5 |
Packaging & Shipping
Tape Packing (T/B)
| Package | QTY Per Tape (pcs) | Component Size (mm) | Tape Size (mm) | Box Size (mm) | Carton Size (mm) | QTY Per Carton (pcs) | Gross Weight (kg) |
| DO-41-1 | 5000 | 5.0 | 52 | 255*80*140 | 370*280*310 | 50000 | 16.00 |
| DO-41-2 | 5000 | 5.0 | 52 | 255*80*145 | 420*280*310 | 50000 | 19.00 |
| DO-41-3 | 5000 | 5.0 | 52 | 255*50*140 | 440*280*310 | 80000 | 15.00 |
| DO-41-4 | 2500 | 5.0 | 52 | 255*80*88 | 420*280*310 | 37500 | 19.00 |
| DO-15 | 2500 | 5.0 | 52 | 255*80*140 | 420*280*310 | 25000 | 19.00 |
| DO-27 | 1000 | 9.5 | 52 | 255*80*145 | 420*280*310 | 10000 | 14.00 |
| R-6 | 500 | 9.5 | 52 | 255*80*140 | 420*280*350 | 5000 | 14.00 |
Shipping
Shipping Service
1. We will ship all your order within 7-15 days after the order confirmation.
2. We can Ship via your shipping account as your instruction.
3. Regarding the declared value on the package for customs clearance, we are pleased to follow your wishes, just feel free to inform us when ordering.
1. Free Sample.
2. Contact us freely for samples and detailed characteristics, we would reply at the first time.
3. CY brand/ MIC brand/ OEM.
4. Payment Terms: 100% TT before shipment basing on FOB terms.
20% TT advanced payment, 80% TT against BL copy on C&F terms.
Changzhou Trustec Co., Ltd
Changzhou Changyuan Electronics Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, schottky diode,
SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300,000,000 pieces of diodes per month.
Top quality: OEM for Good-ark electronic, Merrill lynch electronic, Star Sea electronic, Tak Cheong electronic, Panjit electronic and cooperate with Pentium electrical, NVC and Samsung electronic.
Application: Military project, Aerospace project, Solar junction box, Telecommunication, Railway, Civil products

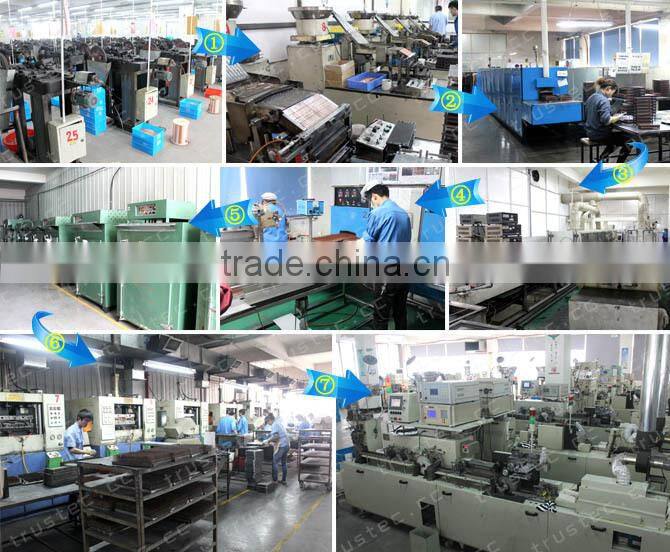

Well-regulated workshops

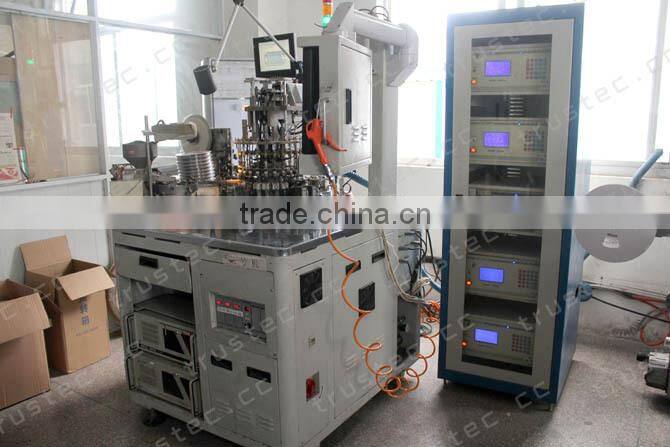

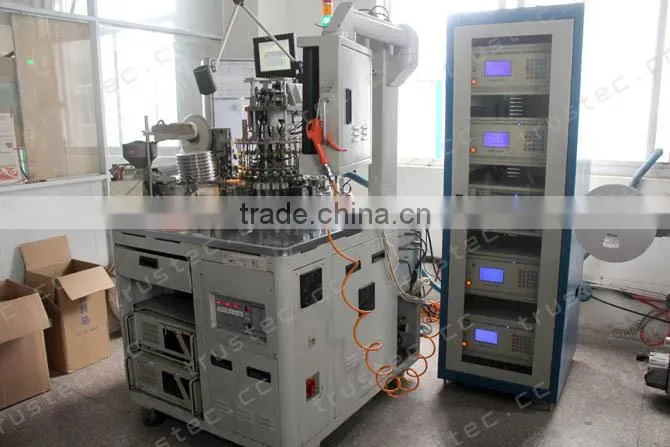

Precise production and test equipment
Q1: Do you have a test room?
Yes, we have professional staff to take various detection and life test for every batch of diodes,
and special simulation testing equipment aimed at the lighting industry.
Q2: What is your Lead Time?
For general diode and standard printing and packaging request, shipment in 3 days.
For special printing or packaging the first time, normal lead time would be 15 days.
If the order quantity is large, we hope customers place order 15 days in advance for safety.
Q3: Can customers provide logo by themselves?
We can print according to the samples provided by customers if they need special requirement,
but delivery time would be longer because of the extra producing time for printing mold and packaging material.
Q4: Why choose cooperation with us?
Monthly production capacity up to 300 million pieces and short delivery time.
Factory and products pass ISO9001:2008 certification, all products are conformed to RoHS.
Foreign trade team with 7 years of professional export experience can meet various customer requirements.
OEM for Good-ark electronic, Merrill lynch electronic, Star Sea electronic, Tak Cheong electronic, Panjit electronic and cooperate with Pentium electrical, NVC and Samsung electronic.
