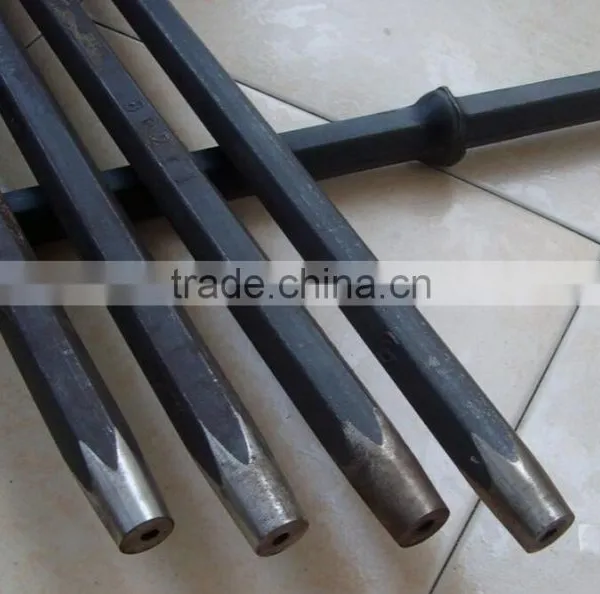

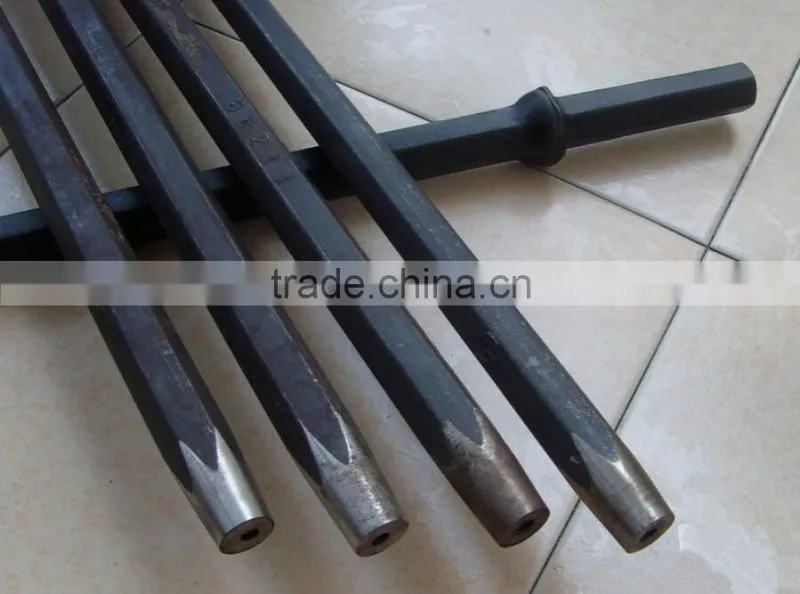

Hex22 Intergral Drill Steel for Rock Drilling Tools

Hex22 Intergral Drill Steel for Rock Drilling Tools thumbnail-1

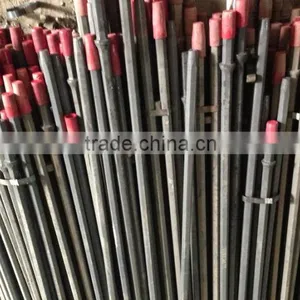

Hex22 Intergral Drill Steel for Rock Drilling Tools thumbnail-2

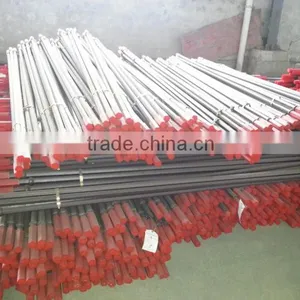

Hex22 Intergral Drill Steel for Rock Drilling Tools thumbnail-3
Hex22 Intergral Drill Steel for Rock Drilling Tools photo-1

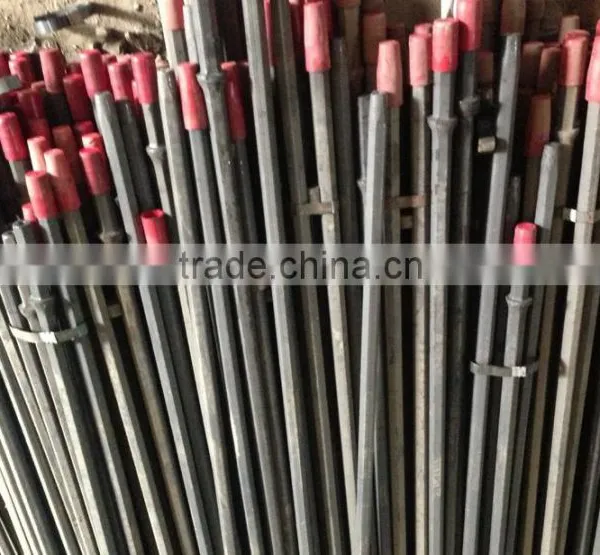

Hex22 Intergral Drill Steel for Rock Drilling Tools photo-2

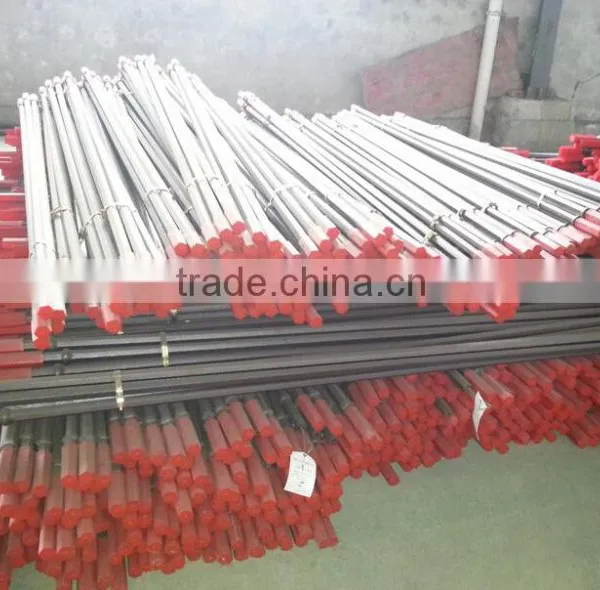

Hex22 Intergral Drill Steel for Rock Drilling Tools photo-3
US$ 10 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Miroc
Model Number:
rock drill steel rod, Button Drill Bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB BeiJing or TianJin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Miroc
Model Number rock drill steel rod, Button Drill Bit
Type Other, Drill bit
Material Other, Tungsten Carbide, Carbide,Alloy steel bar and tungsten carbide
Use Other, Tunneling, Mining,Quarrying,Construction



KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.





Aplication



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry



Description &Specification

1. Diameter: 30 to 42mm
2. Shank: Hex22*108mm
3. Length: 600mm, 800mm, 1000mm, 1200mm, 2400mm, etc.



Product Name:

integral drill steel

Types

Tapered drill rods, Integral drill rods, Plug hole rods

Application::

Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

Material:

High quality carbide and high quality steel

MOQ:

No requirement for testing and trial order

We can produce as your request of carbide size, different length of drill rods.

Types of drill rods

Specifications

Length            (mm)

Shank

Weight (kg)

Tapered drill rods

Taper Angle: 4, 6, 7, 11, 12 degree

400mm to 8000mm

Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm

1.7 - 24.9

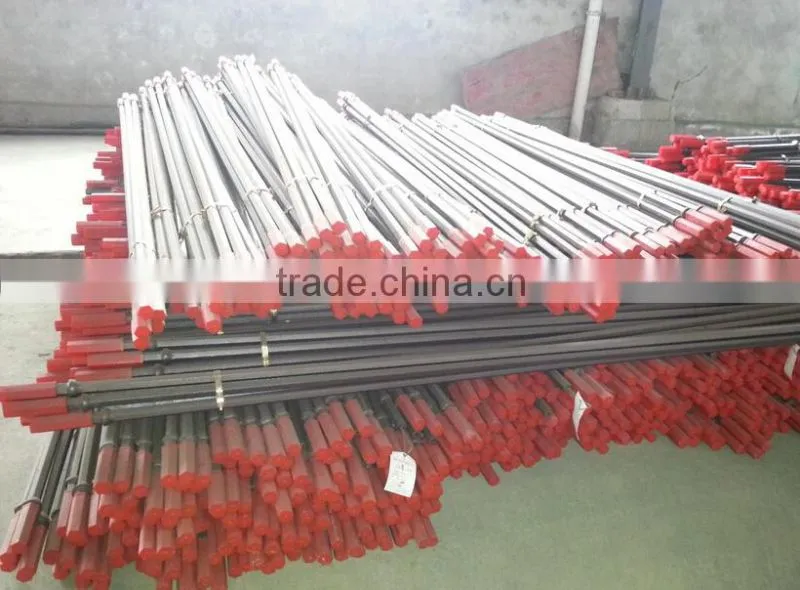

Integral drill steel

Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

400mm to 4800mm

3 – 15.4

Plug hole rods

Chisel bit diameter: 17mm, 20mm, 22mm

150mm to 710mm

0.6 - 2.9





Chisel Bit Integral Drill Steel
Shank 22 x 108 mm (7/8” x 4 1/4”)
  Length (mm) Bit Diameter (mm) PN.
1 400 24 4148300018
2 400 29 4148300019
3 600 27 4148300020
4 800 23 4148300021
5 800 28 4148300022
6 1200 23 4148300023
7 1600 27 4148300024
8 2000 28 4148300025
9 2400 26 4148300026
10 3200 25 4148300027

Plug Hole Integral Drill Steel
Shank 19 x 108 mm (3/4” x 4 1/4”)
  Length (mm) Bit Diameter (mm) PN.
1 210 17 4148300028
2 210 20 4148300029
3 210 22 4148300030
4 260 20 4148300031
5 260 22 4148300032
6 310 22 4148300033
7 340 20 4148300034

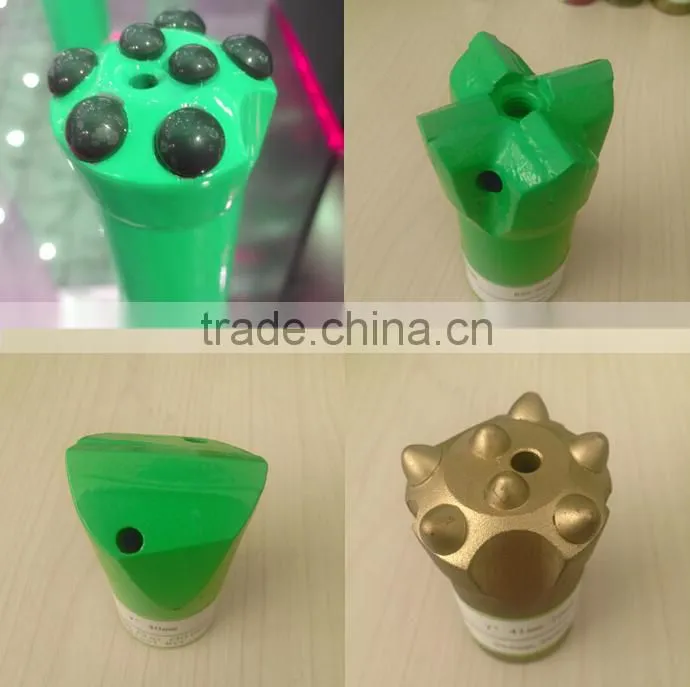

Chisel Bit, 7 ° , 11° , 12°
  Length (mm) Chisel Size (H x W) mm Weight (Kg)
1 26 10x7 0.17
2 28 10x7 0.18
3 30 13.5x8 0.22
4 32 13.5x8 0.24
5 34 13.5x8 0.27
6 36 13.5x8 0.3
7 38 13.5x8 0.33
8 38 15x9 0.33
9 40 3.5x9.2 0.38
10 40 15x9.8 0.38
11 42 13.5x9.2 0.41
12 42 15x9.8 0.41
13 43 13.5x9.2 0.42

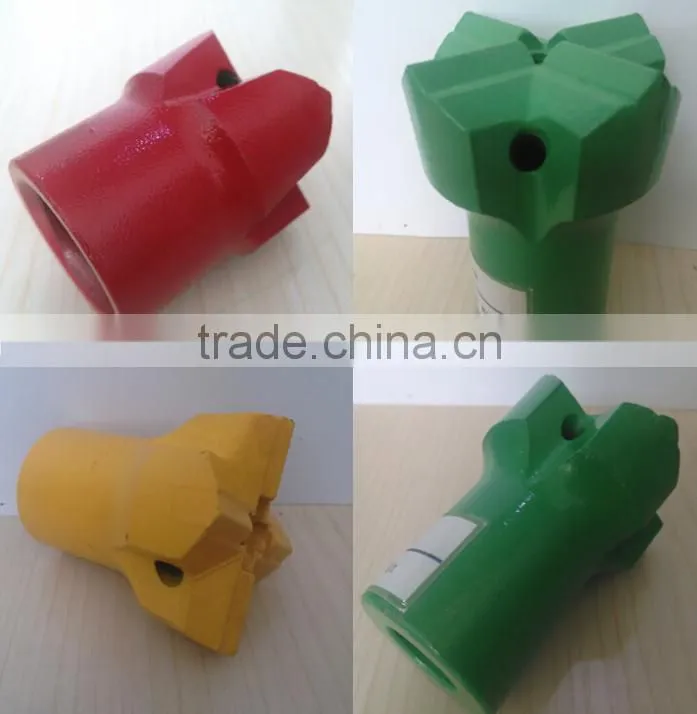

Cross Type Bit, 7 ° , 11° , 12°
  Length (mm) Chisel Size (H x W) mm Weight (Kg)
1 30 12x12x8 0.29
2 32 12x12x8 0.31
3 33 12x12x8 0.33
4 34 12x12x8 0.34
5 35 12x12x8 0.36
6 36 13x12x8 0.37
7 38 14x12x8 0.43
8 40 15x12x8 0.47
9 41 15x12x8 0.49
10 42 15x12x8 0.51
11 43 15x12x8 0.53
12 45 17x14x8 0.58
13 48 17x14x8 0.67
14 50 19x14x8 0.72
15 55 20x16x10 0.92
16 60 20x16x10 1.19
