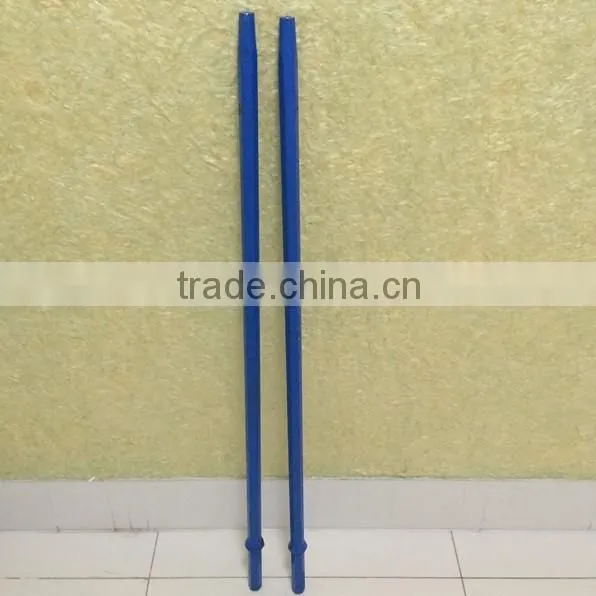

Help CenterHex 22 , Hex 25 Tapered Drill Rod Taper Rod
Related Products
-
Hex22mm,25mm Small Hole Drilling Hex Tapered China Drill RodUS$ 7 - 120MOQ: 5 Pieces -
2015 High Performance Mining and Quarry Tapered Steel RodUS$ 7 - 120MOQ: 5 Pieces
-
Rock Drill Steel Rod for Quarrying and MiningUS$ 7 - 120MOQ: 5 Pieces
-
Hex Mining Rock Drill Tapered Steel Rods,shank22x108mm(7/8"x4 1/4")US$ 7 - 120MOQ: 5 Pieces
-
Used Drill Rod/taper Drilling Rod for Rock DrillingUS$ 7 - 120MOQ: 5 Pieces
Specifications
Taper drill rod 7/11/12degreeHigh strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification of taper drill rod
Part Number |
Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Weight (kg) |
4148300305 |
H25-12D-1830, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
1830 |
6 |
7.96 |
4148300306 |
H25-12D-2435, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
2435 |
8 |
10.38 |
4148300307 |
H25-12D-3050, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
3050 |
10 |
12.84 |
4148300308 |
H25-12D-3655, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
3655 |
12 |
15.26 |
4148300309 |
H25-12D-3965, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
3965 |
13 |
16.5 |
4148300310 |
H25-12D-4270, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
4270 |
14 |
17.72 |
4148300311 |
H25-12D-4880, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
4880 |
16 |
20.16 |
4148300312 |
H25-12D-5530, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
5530 |
18 1/7 |
22.76 |
4148300313 |
H25-12D-6095, 12° Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mm |
6095 |
20 |
25.02 |
Packaging:Carton or Wooden Box
