Cross Bit With Taper 7 11 12 Degree

Cross Bit With Taper 7 11 12 Degree thumbnail-1
Cross Bit With Taper 7 11 12 Degree thumbnail-2
Cross Bit With Taper 7 11 12 Degree thumbnail-3
Cross Bit With Taper 7 11 12 Degree thumbnail-4
Cross Bit With Taper 7 11 12 Degree photo-1

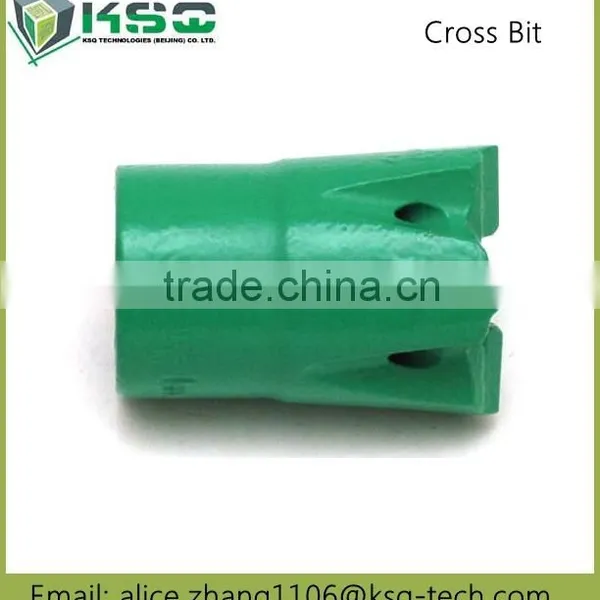

Cross Bit With Taper 7 11 12 Degree photo-2

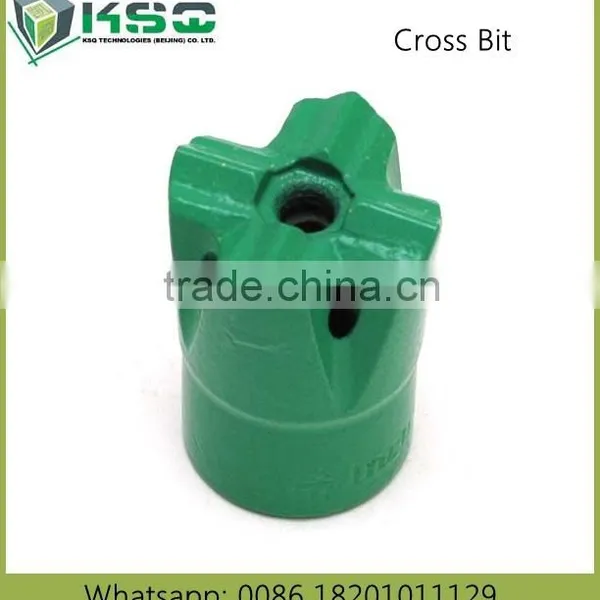

Cross Bit With Taper 7 11 12 Degree photo-3

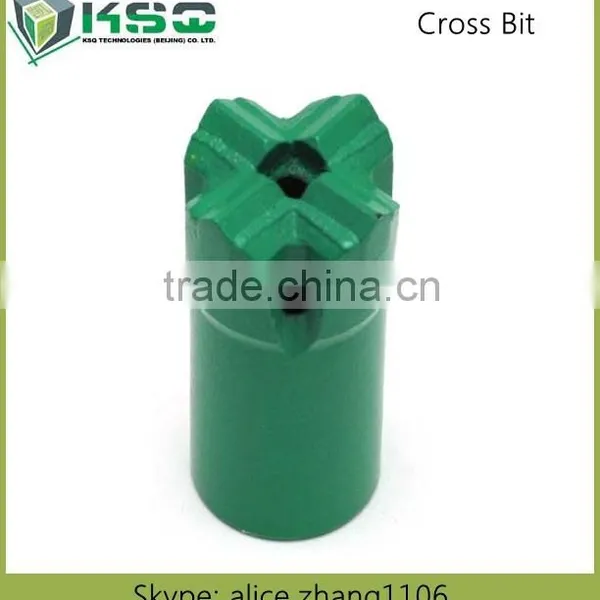

Cross Bit With Taper 7 11 12 Degree photo-4
US$ 5 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
Cross Bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port Huangpu Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number Cross Bit
Machine Type Drilling Tool
Certification API
Processing Type Forging
Use Other, Mining, quarrying, tunneling

Cross Bit With Taper 7 11 12 Degree



Description



Cross type bit with steel inserts using thread system. It has a slow penetration rate but it produces a very straight drill hole.

Product Name:

Cross Bit

Material:

Alloy steel bar and tungsten carbide bit

MOQ:

No MOQ required for testing and trial order

Processing

CNC milling and proprietary heat treatment process

Taper type

Taper 7, 11, 12 degree

Diameter

29mm-60mm

Face shape

X-type and cross type

Color

 Green,Gold, Black



Applications:
• Dimensional Stone Industry
• Underground Mining
• Tunneling



Specification:

Taper 7 Degree Cross Bit
Bit Dia. For class of rock Buttons Taper Weight Part Number
mm inch HxW kg
30 1 1/6 11~15 12x12x8 7º 0.29 4148300141
32 1 1/4 11~15 12x12x8 7º 0.31 4148300142
33 1 2/7 11~15 12x12x8 7º 0.33 4148300143
34 1 1/3 11~15 12x12x8 7º 0.34 4148300144
35 1 3/8 11~15 12x12x8 7º 0.36 4148300145
36 1 3/7 11~15 13x12x8 7º 0.37 4148300146
38 1 1/2 11~15 14x12x8 7º 0.43 4148300147
40 1 4/7 11~15 15x12x8 7º 0.47 4148300148
41 1 3/5 11~15 15x12x8 7º 0.49 4148300149
42 1 2/3 11~15 15x12x8 7º 0.51 4148300150
43 1 2/3 11~15 15x12x8 7º 0.53 4148300151
45 1 7/9 11~15 17x14x8 7º 0.58 4148300152
48 1 8/9 11~15 17x14x8 7º 0.67 4148300153
50 2    11~15 19x14x8 7º 0.72 4148300154
55 2 1/6 11~15 20x16x10 7º 0.92 4148300155
60 2 1/3 11~15 20x16x10 7º 1.19 4148300156



Taper 11 Degree Cross Bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
29 1 1/7 12x8 - 1 2 0.25 4148300233
30 1 1/6 12x8 - 1 2 0.26 4148300234
32 1 1/4 12x8 - 1 2 0.3 4148300235
33 1 2/7 12x8 - 1 2 0.32 4148300236
35 1 3/8 12x8 - 1 2 0.36 4148300237
36 1 3/7 12x8 - 1 2 0.39 4148300238
38 1 1/2 12x8 - 1 2 0.43 4148300239
41 1 3/5 14x8 - 1 2 0.49 4148300240



Taper 12 Degree Cross Bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
29 1 1/7 12x8 - 1 2 0.25 4148300282
30 1 1/6 12x8 - 1 2 0.26 4148300283
32 1 1/4 12x8 - 1 2 0.3 4148300284
33 1 2/7 12x8 - 1 2 0.32 4148300285
35 1 3/8 12x8 - 1 2 0.36 4148300286
36 1 3/7 12x8 - 1 2 0.39 4148300287
38 1 1/2 12x8 - 1 2 0.43 4148300288
40 1 4/7 12x8 - 1 2 0.46 4148300289
41 1 3/5 14x8 - 1 2 0.49 4148300290

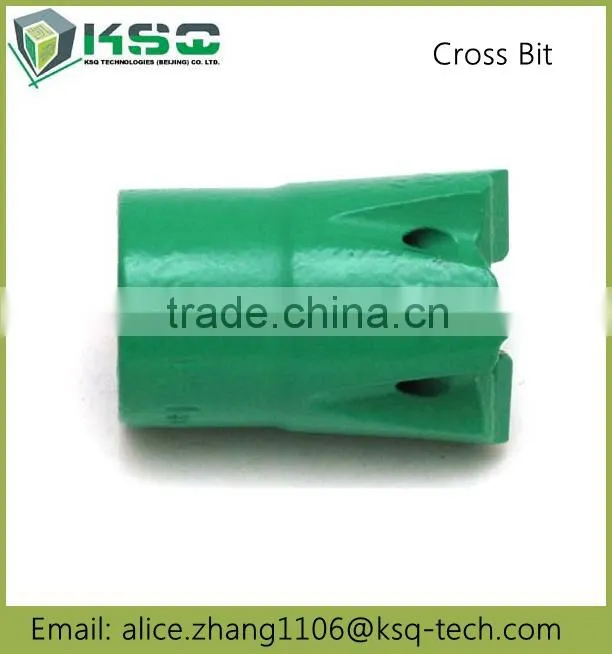

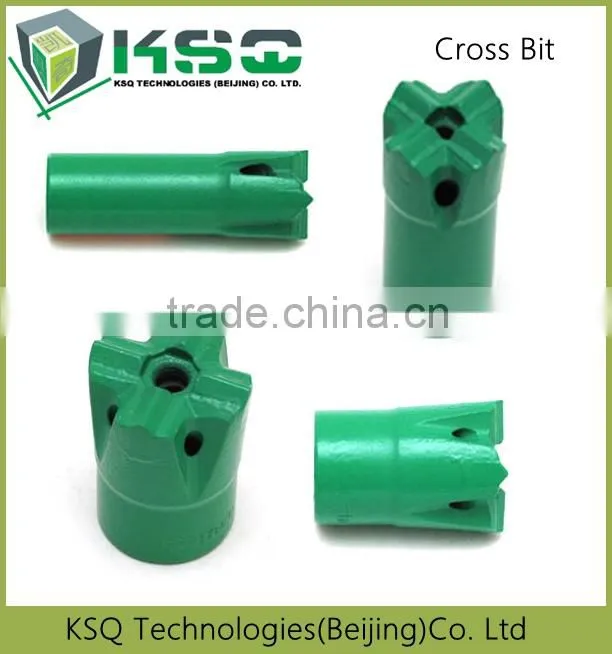

Photos:


 Cross Bit With Taper 7 11 12 Degree



Cross Bit With Taper 7 11 12 Degree

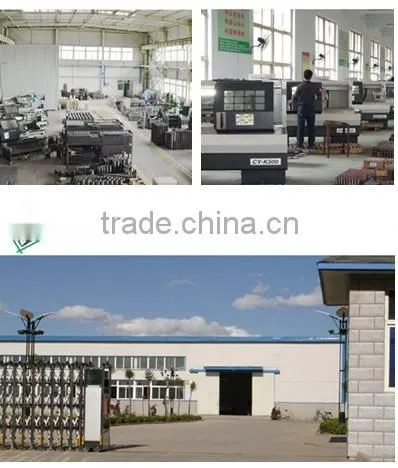

Company Information
