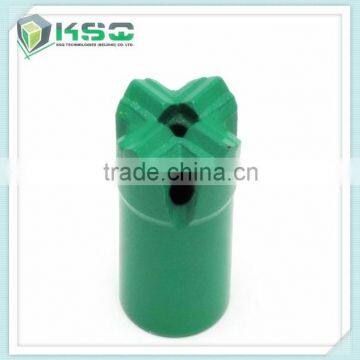

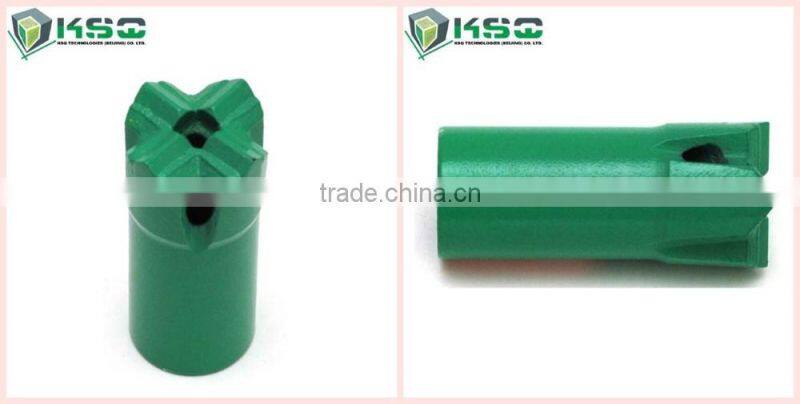

Tapered Tungsten Carbide Cross Bit for Rock Drilling Mining Bit
- 30000 Piece / Pieces per Month
- China Port
- L/C D/P D/A Credit Card PayPal
-
ZY SUPER HARD PCD Twist Drill Bits
-
ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
-
BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
-
hard formation core drill bits, BQ NQ HQ PQ NTW HTW, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
-
impregnated diamond core drill bit, BQ NQ HQ PQ, wireline core barrels, coring bits, hard formation, deep hole rock core recovery
-
TIDEWAY Finger Joint cutter Finished Sandblast T.c.t Single Piece Finger Joint Carbide Shaper Cutters
Product Details
| Place of Origin: | Beijing, China | Brand Name: | MIROC | Model Number: | Tappered rock drilling cross bit 7°/11°/12° |
| Material: | Tungsten Carbide | Use: | Metal Drilling |
Product Description
7°/11°/12° Tapered Cross Bit , Mining/Qaurring Cross Bit
Product Specification
Miroc Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Why you choose Miroc cross bit?
1. Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stale and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
5. High grade tungsten carbide inserts
6 Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Product Technical Reference
Small Hole Drilling Tools |
Taper Degree |
Bit Dia. (mm) / inch |
Chisel Size(H*W) |
Weight (kg) |
Tapered Cross Type Bit | 7°
|
30, 11/6 |
12*12*8 |
0.29 |
32, 11/4 | 12*12*8 | 0.31 | ||
33, 12/7 | 12*12*8 | 0.33 | ||
34, 11/3 | 12*12*8 | 0.34 | ||
35, 13/8 | 12*12*8 | 0.36 | ||
36, 13/7 | 13*12*8 | 0.37 | ||
38, 11/2 | 14*12*8 | 0.43 | ||
40, 14/7 | 15*12*8 | 0.47 | ||
41, 13/5 | 15*12*8 | 0.49 | ||
42, 12/3 | 15*12*8 | 0.51 | ||
43, 12/3 | 15*12*8 | 0.53 | ||
45, 17/9 | 17*14*8 | 0.58 | ||
48, 18/9 | 17*14*8 | 0.67 | ||
50, 2 | 19*14*8 | 0.72 | ||
55, 21/6 | 20*16*10 | 0.92 | ||
60, 21/3 | 20*16*10 | 1.19 | ||
Tapered Cross Type Bit | 11° | 29, 11/7 | 12*8 | 0.25 |
30, 11/6 | 12*8 | 0.26 | ||
32, 11/4 | 12*8 | 0.3 | ||
33, 12/7 | 12*8 | 0.32 | ||
35, 13/8 | 12*8 | 0.36 | ||
36, 13/7 | 12*8 | 0.39 | ||
38, 11/2 | 12*8 | 0.43 | ||
41, 13/5 | 14*8 | 0.49 | ||
Tapered Cross Type Bit | 12° | 29, 11/7 | 12*8 | 0.25 |
30, 11/6 | 12*8 | 0.26 | ||
32, 11/4 | 12*8 | 0.30 | ||
33, 12/7 | 12*8 | 0.32 | ||
35, 13/8 | 12*8 | 0.36 | ||
36, 13/7 | 12*8 | 0.39 | ||
38, 11/2 | 12*8 | 0.43 | ||
40, 14/7 | 12*8 | 0.46 | ||
41, 13/5 | 14*8 | 0.49 |
Our service
• Competitive factory price
• Delivery on time
• Excellent after service
Our Company
KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.
Our portfolio includes:
Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
