Home > Tools & Hardware > Drilling Tools > Drill Bit > Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling

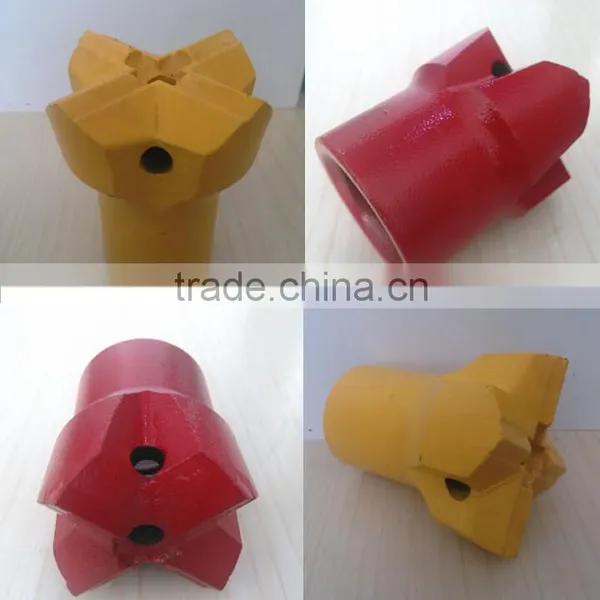

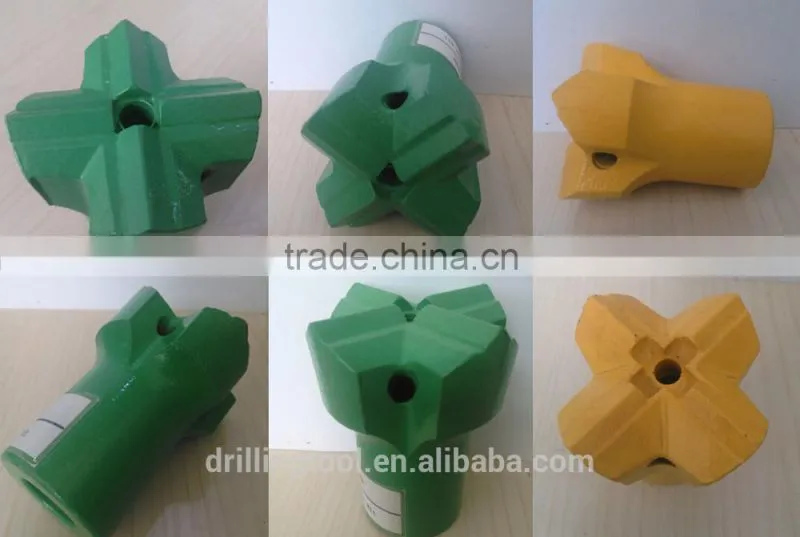

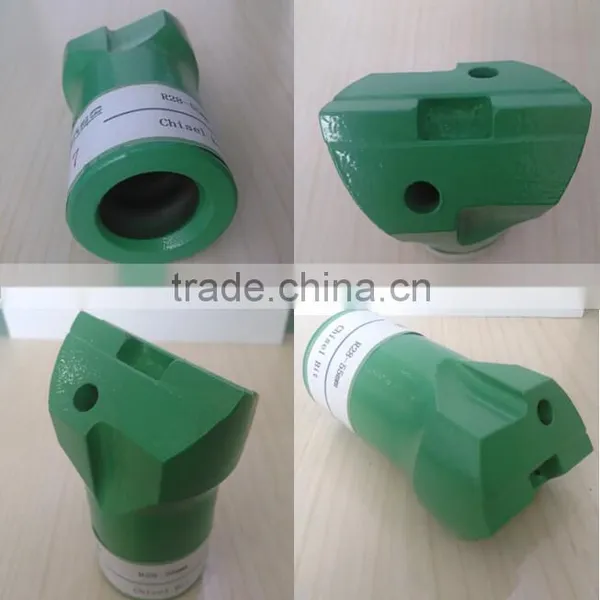

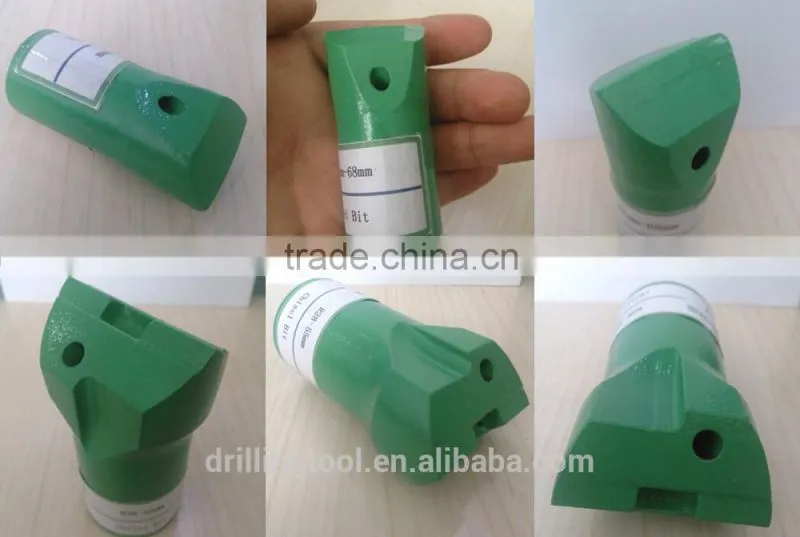

Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling

Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling thumbnail-1
Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling thumbnail-2
Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling photo-1
Tapered Cross Type Bits / Chisel Bit for Hard Rock Drilling photo-2
US$ 10 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
Taper button bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number Taper button bit
Type Other, rock bit
Material Other, Tungsten Carbide, 45CrNiMoV / YK05
Use Other, rock drill / tunneling

Application of Tungsten Carbide cross drill bit



Cross bit are mainly used in coal mining,metal mining,stoning and tube engineering.

1) Tapered connection: 7°11°12°

2) Thread connection: R22.R25.R28.R32.R38.T45.T51.

3) Bit diameter: 28-127mm.





Description & Specification:





Cross Type Bit, 7 ° , 11° , 12°
  Length (mm) Chisel Size (H x W) mm Weight (Kg)
1 30 12x12x8 0.29
2 32 12x12x8 0.31
3 33 12x12x8 0.33
4 34 12x12x8 0.34
5 35 12x12x8 0.36
6 36 13x12x8 0.37
7 38 14x12x8 0.43
8 40 15x12x8 0.47
9 41 15x12x8 0.49
10 42 15x12x8 0.51
11 43 15x12x8 0.53
12 45 17x14x8 0.58
13 48 17x14x8 0.67
14 50 19x14x8 0.72
15 55 20x16x10 0.92
16 60 20x16x10 1.19





Tapered Cross Type Bits / Chisel Bit for Hard Rock DrillingTapered Cross Type Bits / Chisel Bit for Hard Rock Drilling



Key Word:

drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | poranterä | borr | boret | jesie | druil giotán  | rock drill button bits  |  button rock drill bit |  button bits rock drilling tools  |  button bit | tungsten carbide button bits  | button drill bit | button rock drill bit |







Company Profile:



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
