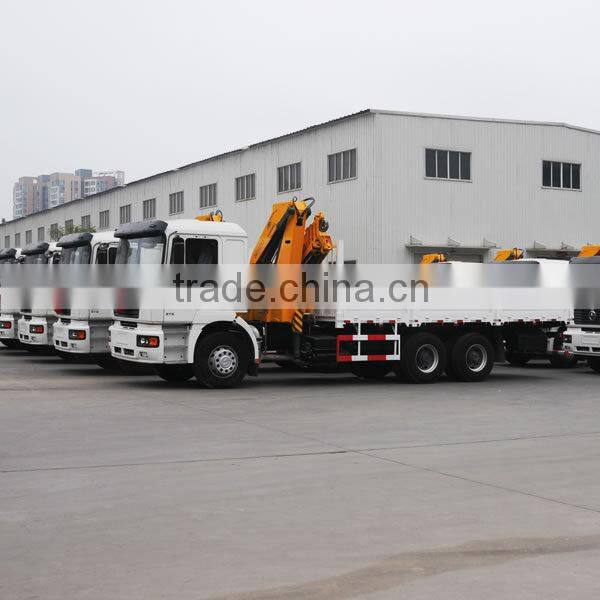

Help Center12 Ton Truck-Mounted Crane for Sale
Related Products
-
YUTONG 8 Ton Truck-Mounted Crane for SaleNegotiableMOQ: 1 Set -
Yutong 8-tonTruck-Mounted Crane ManufacturerNegotiableMOQ: 1 Set
-
Truck-Mounted Crane for Asia Market With 2015 New DesignUS$ 20,000 - 8,522,200MOQ: 1 Set
-
80 Ton Hoist Crawler CraneNegotiableMOQ: 1 Set
-
Construction Crane,US$ 150,000 - 200,000MOQ: 1 Set
YUTONG Truck-Mounted Crane
The truck with loading crane whose key components are imported original products is a newly developed yutong special purpose vehicle with such advantages as high reliability, strong hoisting and loading ability, reasonable design and easy operation. It can be widely used in the traffic and transport, civil engineering, electric power, petroleum, stone industry and dock for loading and unloading of goods, resye and long-distance freight transfer.
Technical Parameter of EQ5168JSQL Truck-Mounted Crane (6.3t)
Declared external dimension (mm) |
9000×2500×3650 |
Actual external dimension (mm) |
9100(9400)×2500×3650 |
Chassis model |
EQ1168GLJ2 |
Dimension of car body |
5700×2300×550 |
Total Weight(kg) |
9710 |
Rated load (Kg) |
7955 |
Maximum vehicle speed (km/h) |
95 |
Wheelbase (mm) |
5100 |
Front suspension/rear suspension (mm) |
12502650 |
Approach angle/departure angle(°) |
30/24 |
Wheel track of front wheel (mm) |
1900 |
Wheel track of rear wheel (mm) |
1800 |
Crane Model |
SQ6.3SA3 |
Max. rating load(kg) |
6300 |
Max. working range (m) |
11.2 |
Max. lifting height(m) |
13 |

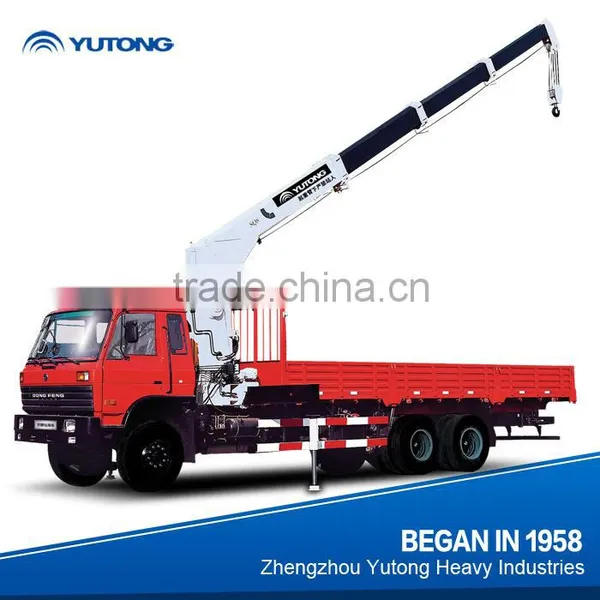

Picture of truck-mounted crane
1. Hexagonal boom technology provides great centering performance and high flexural strength; the complete machine features high strength and low weight; the complete machine is made of high-strength special steel, greatly increasing the hoisting capacity;
2. Strong undercarriage and turntable; the turntable is 10% larger than those manufactured by other manufacturers, increasing the hoisting safety and capacity and extending the service life;
3. The design of 360 ° full-rotating facilitates the usage and maximizes the working efficiency.
4. Truck-mounted crane is easy to operate. Operating levers are installed at both sides of the crane frame, in order to facilitate operation by users at different sides; the operation of standard lever is extremely easy without operation fatigue. On each operating lever, visualized marks are posted for easy operation.
5. Booms adopt synchronous retraction mode which features high speed, high efficiency and increases hoisting capacity and extends crane's service life.
6. Large displacement oil pump is used. When the engine is running at idle, the operating device can run quickly, therefore saving energy and fuel, and creating greater value for the customer.
7. Hydraulic system can be interlocked when the operator gets on and off the crane, in order to avoid misoperation and ensure safe and reliable operation.
8. Optimized high-level sub-frame structure improves the strength of the frame.
9. Through cooperation with chassis manufacturers such as Dongfeng, the chassis performance parameters are matched with the crane performance parameters more reasonably, greatly increasing the overall operation performance of the crane.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
