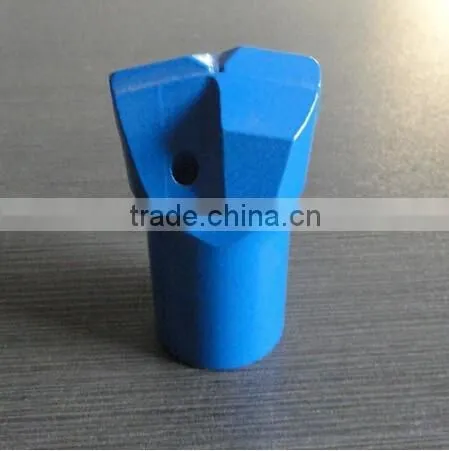

7degree Tapered Flat Chipways Chisel Drill Bit With CNC Milling For Quarrying
- 30000 Piece / Pieces per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Tungsten carbide rotary rock drill bits for drilling machines
-
CNC Alloy Steel Chisel Drill Bit Mining Industrial Drill Bits
-
taper carbide stone drilling bit jack hammer chisel bits
-
Chiese Tungsten Carbide Rock Drill Bit Supplier
-
Tungsten Carbide Tapered Chisel Drill Bit Hardened Steel Drill Bits
-
7 Degree Stone Oblique Chipway Chisel Drill Bit Tapered Drill Bits
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | cnc drill bits | Type | Other, Drill Bit, cnc drill bits | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, Carbide, Tungsten carbide and high strength alloy steel | Processing Type | Forging | |
| Use | Other, tunneling, mining,quarrying,construction, Well drilling,mining drilling,ore drilling |
Product Description
Specifications
High grade tungsten carbide insertsBit bodies manufactured from high grade steel and processed using state-of-the-art CNC
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Tapered drilling tools Types | Diameter (mm) | Taper Angle (Degree) | Skirt | Weight (kg) |
Tapered chisel bits | 26-80mm | 7°,11°,12° | Normal, Length | 0.15 - 0.45 |
Tapered cross bits | 32-60mm | Normal, Length | 0.18 - 0.7 | |
Tapered button bits | 30-55mm | Normal, Length | 0.2 - 0.5 |
Button bit and Insert types
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Applications
• Underground mining
• Dimensional Stone Industry
• Tunneling,quarrying
Feature
1.tapered cross bits connect with tapered drill rod for drilling holes
2.Stale and mature welding technology ensure good quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
reliable and very cost-effective
Specification of tapered chisel bits
Part Number | Product Code and Brief Description | Bit Diameter (mm) | Bit Diameter (inch) | Tip Size (W x H, mm) | Weight (kg) |
4148300123 | FC38-7D-23, 7° Taper Flat Chipways Chisel Bit | 38 | 1 1/2 | 16 x 10 | 0.36 |
4148300124 | FC40-7D-23, 7° Taper Flat Chipways Chisel Bit | 40 | 1 4/7 | 16 x 10 | 0.38 |
4148300125 | FC41-7D-23, 7° Taper Flat Chipways Chisel Bit | 41 | 1 3/5 | 16 x 10 | 0.41 |
4148300126 | FC42-7D-23, 7° Taper Flat Chipways Chisel Bit | 42 | 1 2/3 | 16 x 10 | 0.43 |
4148300127 | FC45-7D-23, 7° Taper Flat Chipways Chisel Bit | 45 | 1 7/9 | 22 x 16 x 10 | 0.6 |
4148300128 | FC46-7D-25, 7° Taper Flat Chipways Chisel Bit | 46 | 1 4/5 | 22 x 16 x 10 | 0.61 |
4148300129 | FC48-7D-25, 7° Taper Flat Chipways Chisel Bit | 48 | 1 8/9 | 22 x 16 x 10 | 0.63 |
4148300130 | FC50-7D-25, 7° Taper Flat Chipways Chisel Bit | 50 | 2 | 22 x 16 x 10 | 0.65 |
4148300131 | FC56-7D-25, 7° Taper Flat Chipways Chisel Bit | 56 | 2 1/5 | 24 x 16 x 10 | 0.82 |
4148300132 | FC60-7D-25, 7° Taper Flat Chipways Chisel Bit | 60 | 2 1/3 | 26 x 16 x 10 | 0.91 |
4148300133 | FC65-7D-25, 7° Taper Flat Chipways Chisel Bit | 65 | 2 5/9 | 26 x 16 x 10 | 1.12 |
4148300134 | FC80-7D-25, 7° Taper Flat Chipways Chisel Bit | 80 | 3 1/7 | 36 x 16 x 10 | 1.4 |
Packaging:Carton or Wooden Box
