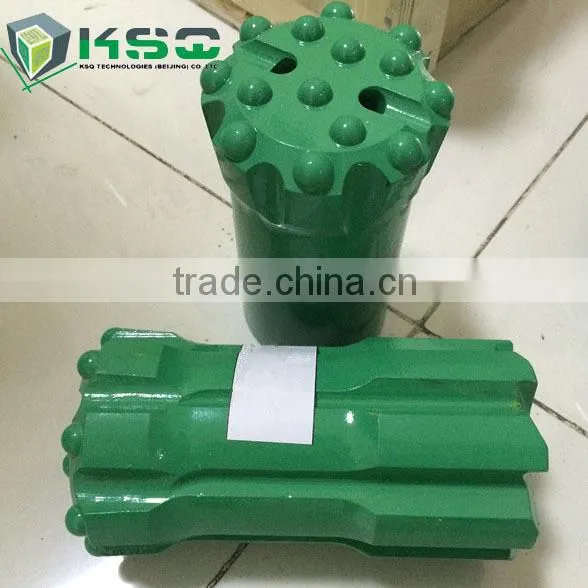

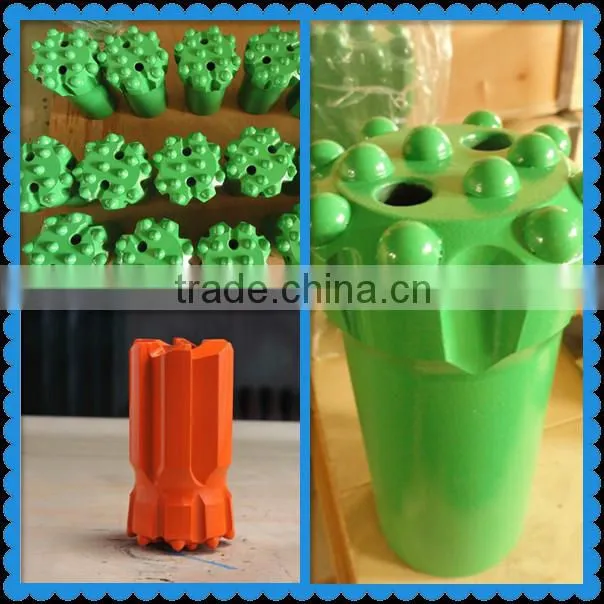

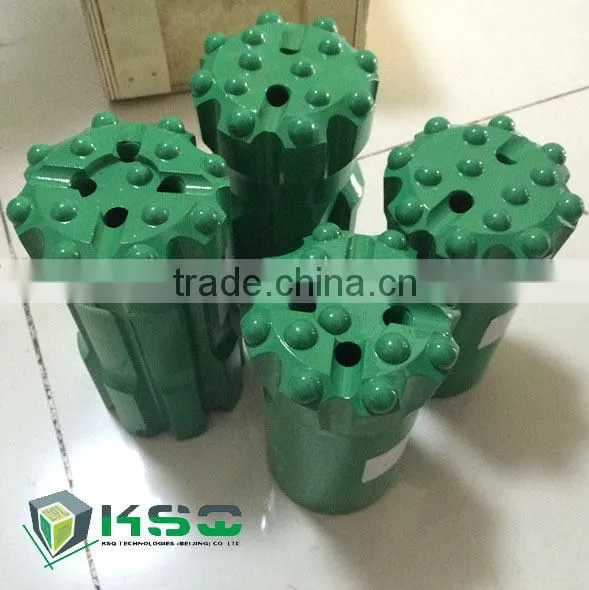

T45 Retrac Button Bit

Name: T45 Retrac Button Bit
Brand: MIROC
SKU: 119081317

US$ 20 - 150 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

MIROC

Model Number:

Dome Bit

Contact Supplier Request Quote Chat Now

KSQ Technologies (Beijing) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port Huangpu Port Shanghai Port etc.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name MIROC

Model Number Dome Bit

Type Drill Bit

Machine Type Drilling Tool

Certification API

Material Carbide

Processing Type Forging

Use Other, Mining, Quarry, Tunneling

Product Description

Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

Product Name:	Thread button bits
Description:	For different rock hardness mining,tunneling,quarrying projects.
Material:	Alloy steel bar and tungsten carbide bit
MOQ:	trial order 1-5pcs
Body Type	Normal type and retract type
Thread type	R25,R28,R32,R38,T38,T45,T51,ST58,ST68
Diameter	32mm-152mm
Button bit shape	Spherical and Ballistic
Face shape	Flat shape and Drop-center shape

Applications of rock drilling tools

• Underground mining and surface mining

• Long hole drilling
• Bench mining and production mining

• Granite, Basalt, Limestone rock etc.

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Production Process:

1. Raw material 2. Making bits body 3. Making bit face 4. Heat-treatment 5. Package.

Specification:

T45 Retrac Button Bit

Bit Dia.		Buttons and Size (mm)			Flushing Hole		Weight	Part Number
mm	inch	Front	Gauge	Angle	Front	Side	kg	Part Number
Spherical
70	2 3/4	4x11	8x11	40°	2	-	2.5	4148300835
70	2 3/4	3x11, 1x9	6x11	35°	3	-	2.5	4148300836
70	2 3/4	4x10, 1x10	8x11	35°	4	-	2.5	4148300837
76	3	4x11	8x11	40°	2	-	3.2	4148300838
76	3	5x11	8x12	35°	2	1	3.2	4148300839
76	3	3x11, 1x11	6x13	35°	3	-	3.2	4148300840
76	3	4x11, 1x11	8x11	35°	4	-	3.2	4148300841
76	3	4x11, 1x11	8x12	35°	4	-	3.2	4148300842
89	3 1/2	4x13	8x13	40°	2	-	5.4	4148300843
89	3 1/2	6x11	8x12	35°	2	-	5.4	4148300844
89	3 1/2	3x11, 2x11	6x13	35°	3	1	5.4	4148300845
89	3 1/2	4x11, 1x11	8x12	35°	4	-	5.4	4148300846
89	3 1/2	4x13, 1x13	8x13	35°	4	-	5.4	4148300847
102	4	5x14	8x14	40°	2	-	6.8	4148300848
102	4	6x13	8x16	40°	2	1	6.8	4148300849
102	4	3x13, 2x13	6x14	35°	3	1	6.8	4148300850
102	4	4x13, 1x13	8x14	35°	4	-	6.8	4148300851
102	4	4x13, 2x13	8x13	35°	4	1	6.8	4148300852
Ballistic
70	2 3/4	3x11, 1x9	6x11	35°	3	-	2.5	4148300853
70	2 3/4	4x10, 1x10	8x11	35°	4	-	2.5	4148300854
76	3	4x11	8x11	40°	2	-	3.2	4148300855
76	3	5x11	8x12	35°	2	1	3.2	4148300856
76	3	3x11, 1x11	6x13	35°	3	1	3.2	4148300857
76	3	4x11, 1x11	8x11	35°	4	-	3.2	4148300858
76	3	4x11, 1x11	8x12	35°	4	-	3.2	4148300859
89	3 1/2	4x13	8x13	40°	2	-	5.4	4148300860
89	3 1/2	6x11	8x12	35°	2	-	5.4	4148300861
89	3 1/2	3x11, 2x11	6x13	35°	3	1	5.4	4148300862
89	3 1/2	4x11, 1x11	8x12	35°	4	-	5.4	4148300863
89	3 1/2	4x13, 1x13	8x13	35°	4	-	5.4	4148300864
