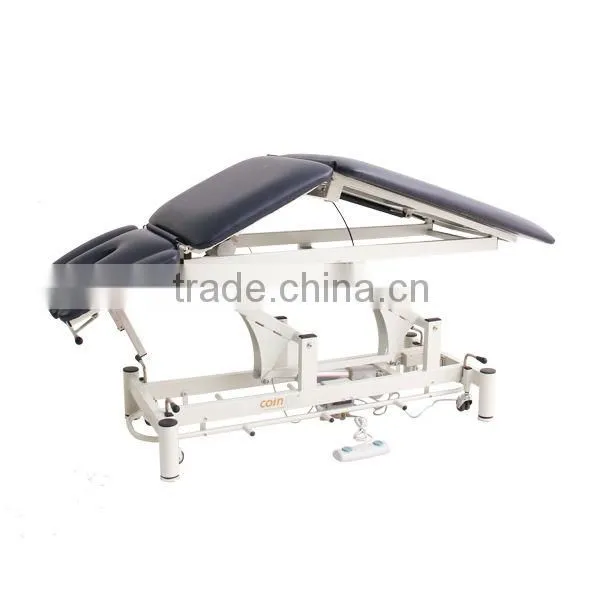

Coinfy EL05 ROBIN Electric Medical Examination Table

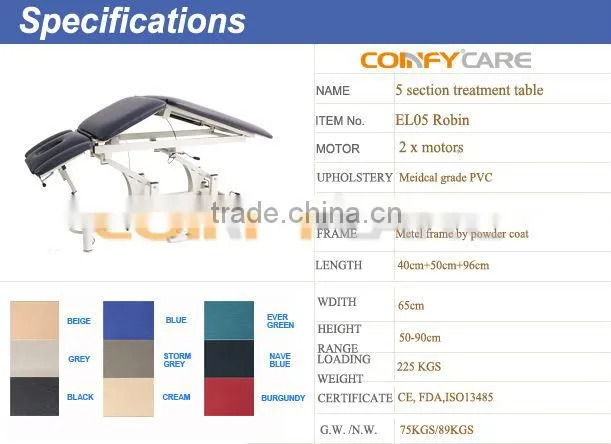

Specifications

examination table
1.Size:195x66x(50-94.5)cm
2.Iron frame by powder coating
3.High quality & Competitive price
4.Manufacture

Coinfy EL05 ROBIN electric medical examination table  is providing excellent stability, with a widest choice of top configurations to meet individual user requirements.

The height operation is optional with integral footbar switch.



Standard Spec: ( Table Electric )

1. Two electric motors, standard supports "Tmotion" brand for Hi-Lo & middle lifting.
2. Lift for height variation and middle section by double foot switches.

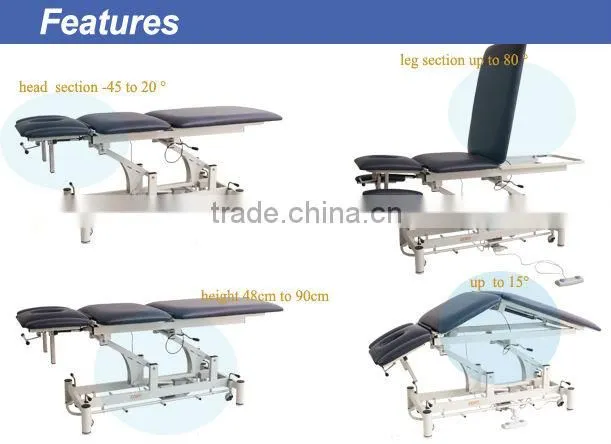

3. Adjustable backrest featuring double gas struts, angle adjustable from 0º to + 70º.
4. Adjustable head section featuring single gas struts, angle adjustable from +30° to -50°

5. Able to lift up to 225kgworking weight from its lowest height.

6. Wheels5cmdiameter.

7. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.

8. Table goes horizontal for people recovery in emergency situations.

9. Certificates: CE, FDA, ISO9001-2008, ISO13485-2007.



Optional: ( Table Electric )

1. EL-0501L: “Linak” brands motor.

2. EL-0501F: Footbar Switch.

3. EL-0501LF: optional 1 and 2.

4. Extra width upholstery up to70cmor62cm.

5. Extra2cmfoam thickness for upholstery.

6. Hand switch.

7. Paper roll holder

8. Featuring double motor strut.

9. Contact us free for more available optional.

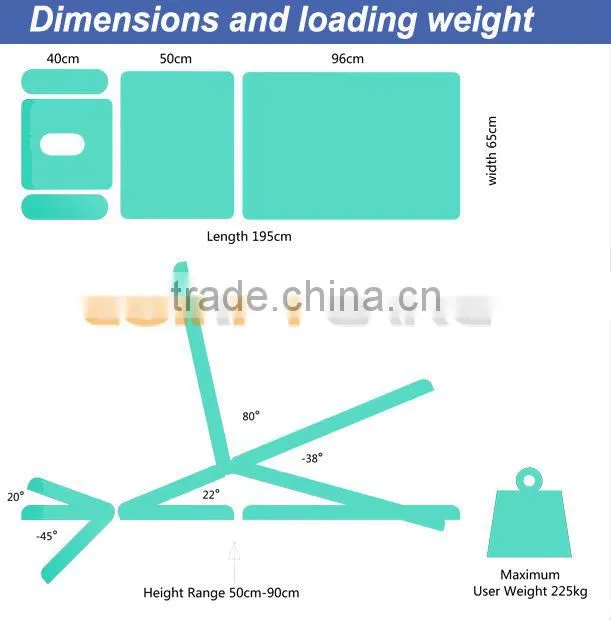

Standard Size: ( Table Electric )

Backrest Length: 96cm
Middle section Length:50cm

Head section Length:38cm

Upholstery Width:66cm

Adjustable Height:48cm–90cm

Foam Thickness:5cm

Foam Density:36g/m2
Open: 195 x 66 x (48-90)cm

Packing: 193 x 72 x56cm(Heavy carton)

N.W./G.W.: 70/83kgs

20GP/40GP:36/72pcs







COMFY since 2002, belong to Huangshan Jinfu Medical Equipment Co.,Ltd (history name Huangshan Jinfu Wood Trading Co.,LTD ) is specializing in manufacturing  a wide selection of colors and designs for Massage ,Medical & SPA Equipments, such as portable massage tables, portable massage chairs, adjustable stools, electric tables, treament tables, traction tables and examination tables ect.

As one of the leading manufacturer in this field  in China. We aim to make ordering our products a simple, effortless and pleasurable experience. Clear, simple sales materials as well as a helpful, knowledgeable and friendly team with vast experience of COMFY products guarantees that you will receive unrivalled advice and support at all times.



Coinfy EL05 ROBIN electric medical examination table
