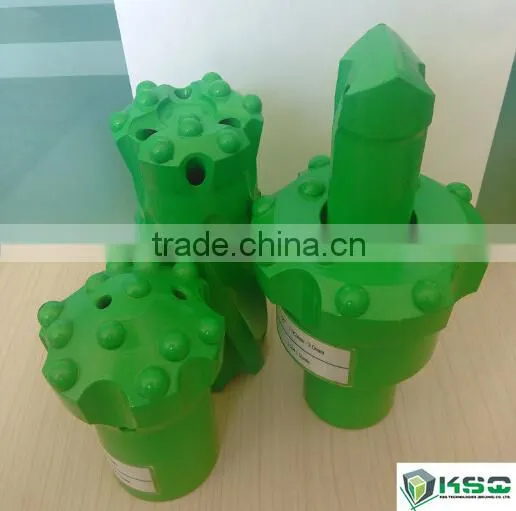

High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit

High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit thumbnail-1
High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit thumbnail-2
High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit thumbnail-3
High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit thumbnail-4
High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit photo-1

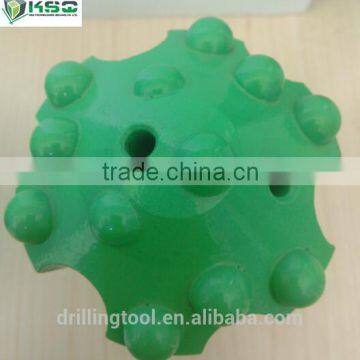

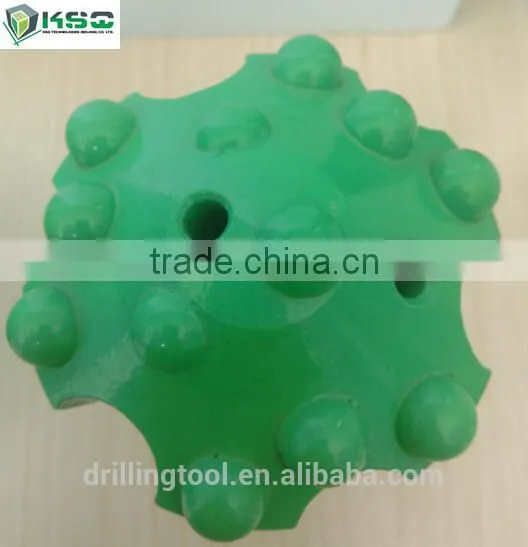

High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit photo-2

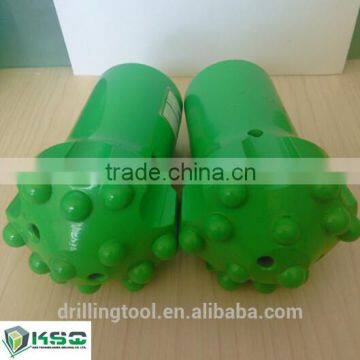

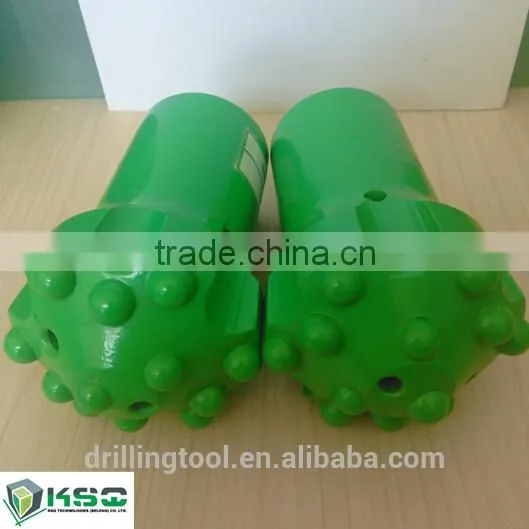

High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit photo-3

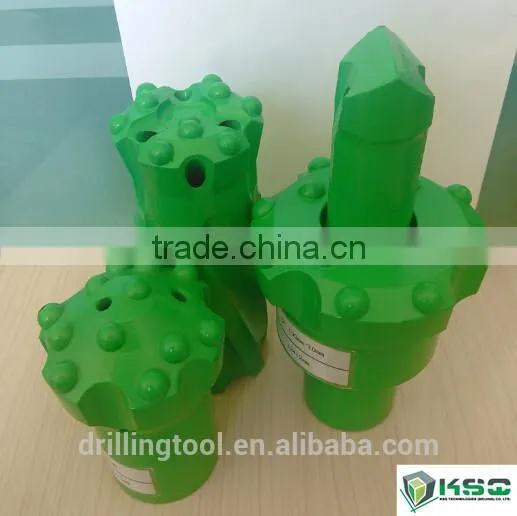

High Quality R32, T38 Dome Bit for Reaming / Mining Drill Bit photo-4
US$ 20 - 95 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
MIROC
Model Number:
mining drill bit
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TianJin or Based on Customers
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name MIROC
Model Number mining drill bit
Type Other, Carbide drill bit
Material Tungsten Carbide
Use Other, Mining, Rock drilling

Reaming rock bit applicable to reaming for first-grade and second-grade larger-diameter hole. It can reduce the sectional area between bit blade and rock hole, also solve the problem of large diameter's low drilling speed in the hard formation with good directive.

reaming bits for quarry are designed to enlarge pilot holes for development rounds,

long hole blasting of drop raises and constructing service holes.

With Pilot adaptors, the drilling direction can be ensured and accurate.

Our factory Reamer is ideal for use with rotary steerable drilling systems, providing a wellbore quality not achievable with other reaming tools. Superior wellbore quality, coupled with a proven history of performance, makes the Reamer the choice for underreaming operations.



Specification



<

R32 Dome bit for reaming
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 76 1×13 9×13 3 1 2
2 89 1×13 14×13 2 2 2.6
3 102 1×13 16×13 2 2 3.2
4 127 1×13 18×13 3 1 4.8

T38 Dome bit for reaming
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 102 1×13 16×13 2 2 -
2 127 1×13 18×13 1 3 -

T45 Dome bit for reaming
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 127 1x13 18x13 3 1 6
2 152 2x14 18x14 3 1 10.6

T51 Dome bit for reaming
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 152 2x14 18x14 3 1 10.6
