Integral Drill Rod
Description
Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.
Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
• High grade tungsten carbide inserts
specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Bit Diameter (mm) |
Weight (kg) |
| 4148300000 |
IH19-C29-400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
400 | 1 1/3 | 29 | 1.3 |
| 4148300001 |
IH19-C29-500, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
500 | 1 2/3 | 29 | 1.5 |
| 4148300002 |
IH19-C28-800, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
800 | 2 5/8 | 28 | 2.2 |
| 4148300003 |
IH19-C28-1000, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1000 | 3 2/7 | 28 | 2.6 |
| 4148300004 |
IH19-C27-1200, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1200 | 4 | 27 | 3 |
| 4148300005 |
IH19-C27-1600, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
1600 | 5 1/4 | 27 | 3.9 |
| 4148300006 |
IH19-C26-2400, Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm |
2400 | 7 7/8 | 26 | 5.7 |

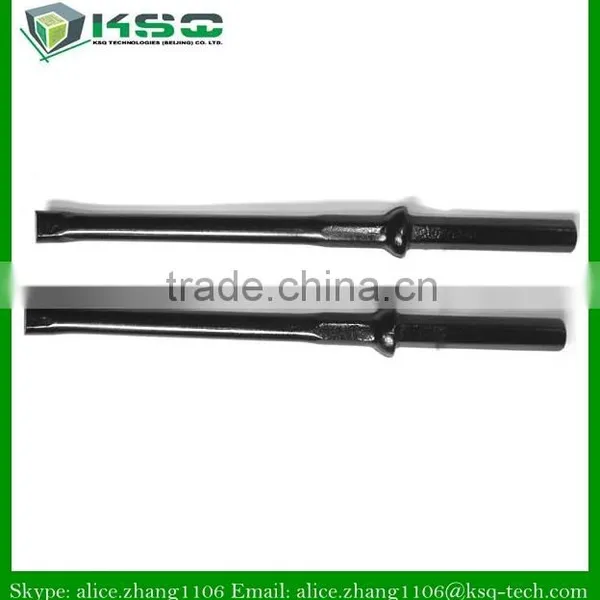

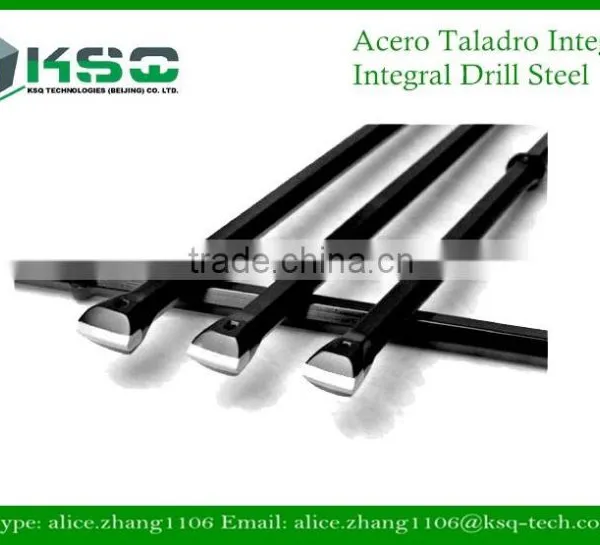

Product Pictures:
(1) Kindly please inform us the shank, Bit diameter and effective length or inform KSQ Part Number
(2) Shank Type:
Shank 19mm x 108mm
Shank 22mm x108mm
(3) Effective Length:
(4)Can design and manufacture the personalized products to meet your specical application.
(5) Order: Shank + Effective length+ Bit Diameter.
Related Rock Drilling Tools
(1) Integral Drill Rod– Chisel Bit Integral Rod and Plug Hole Integral Drill Steel
(2) Tapered Rock Drill Tools - Chisel Bit, Cross Bit, Taper Rod of Taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - Button Bit, Extension Rod, Coupling of R25 R28, R32,R38,T38,T45,T51
(4) Shank Adapters (Striking Bars) - Equivalent to Atlas Copco, Sandvik, Furukawa etc.
(5)Down-the-hole (DTH) Bits& Hammers
