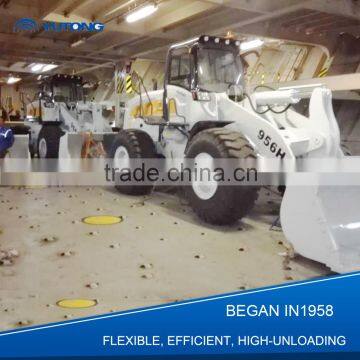

Long Arm 5 Ton CE Certificate Wheel Loader
Main Technical Parameters o
f China Loader
Model | 956H | |
Rated load (t) | 5 | |
Capacity of bucket (m3) | 2.5(rock bucket) | |
Weight of complete machine (t) | 16.4-16.8 | |
Unloading height (mm) | 3450 | |
Unloading distance (mm) | 1070 | |
Sum time of three items (s) | 10.8 | |
Power of engine (kw) | 162 | |
Lowest fuel consumption (g / kW.h) | 208 | |
Maximum breakout force (kN) | 175 | |
Steering angle | 36 | |
Maximum traveling speed (km/h) | 36 | |
Minimum turning radius | 6097 | |
Outside of tire (mm) | 6397 | |
Outside of bucket at transport position(mm) | 7020 | |
Overall dimension (length x width x height) (mm) | 8430X3000X3370 | |
Color | White | |
Engine model | WD10G220E21/Cummins(QSB6.7-C220-Ⅲ:) | |
Rated power of engine (kw/hp) | 162 /220 | |
Rated speed of engine (rpm) | 2200 | |
Maximum torque of engine (N.m) | 860/949 | |
Engine displacement | Euro 2/3 | |
Gears of gearbox | Two forward gears and one backward gear | |
Braking way | Caliper disc brake | |
Tire model | 23.5-25 16PR | |
Pressure of working system (MPa) | 18 | |
Operation manner of working system | Flexible axle operation | |
A/C system | Air conditioner, Warm air blower |
Serial number | Project | Parameter | |
1 | Engine | Shangchai engine meetingnational standard II |
|
Dongfeng cummins engine meeting national standard I |
| ||
Dongfeng cummins engine europe standard Ⅲ |
| ||
2 | Shovel bucket | Rock bucket | 2.4 m³ |
Coal bucket | 3.6 m³ | ||
Coke bucket | 4.2 m³ | ||
3 | Gear box | WG1800 tank |
|
4WG200 tank |
| ||
ZFWG190 tank |
| ||
4 | Drive axle | ZF Wet type drive axle changing |
|
5 | Else | Common arm |
|
Single rod pilot |
| ||
Double rod pilot |
| ||
Kunlun tyre |
| ||
Wood clamping changing device |
| ||
Quick changing common bucket |
| ||
Quick changing rock bucket |
| ||
Quick changing common bucket, |
| ||
Quick changing bottom fork |
| ||
Quick changingwood clamping component |
| ||
Quick changinglifting hook |
| ||
Wood clamping changing device |
| ||
Pipe grasping changing device |
| ||
Snow pushing changing device |
| ||
Added concentrate lubrication system |
| ||
Added automatic flatting device |
| ||
Added spinning alarm lamp |
| ||
Antiskid chain(1 set) |
| ||
Added reverse video system |
| ||
Reload anti-tilt cab |
| ||
Yutong yellow paint |
| ||
Carter yellow paint |
| ||
Varnish |
| ||
| 1.The frame of the loader is arranged centrally and the turning radius is small; the steering system of the loader with coaxial flow amplification makes steering flexible. 2.162kW Weichai supercharged engine of the loader makes the power powerful; due to double-pump confluence technology, the hydraulic power is strong enough. 3.Extended bucket bottom of the loader, large cut-in force, large bucket drawback angle and high full-load coefficient. |
| 4.Working device of single rocker arm is optimized, motion is smooth, force transmission ratio is large and the bucket of muck loader can lay flat automatically. 5.Integral-type front frame of the loader, single-sheet beam rear frame and structural design of thickened plates significantly improve the reliability of structural components 6.Hinge point of the loader adopts double-row centering cylinder roller bearing, which makes the stress more reasonable and makes the steering more flexible. 7."C"-shaped protecting bush of the loader is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable. 8.The hydraulic pipeline of the loader adopts "Cone-zero" double seal meeting German DIN standards, with good leakproofness and strong capacity of anti-leakage. |
| "12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
