China CE Aproved 5 Ton Front End Loader Price
Main Technical Parameters o
f China Loader
Model | 956H | |
Rated load (t) | 5 | |
Capacity of bucket (m3) | 2.5(rock bucket) | |
Weight of complete machine (t) | 16.4-16.8 | |
Unloading height (mm) | 3450 | |
Unloading distance (mm) | 1070 | |
Sum time of three items (s) | 10.8 | |
Power of engine (kw) | 162 | |
Lowest fuel consumption (g / kW.h) | 208 | |
Maximum breakout force (kN) | 175 | |
Steering angle | 36 | |
Maximum traveling speed (km/h) | 36 | |
Minimum turning radius | 6097 | |
Outside of tire (mm) | 6397 | |
Outside of bucket at transport position(mm) | 7020 | |
Overall dimension (length x width x height) (mm) | 8430X3000X3370 | |
Color | White | |
Engine model | WD10G220E21/Cummins(QSB6.7-C220-Ⅲ:) | |
Rated power of engine (kw/hp) | 162 /220 | |
Rated speed of engine (rpm) | 2200 | |
Maximum torque of engine (N.m) | 860/949 | |
Engine displacement | Euro 2/3 | |
Gears of gearbox | Two forward gears and one backward gear | |
Braking way | Caliper disc brake | |
Tire model | 23.5-25 16PR | |
Pressure of working system (MPa) | 18 | |
Operation manner of working system | Flexible axle operation | |
A/C system | Air conditioner, Warm air blower |
Serial number | Project | Parameter | |
1 | Engine | Shangchai engine meetingnational standard II |
|
Dongfeng cummins engine meeting national standard I |
| ||
Dongfeng cummins engine europe standard Ⅲ |
| ||
2 | Shovel bucket | Rock bucket | 2.4 m³ |
Coal bucket | 3.6 m³ | ||
Coke bucket | 4.2 m³ | ||
3 | Gear box | WG1800 tank |
|
4WG200 tank |
| ||
ZFWG190 tank |
| ||
4 | Drive axle | ZF Wet type drive axle changing |
|
5 | Else | Common arm |
|
Single rod pilot |
| ||
Double rod pilot |
| ||
Kunlun tyre |
| ||

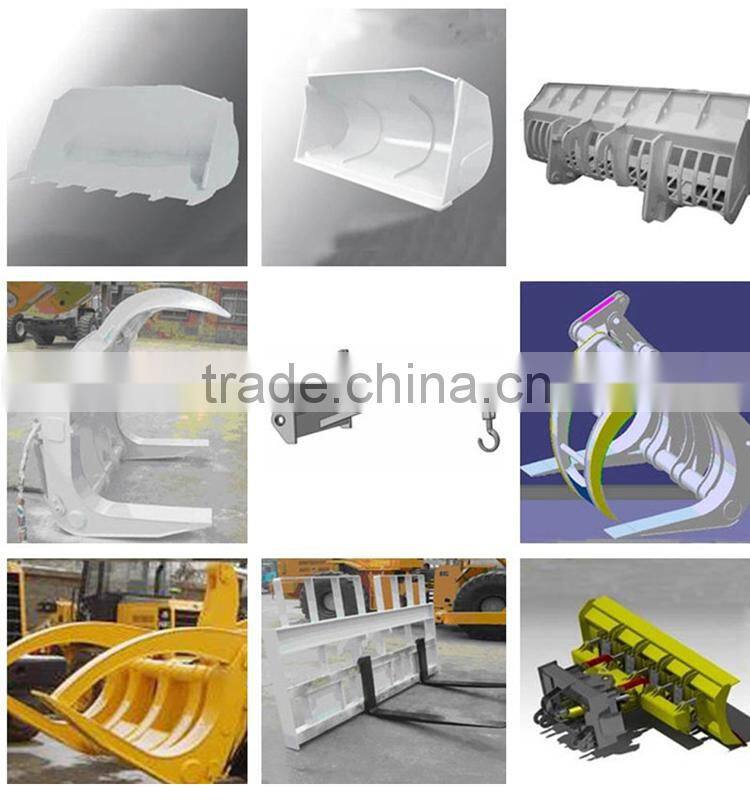

Wood clamping changing device |
| ||
Quick changing common bucket |
| ||
Quick changing rock bucket |
| ||
Quick changing common bucket, |
| ||
Quick changing bottom fork |
| ||
Quick changingwood clamping component |
| ||
Quick changinglifting hook |
| ||
Wood clamping changing device |
| ||
Pipe grasping changing device |
| ||
Snow pushing changing device |
| ||
Added concentrate lubrication system |
| ||
Added automatic flatting device |
| ||
Added spinning alarm lamp |
| ||
Antiskid chain(1 set) |
| ||
Added reverse video system |
| ||
Reload anti-tilt cab |
| ||
Yutong yellow paint |
| ||
Carter yellow paint |
| ||
Varnish |
| ||
| 1.The frame of the loader is arranged centrally and the turning radius is small; the steering system of the loader with coaxial flow amplification makes steering flexible. 2.162kW Weichai supercharged engine of the loader makes the power powerful; due to double-pump confluence technology, the hydraulic power is strong enough. 3.Extended bucket bottom of the loader, large cut-in force, large bucket drawback angle and high full-load coefficient. |
| 4.Working device of single rocker arm is optimized, motion is smooth, force transmission ratio is large and the bucket of muck loader can lay flat automatically. 5.Integral-type front frame of the loader, single-sheet beam rear frame and structural design of thickened plates significantly improve the reliability of structural components 6.Hinge point of the loader adopts double-row centering cylinder roller bearing, which makes the stress more reasonable and makes the steering more flexible. 7."C"-shaped protecting bush of the loader is used at the hinge joint of hinge pin, which has good dustproof effect and makes the hinge joint of hinge pin more wearable. 8.The hydraulic pipeline of the loader adopts "Cone-zero" double seal meeting German DIN standards, with good leakproofness and strong capacity of anti-leakage. |
|
1: After receiving the customer mobile, we will help customer solve problem through removing the resources of
YUTONG service and reply the customer clearly in one hours;
2: To improve the service quality all the time, in 2 working days of the end of on-sit service, we will pay a return visit
about the satisfaction of after sale service;
3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will
have 3 times On-Site Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service
engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving order to product scrapping, YUTONG will provide full reliance,
seamless docking and service in the period of product using.
|
|
|
|
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
