Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Rated Load 1 Ton 75hp Chinese Skid Steer Loader
US$ 20,002 - 40,003
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YUTONG
Model Number:
275F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Euro3 Best Quality Bulldozer Wear PartsUS$ 3,000 - 9,000MOQ: 2 Sets -
China CE Aproved 5 Ton Front End Loader PriceUS$ 1 - 115,950MOQ: 1 Piece
-
New Small 3 Ton Wheel Loader InstallmentUS$ 1 - 98,000MOQ: 1 Piece
-
Long Arm 5 Ton CE Certificate Wheel LoaderUS$ 1 - 113,540MOQ: 1 Unit
-
Hot Sale New 1 m3 Bucket China Excavator PriceUS$ 220,100 - 352,300MOQ: 1 Unit
Condition
New
Brand Name
YUTONG
Model Number
275F
Place of Origin
Henan, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
3490mmx1820mmx2150mm
Rated Load
1000kg
Certification
ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas

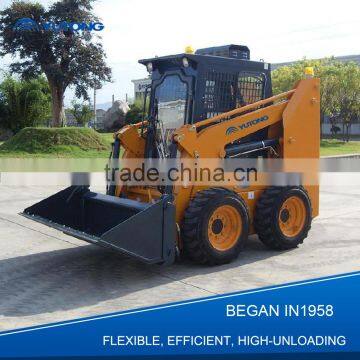

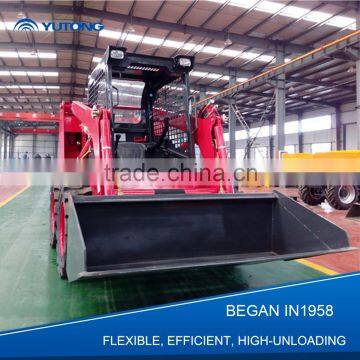

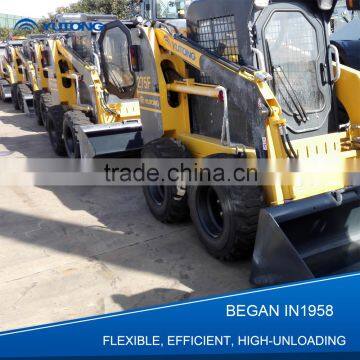

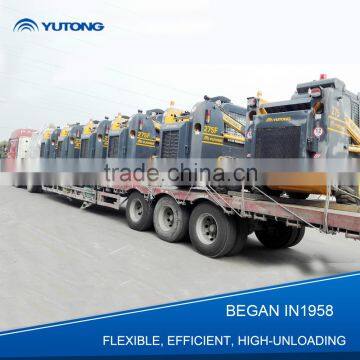

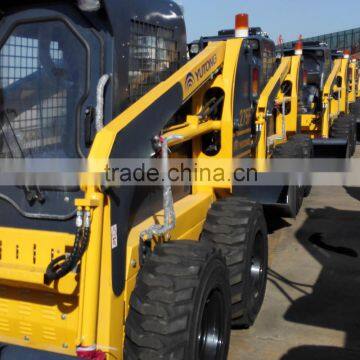

Rated Load 1 Ton 75hp Chinese Skid Steer Loader
Product Description
Specifications | | |
Rated operating capacity(kg) | 1000 | |
Tipping load(kg) | 1900 | |
Bucket capacity(m3) | 0.5-0.6 | |
Operating weight(kg) | 3400 | |
Max. travel speed(km/h) | 12 | |
Hydraulic pump flow(L/min) | 75 | |
Fuel tank capacity(L) | 90 | |
Tires | 12/16.5NHS | |
Overall dimensions(mm) | 3490×1820×2150 | |
Dimensions | ||
Height at maximum extension | 4070(mm) | |
Height to bucket hinge pin | 3100(mm) | |
Width with bucket(mm) | 1880 | |
Track width(mm) | 1500 | |
Wheelbase(mm) | 1085 | |
Ground clearance(mm) | 200 | |
Dump angle | 30° | |
Dumping height(mm) | 2450 | |
Rollback at ground | 26° | |
Angle of departure | 20° | |
Engine | | |
Model | Mitsubishi S4S | |
Net power | 75hp/2500rpm | |
Type | 4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine | |
Displacement(L) | 3.2 | |
Standard equipment | Deluxe enclosed operator cab | |
Hydraulic joystick controls | ||
Standard bucket | | |
Auxiliary hydraulic couplers | ||
Optional equipment | starting assist system for extreme cold weather | |
Cab fitted with a heater as standard | ||
Air conditioner | ||
2-speed transmission system | ||
High-flow hydraulic system | ||
Performance
| 1.MitsubishiS4S-DTengine, 4 strokes, naturally aspirated and water-cooling, all ensuring sufficient power. |
| 2.It is a drive system with the best compatibility. The imported engine boasts the features of low noise and low oil consumption, being reliable in performance and reaching Euro 3 emission standards. |
| 3.The vehicle frame adopts a compact structure design with high strength and heavy loading, and the thickened integrated chassis has improved the capacity of anti-vibration. |
| 4.While the vehicle body is small buthaving huge power, its 360 skidding and steering provides flexible manipulation and action. |
| 5.The drive system uses Saul duplex variable pump and Italian Wolff multi-way valve. The hydraulic pump directly connected to the engine not only improves the stability of speed control system, its huge flow also can ensure that 275 can assemble many other accessories. |
| 6.It employs the working device with heavy load. With only two control levers, operations such as traveling, steering, loading and unloading can be achieved in a fast and smooth manner. |
| 7.The automatic leveling system can ensure the efficient and safe performance of bucket in the process of lifting and descending, which is time-saving. |
| 8.The cab possesses comfortable driving space. While the ROPS and FOPS cabs are safe and reliable, the full- sealed cab is equipped with the air conditioner, and with windows in every direction, presenting wide view for the driver. |
| 9.Detachable back window is the emergency exit. |
| 10.It employs an efficient hydraulic system: full-hydraulic four-wheel drive that provides the most sufficient ground traction, making the service brake safe and reliable. |
| 11.The top pilot control valve and horizontal valve worldwide ensure that the vehicle can operate accurately even though in narrow working conditions. |
| 12.The engine with low-speed but high torque provides huge pulling force. |
| 13.The full-hydraulic brake system is safe and reliable. |
Our Services
| "12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using |
