API DTH Hammer Sub Female-Male
- 20000 Piece / Pieces per Month
- China Port
- L/C D/P D/A Credit Card PayPal
You May Like
-
API DTH Hammer Sub Male-Male
-
DTH Drill Sub / DTH Adapter
-
Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.26-29mm
-
Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.23-34mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.23-29mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.25-34mm
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | DTHSFM77/77-140-DTHSFM59/59-203 | Type | Other, DTH Sub Female-Male | |
| Material | Tungsten Carbide | Use | Other, Coal Mining |
Product Description
Our Company
KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.
Specifications
High strength steel with high fatigue strength and excellent wear resistance
Descripetion
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.
Product Technical Reference

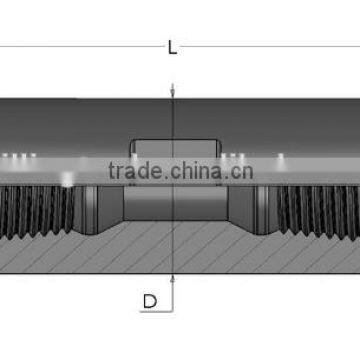

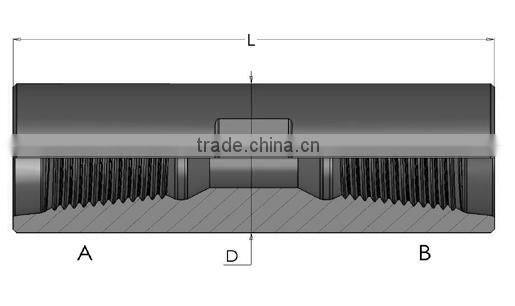

< DTH Sub Female-Male
| Part Number | A Thread | B Thread | Diameter A (mm) | Diameter A (inch) | Diameter B (mm) | Diameter B (inch) |
| 4148301570 | 2 3/8" API Reg | 2 3/8" API Reg | 77 | 3 | 77 | 3 |
| 4148301571 | 2 3/8" API Reg | 2 3/8" API Reg | 90 | 3 1/2 | 90 | 3 1/2 |
| 4148301572 | 2 3/8" API Reg | 2 3/8" API Reg | 102 | 4 | 102 | 4 |
| 4148301573 | 2 3/8" API Reg | 2 3/8" API Reg | 90 | 3 1/2 | 90 | 3 1/2 |
| 4148301574 | 2 3/8" API Reg | 2 7/8" API Reg | 95 | 3 3/4 | 95 | 3 3/4 |
| 4148301575 | 2 3/8" API Reg | 3 1/2" API Reg | 90 | 3 1/2 | 102 | 4 |
| 4148301576 | 2 3/8" API IF | 2 3/8" API Reg | 90 | 3 1/2 | 90 | 3 1/2 |
| 4148301577 | 2 7/8" API Reg | 2 3/8" API Reg | 90 | 3 1/2 | 90 | 3 1/2 |
| 4148301578 | 2 7/8" API Reg | 3 1/2" API Reg | 90 | 3 1/2 | 115 | 4 1/2 |
| 4148301579 | 3 1/2" API Reg | 2 3/8" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
| 4148301580 | 3 1/2" API Reg | 2 3/8" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
| 4148301581 | 3 1/2" API Reg | 2 7/8" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
| 4148301582 | 3 1/2" API Reg | 2 7/8" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
| 4148301583 | 3 1/2" API Reg | 3 1/2" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
| 4148301584 | 3 1/2" API Reg | 4 1/2" API Reg | 146 | 5 3/4 | 146 | 5 3/4 |
| 4148301585 | 4 1/2" API Reg | 3 1/2" API Reg | 146 | 5 3/4 | 115 | 4 1/2 |
| 4148301586 | F48x10 | F42x10 | 59 | 2 1/3 | 59 | 2 1/3 |
| 4148301587 | F48x10 | F48x10 | 59 | 2 1/3 | 59 | 2 1/3 |
| 4148301588 | F48x10 | 2" API Reg | 59 | 2 1/3 | 59 | 2 1/3 |
<
| Product Code and Brief Description | Length (mm) | Length (inch) | Wrench Flat (mm) | Wrench Flat (inch) | Weight (kg) |
| DTHSFM77/77-140 | 140 | 5 1/2 | 65 | 2 5/9 | 4 |
| DTHSFM90/90-140 | 140 | 5 1/2 | 65 | 2 5/9 | 5.5 |
| DTHSFM102/102-130 | 130 | 5 1/8 | 76 | 3 | 7.8 |
| DTHSFM90/90-144 | 144 | 5 2/3 | 65 | 2 5/9 | 5.5 |
| DTHSFM95/95-130 | 130 | 5 1/8 | 65 | 2 5/9 | 8 |
| DTHSFM90/102-120 | 120 | 4 5/7 | 95 | 3 3/4 | 10.5 |
| DTHSFM90/90-164 | 164 | 6 1/2 | 65 | 2 5/9 | 6.8 |
| DTHSFM90/90-154 | 154 | 6 | 65 | 2 5/9 | 6.5 |
| DTHSFM90/115-120 | 120 | 4 5/7 | 95 | 3 3/4 | 11 |
| DTHSFM115/115-219 | 219 | 8 5/8 | 95 | 3 3/4 | 12.5 |
| DTHSFM115/115-160 | 160 | 6 2/7 | 95 | 3 3/4 | 10.5 |
| DTHSFM115/115-160 | 160 | 6 2/7 | 95 | 3 3/4 | 10.8 |
| DTHSFM115/115-160 | 160 | 6 2/7 | 95 | 3 3/4 | 10.8 |
| DTHSFM115/115-160 | 160 | 6 2/7 | 95 | 3 3/4 | 10.5 |
| DTHSFM146/146-132 | 132 | 5 1/5 | 120 | 4 5/7 | 16.5 |
| DTHSFM146/115-235 | 235 | 9 1/4 | 95 | 3 3/4 | 19 |
| DTHSFM59/59-203 | 203 | 8 | 40 | 1 4/7 | - |
| DTHSFM59/59-203 | 203 | 8 | 40 | 1 4/7 | - |
| DTHSFM59/59-203 | 203 | 8 | 40 | 1 4/7 | - |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Packaging:Carton or Wooden Box
