Help CenterBewis BWM410-05 Voltage Single-axis Inclinometer
Related Products
-
BWM415 Bus Single-axis InclinometerNegotiableMOQ: 1 Set -
BEWIS BWM416-180-232 Digital Single-Axis InclinometerUS$ 130 - 180MOQ: 1 Set
-
Bewis BWM416-180-TTL Digital Single-Axis InclinometerUS$ 130 - 180MOQ: 1 Set
-
BWM417-180-232 Modbus Single-axis InclinometerUS$ 130 - 180MOQ: 1 Set
-
BWM417-180-485 Modbus Single-axis InclinometerUS$ 130 - 180MOQ: 1 Set

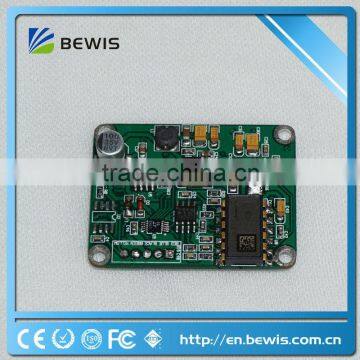

Designed by Bewis Sensing Technology LLC, BWM410-05 is a Voltage Single-axis Inclinometer
Applications:
1. the automatic tracking system of solar angle
2. four wheel positioning system
3. measuring car chassis
4. leveling of electric chair for blind
5. measuring direction of tilt
6. the apparatus of light level
7. imaging apparatus
8. satellite antenna positioning
| Electrical characteristic | |||||
| Parameters | Conditions | Min | Typical | Max | Units |
| Power supply | Unregulated |
9 | 12 | 35 | V |
Operating |
Non-loaded | 20 | 50 | 60 | mA |
| Output load | max | 500 | kΩ | ||
Operating |
-40 | +85 | ℃ | ||
Sore |
-55 | +100 | ℃ | ||
| Performance | |||
| parameters | conditions | BWM410 | unit |
| Measuring range | ±0~±90 | ° | |
| Measuring axis | X | ||
| Zero point output | 2.5(5) | V | |
Zero temperature drift |
±0.005 | °/℃ |
|
Full scale output |
0~5V(0-10) | V | |
Frequency response |
100 | Hz |
|
| Resolution | 0.002 | ° |
|
| Accuracy | Indoor | 0.02 | ° |
| Shock resistance | 2000g,0.5ms,3times/axis | ||
| Weight | 150g (package excluded) | ||

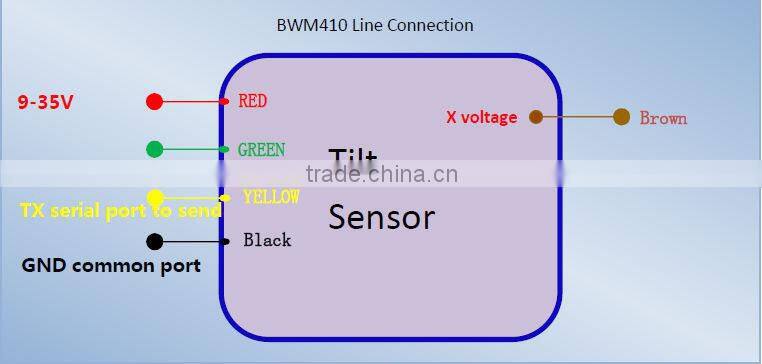

| Electrical interface | ||||||||||
Line Color |
RED | BLUE | BLACK | GREEN | YELLOW | Brown | Orange | White | Purple | Grey |
BWM410 |
VCC |
NC | GND | RS232 |
RS232 |
V X OUT |
V Y OUT |
NC | NC | NC |
Our products are completely independent R & D and manufactured. Our research and development group
gather qualified talents of MEMS sensor field. And research staff accounts for 50% of the total number of
those talents. We also set up the inertial sensor Engineering Technology Research Center which is leaded
by 973 chief scientists. The members of Center have undertaken major national science and technology
projects many times including major national S&T program; National High-tech R&D Program of China
(863 Program); Innovation and Technology Commission (ITF-UIM-151); Study on semiconductor particle
detectors (state plan). The most of core team members own the experience of technology development and
research in foreign top micro nano electronics laboratory. The number of graduate education employees
account for 70%. 6 staff of R & D group are doctors who have experience of learning or working abroad.
Q: What are the merits of your products?
A: We have more than 10 years’ experience of research and development sensor. Our products have been exported totechnology developed countries such as Europe, America and Japan. Our products have price advantage compared with foreign products.We are able to deliver the goods promptly and some goods are in stock, most of goods can be delivered in three workdays.
Q: How about the quality of your products?
A: Our Company has established research and development system dominated by international advanced IPD on the basis of inheritance and practice and insists on process change and management optimization. Benefiting from this system, the company can export products which can stand the market test and create profits for clients. We also establish product identification and testing center. To provide clients safer and more reliable products, we carry out extensive and further cooperation with the international leading research institutions and instrument manufacturers and use omni directionof user environments to have rigorous test of products before release. The company owns the country’s highest precision three-dimensional turntable to test our products and ensure product accuracy and resolution to meet the most demanding users.
Q: How much is your product IP protection level?
A: Our product IP protection level is IP67, IP6X means that no dust meets the standard requirements. IPX7 means defend socking. Socking into the water under define stress and time,the water quantity which will cause damage, should not allowed to enter. Detailed description will be seen in National Standard 4208. This level is high waterproof grade. Our products are at a depth of one meter environment, test one hour without any exception.
Q: Can your products operate normally in severe environment?
A: Our company is specialized in industrial product development research. All aspects of product protection, high and low temperature aging and the reliability indexes are rigorously tested. At present, our products can stably operate in various fields of industrial control, including the underground non digging machinery, underwater robots, Antarctic survey, oil drilling etc.
Q: How to deliver?
A: By courier like DHL,UPS, Fedex,TNT,EMS.
Q:Where does your factory locate, is it convenient to visit?
A:Our factory locates in Cixi city, Zhejiang province, very close to the high-way train station and the high-way entrance, only 40 minutes to Ningbo Lishe Airport, we can provide business vehicle to take you coming and departure.
Q: What’s your Payment term?
A: T/T or L/C or Paypal or Western union
30% deposit,the 70% balance before shipping!
