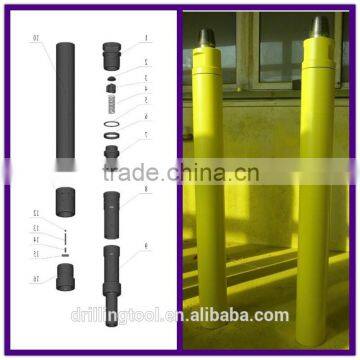

Reverse Circulation DTH Hammer and Bit
- 35000 Set / Sets per Month
- FOB TianJin
- T/T L/C D/P D/A Credit Card PayPal
- ZY SUPER HARD PCD Twist Drill Bits
- ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
- BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- hard formation core drill bits, BQ NQ HQ PQ NTW HTW, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- impregnated diamond core drill bit, BQ NQ HQ PQ, wireline core barrels, coring bits, hard formation, deep hole rock core recovery
- TIDEWAY Finger Joint cutter Finished Sandblast T.c.t Single Piece Finger Joint Carbide Shaper Cutters
Product Details
Place of Origin: | Shandong, China | Brand Name: | Miroc | Model Number: | High pressure dth hammers and button bits, All type |
Type: | Other, dth hammers and button bits, dth hammers and button bits | Material: | Other, Tungsten Carbide, Tungsten carbide | Use: | Other, tunneling/underground constrction/quarry |
Product Description
WhatsApp: 0086-150 0127 1163
SKYPE: xu.ruofei1
Specification
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
dth rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground.
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Products Information
Part Number | Product Code and Brief Description | Drilling Diameter (mm) | External Diameter (mm) | Working Pressure (Mpa) | Air Consumption (m3/min) | Torque (N.m) | Impact Frequency (n/min) | Drill Rod Connection Thread | Bit Shank |
4148301629 | DTHF335 | ø90 - 105 | ø85 | 0.7 - 2.1 | 4.2 - 11.7 | 475 | ≥800 | Inside API 2 3/8" | DTHF335-95/100 |
4148301630 | DTHF345 | ø110 - 130 | ø105 | 0.7 - 2.1 | 5.7 - 14.2 | 600 | ≥800 | Inside API 2 7/8" | DTHF345-115/127 |
4148301631 | DTHF355 | ø135 - 155 | ø124 | 0.8 - 2.1 | 6.5 - 19.3 | 791 | 810 - 1200 | Inside T 91-3 | DTHF355-140/152 |
4148301632 | DTHF365 | ø160 - 200 | ø154 | 0.8 - 2.1 | 9 - 18 | 950 | 600 - 1100 | Inside API 4 1/2" | DTHF365-165/178/195 |
4148301633 | DTHF385 | ø200 - 254 | ø190 | 0.8 - 2.1 | 12 - 30.8 | 1040 | 660 - 1208 | Inside API 4 1/2" | DTHF385-203/216/230/254 |
4148301634 | DTHF3105 | ø254 - 311 | ø250 | 0.8 - 2.4 | 15 - 34 | 1260 | 600 - 1230 | Inside API 4 1/2" | DTHF3105-254/273/305 |
4148301635 | DTHF3125 | ø311 - 360 | ø270 | 0.8 - 2.4 | 20 - 37.8 | 1250 | 600 - 1150 | Inside API 4 1/2" | DTHF3125-311/355/381 |
