Home > Products > net overedging machine > GN20-6 fishnet sewing machine
GN20-6 fishnet sewing machine
- 300 Unit / Units per Month
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, fish net machine | Place of Origin: | Hebei, China |
Brand Name: | YOUTIAN | Model Number: | GN20-6 | Stitch Formation: | Overlock Stitch |
Mechanical Configuration: | Other | Max. Sewing Speed: | 1400r/min | Max. Sewing Thickness: | 14mm |
Stitch Length: | 7-16mm | Power: | 550W | Overall Dimensions: | 51/51*33.5cm |
Feed Mechanism: | Other, feed dog |
Product Description
Specifications
1,GN20-6 fishnet sewing machine2,over-edge width 10-15mm
3,three thread for overeding rope and net
4,stitch range 7-16m
1,GN20-6 fishnet sewing machine
2,over-edge width 10-15mm
3,three thread for overeding rope and net
4,stitch range 7-16m

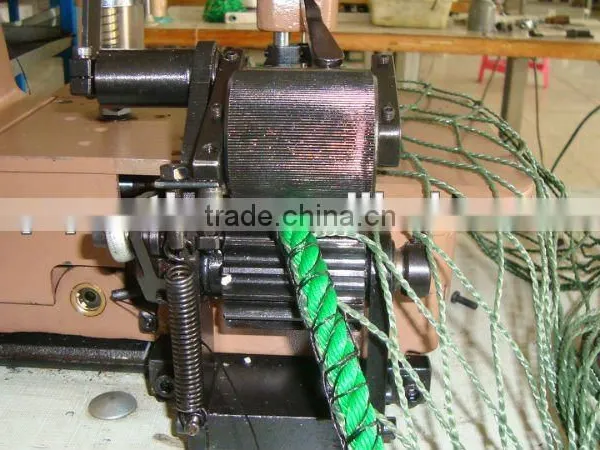

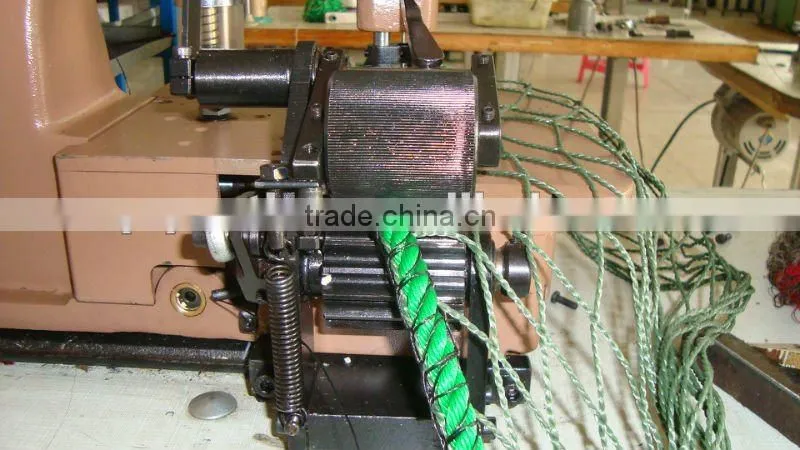

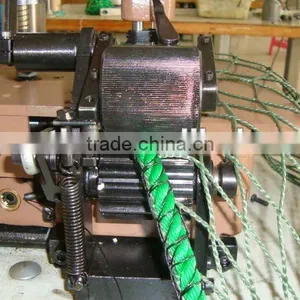

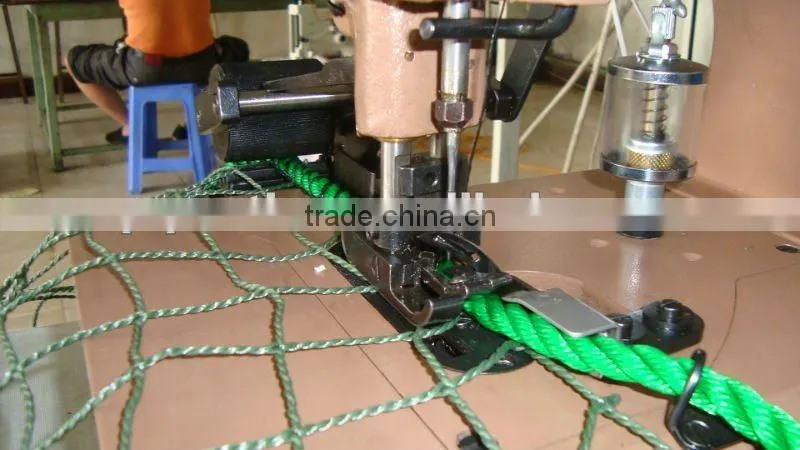

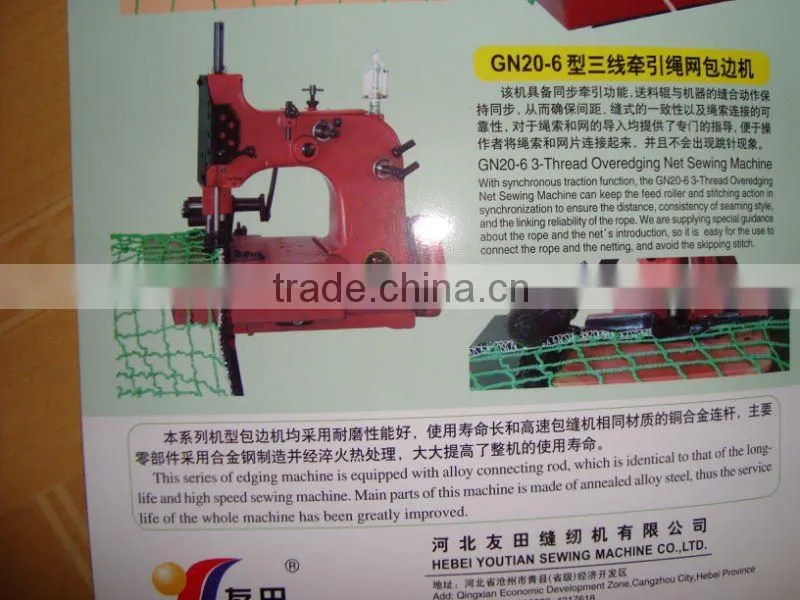

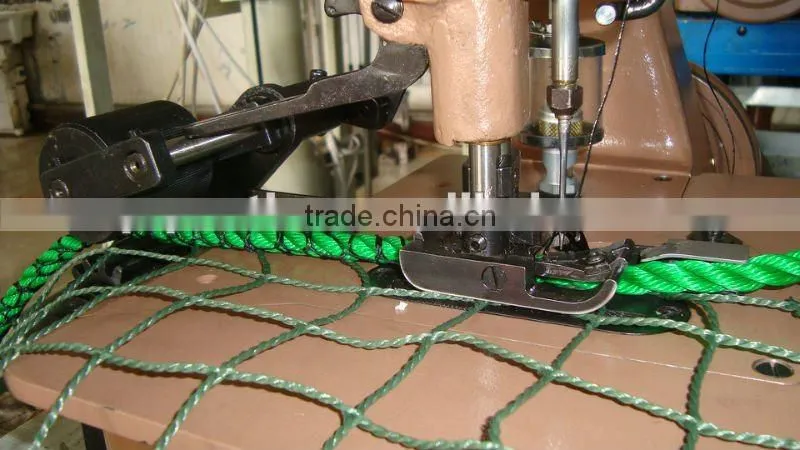

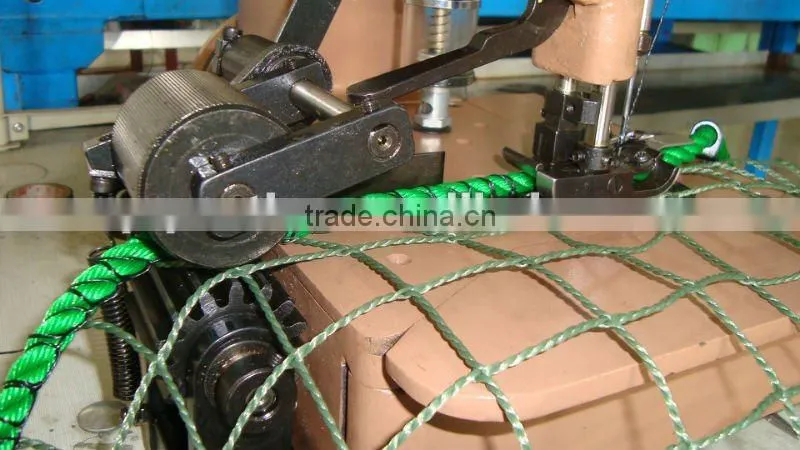

GN20-6 3-thread overedging net sewing machine with synchronous traction function, the GN20-6 3-Thread Overedging Net Sewing Machine can keep the feed roller and stitching action in synchronization to ensure the distance, consistency of seaming style, and the linking reliability of the rope. We are supplying special guidance about the rope and the net's introduction, so it is easy for the use to connect the rope and the netting, and avoid the skipping stitch.
This series of edging machine is equipped with alloy connecting rod, which is identical to that of the long life and high speed sewing machine. Main parts of this machine is made of annealed alloy steel, thus the service life of the whole machine has been greatly improved.
technicians
Stitch type | 502 |
Stitch range | 7-16mm |
Thread type | polypropylene |
Needle | GN20-230/26# |
Overedging width | 15mm(10mm available with special order) |
Thickness of material | 14mm |
Max.speed | 1400rpm |
Motor power | 370W |
