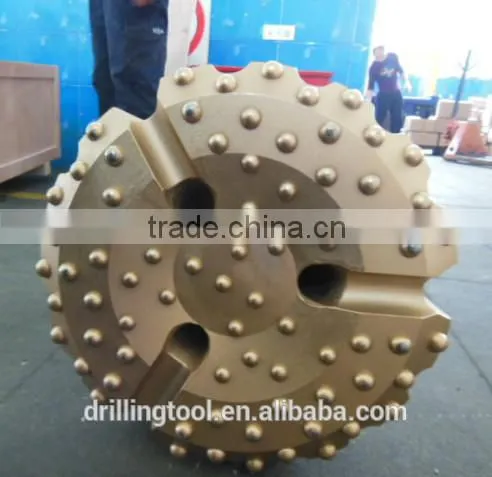

DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling

DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling thumbnail-1
DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling thumbnail-2
DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling thumbnail-3
DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling thumbnail-4
DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling photo-1

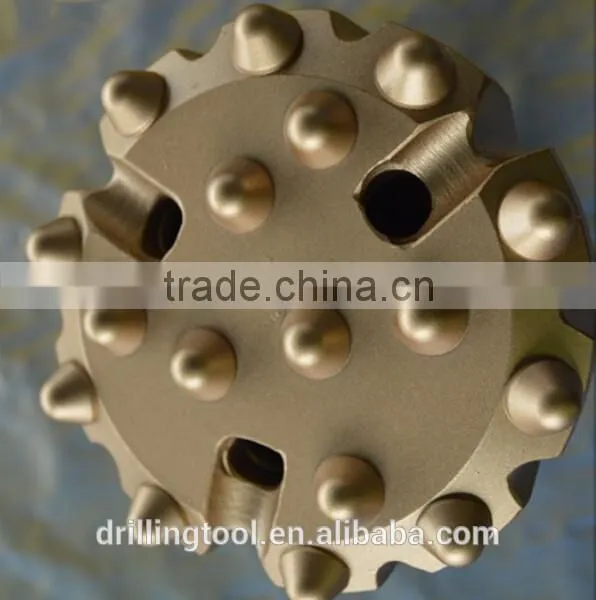

DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling photo-2

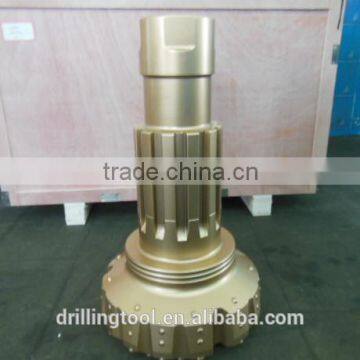

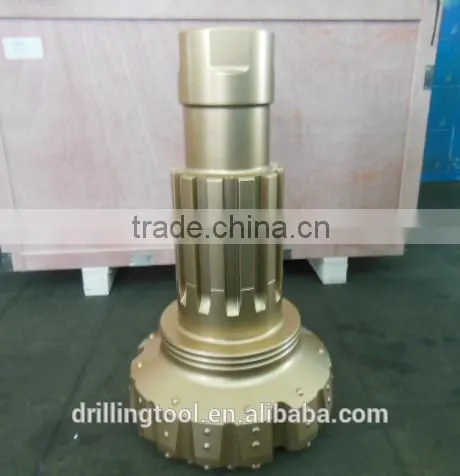

DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling photo-3

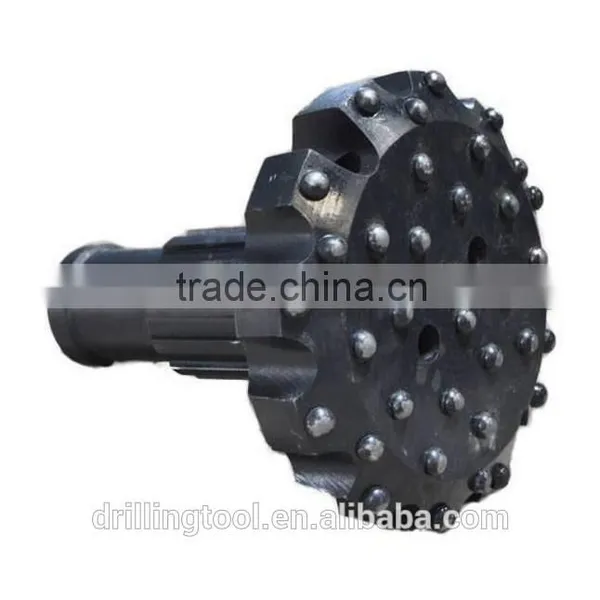

DTH3120 Down The Hole Hammer Drill Bit With Carbide Insert for 12" DTH Hammer Water Well Drilling photo-4
US$ 100 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Miroc
Model Number:
hammer drill bits, All type
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB TianJin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Miroc
Model Number hammer drill bits, All type
Type Other, dth bit
Material Tungsten Carbide
Use Other, Water well drilling



WhatsApp: 0086-150 0127 1163

SKYPE: xu.ruofei1



Specification



Dth rock drill bits are in different sizes ranging from 3" to 12".

Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions





dth rock drill bits have four kinds of button type


1. Spherical button  : good wearing resistance, suited to hard ground, abrasive  to very abrasive.

2. Parabolic button  : fast  penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.

3. Conical button     : fast penetration, suited for smaller diameter bits, suited for  all non-abrasive ground types.

4. Ballistic button     : fast penetration,suited to soft rock, suitable for non abrasive ground



Applications of  DTH Bit



• Underground mining
• Tunneling

•  Quarry benching operations



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



 DTH bit for 12" DTH Hammer


Dia.(mm)

Qty.× Button Dia.(mm)

Qty.Air Holes

Weight

(kg)

Outer

Front

Back

311

15×18

15×18+15×16

12×12

3

140

315

18×18

9×18+15×18+9×16

9×16

3

145

320

18×18

9×18+15×18+9×16

9×16

3

190

333

18×19

9×18+15×18+14×16

6×12+6×16

3

200

350

15×19

9×19+15×19+15×16

12×12

3

210

380

18×18

12×18+18×18+21×16

9×14

3

235







Product Code and Brief Description

Flushing Holes

Diameter (mm)

Weight (kg)

Gauge Buttons       ( No.x mm)

Front   Buttons       ( No. x mm)

DTH65PQ

1

68 - 72

1.5

4 x12

3 x 12

DTH75PQ

3

75 - 77

2.4

5 x 12

3 x 12

DTH76PQ

2

76 - 78

2.5

5 x 12

3 x 12

DTH76-78

2

78 - 82

2.6

5 x 12

3 x 12

DTH80PQ

3

82 - 84

3

5 x 12

6 x 12

DTH90A

3

90 - 95

3.6

6 x 14

4 x 12

DTH80XD-90

3

90 - 95

3.4

6 x 12

4 x 12

DTH80-II-80

3

80 - 82

3

5 x 12

4 x 12

DTH90B

3

90 - 95

3.8

6 x 14

4 x 12

DTH90T1

2

90 - 95

3.6

6 x 14

1x12,3x12

DTH90T2

2

90 - 95

3.8

6 x 14

4 x 12

DTH90T3J

3

90 - 95

3.6

6 x 14

4 x 12

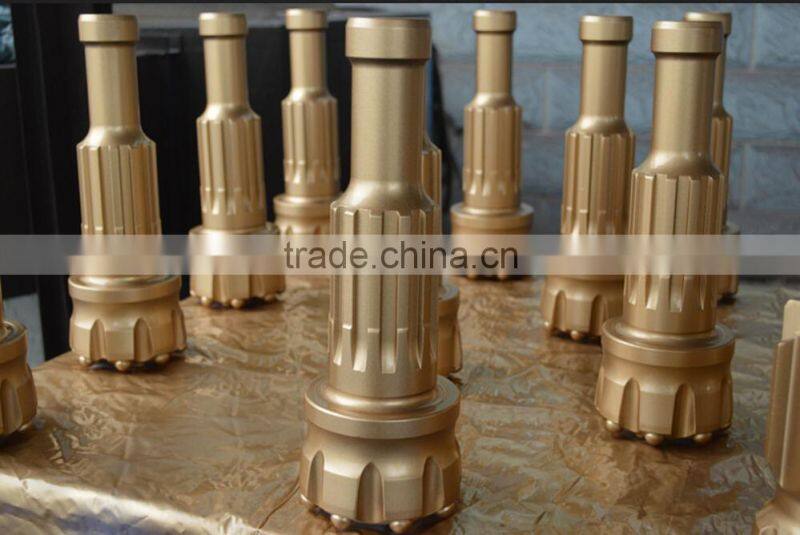

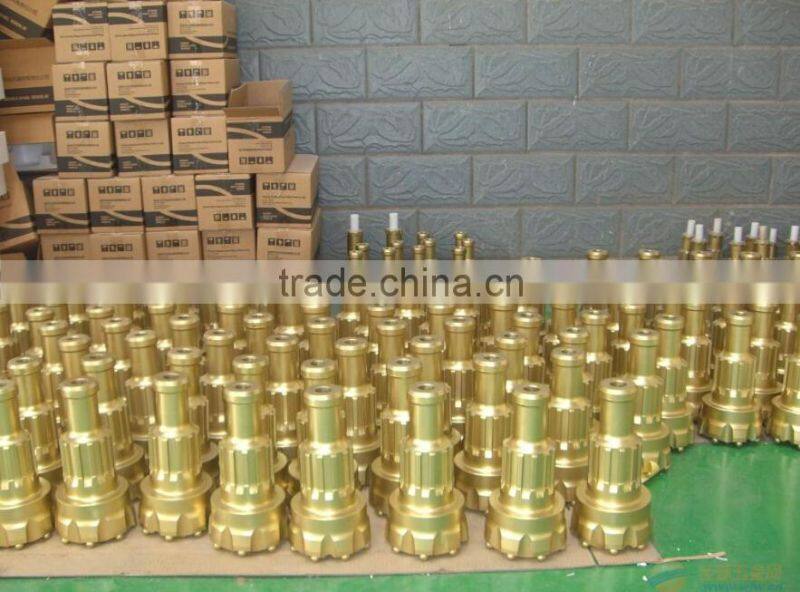

DTH3120 Down The Hole Hammer Drill Bit with Carbide Insert for 12" DTH Hammer Water Well DrillingDTH3120 Down The Hole Hammer Drill Bit with Carbide Insert for 12" DTH Hammer Water Well Drilling
