Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit

Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit thumbnail-1
Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit thumbnail-2
Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit thumbnail-3
Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit thumbnail-4
Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit photo-1

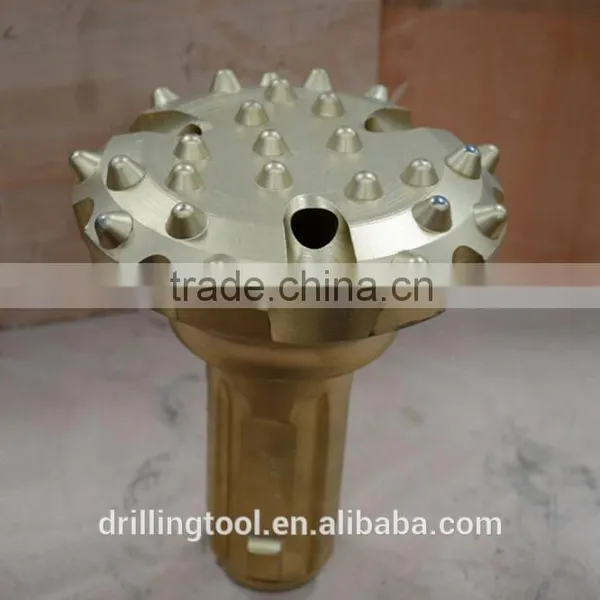

Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit photo-2

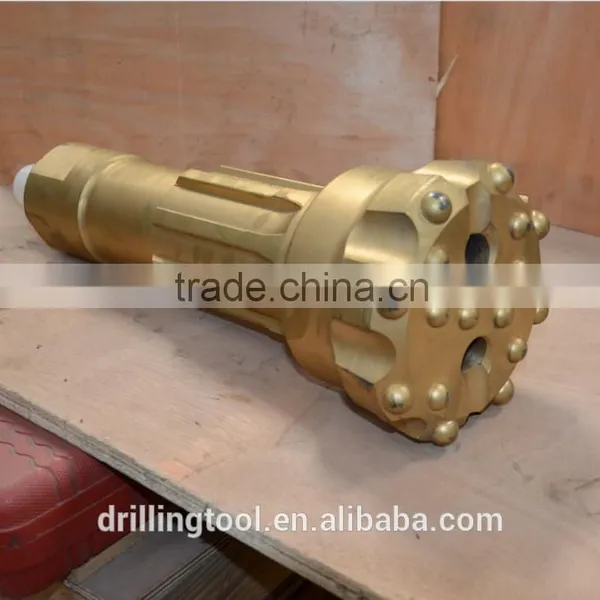

Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit photo-3

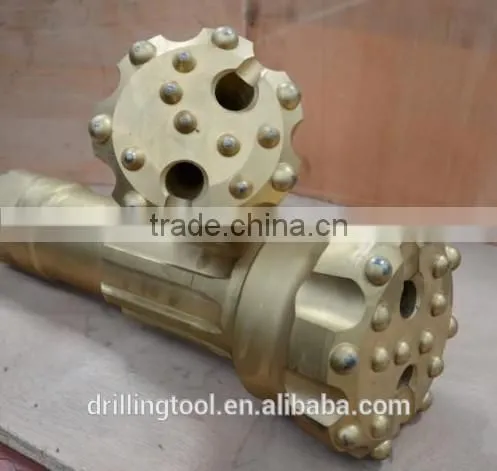

Lower Pressure DTH Drill Bit / Down the Hole DTH Bit / In The Hole Drill Bit photo-4
US$ 100 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Miroc
Model Number:
QL60, SD40-80, CIR90, DTH340 ETC
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB TianJin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Miroc
Model Number QL60, SD40-80, CIR90, DTH340 ETC
Type Other, drill bit
Material Other, Tungsten Carbide, Tungsten Carbide
Use Other, Tunneling,Mining,Quarrying,Construction

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths

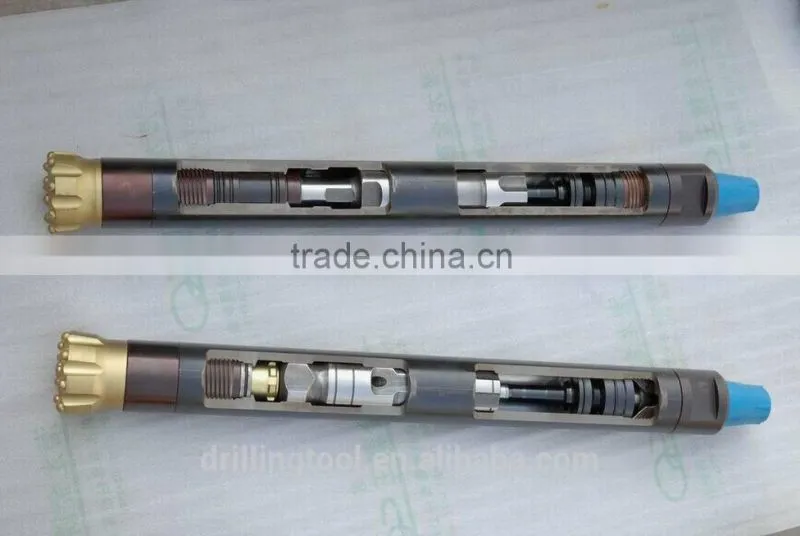

Lower pressure DTH drill bit / down the hole DTH bit / In The Hole Drill BitLower pressure DTH drill bit / down the hole DTH bit / In The Hole Drill Bit

Lower pressure DTH drill bit / down the hole DTH bit / In The Hole Drill Bit

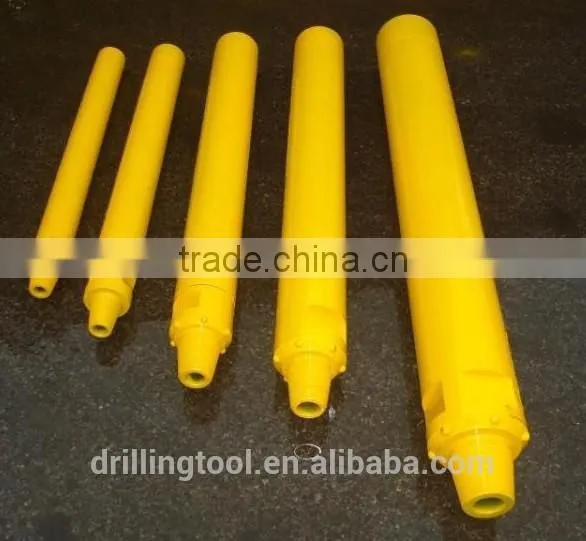

 Technical Manual of DTH Hammer



  3 Inch 3.5 Inch 4 Inch 5 Inch 6 Inch 8 Inch 12 Inch
Drilling diamter(mm) Φ82-85 Φ90-93 Φ105-130 Φ130-152 Φ152-305 Φ203-305 Φ302-508
Hammer length(mm) 867 908 1052 1387 1450 1551 1934
External diamerer(mm) Φ71 Φ81 Φ92 Φ114 Φ136 Φ181 Φ275
Weight(kg) 19 21.8 38 69 126 277 642
Working pressure(Mpa) 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1
Air consumption(m3/min) 3-12 4.3-14.2 3.5-18 5.7-18 8.5-25 12-31 14-45
Torque(N.M) 150 205 304 590 822 1560 2410
Lmpact frequenc(Time/Min) ≥800 950-1500 ≥800 810-1470 820-1475 860-1510 980-1446
Connection thread inside 48.8x4.2 outside API 2-3/8" inside API 2-3/8" outside API 3-1/2" outside API3-1/2 outside API4-1/2" outside API6-5/8"
Connection thread Φ47-6 Φ53-8 Φ64-8 Φ84-8 Φ99.5-8 Φ128-10 Φ184-8
Bit shank

3"-

85

3.5"-

90

4"-

105/115/130

5"-

130/140/152

6"-

152/165/178/194/203/216/230/254/305

8"-

152/165/178/194/203/216/230/254/305

12"-

302/311/330/357/381/444/483/508

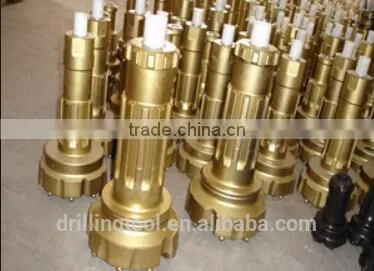

 Lower pressure DTH drill bit / down the hole DTH bit / In The Hole Drill Bit

Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
