Help CenterT38 T45 T51 Coupling Sleeve For Rock Drill Tools
Related Products
-
R28 150mm Length Coupling Sleeve for Drifting and TunnelingUS$ 15 - 20MOQ: 1 Piece -
R32 Coupling Sleeve / Bit Coupling for Long Hole Rock DrillingUS$ 20 - 25MOQ: 1 Piece
-
High Quality R38 T38 T45 T51 Coupling Sleeves for Bench and Production MiningUS$ 20 - 25MOQ: 1 Piece
-
Crossover Coupling R25, R28,R32,T38, T45, Rock Drill ToolsUS$ 15 - 30MOQ: 1 Piece
-
T38 190mm Threaded Rock Drill Coupling for Benching and Long Hole DrillingUS$ 25 - 30MOQ: 1 Piece
Couplings sleeve are used to well connect the shank adapter to the drill rods
or well contact two extensionrods for transmitting energy. It has standard type
coupling and crossover coupling.
Basic Information
Product Name: |
Thread coupling sleeve |
Thread |
R25,R28,R32,R38,T38,T45,T51 |
Diameter |
35mm-77mm (or 1 3/8 inch to 3 inch) |
Length |
150mm-235mm (or 6 inch to 9 1/4 inch) |
Material: |
High strength alloy steel bar |
Type |
full-bridge, semi-bridge etc. |
Color |
Green, Gold, Black or based on customer requirements. |
MOQ: |
No MOQ required for testing and trial order |
Applications
R25, R28, R32, R38
Used in drifting and tunneling.
T38, T45, T51
Used in benching and long hole drilling.
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Coupling Sleeve | ||||||
| Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | ||
| R25 Coupling Sleeve | ||||||
| 150 | 6 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
| 155 | 6 1/9 | 44 | 1 3/4 | R25 | 1.0 | 4148300430 |
| 160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
| R28 Coupling Sleeve | ||||||
| 150 | 6 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
| 170 | 6 2/3 | 55 | 2 1/6 | R28 | 2.0 | 4148300484 |
| R32 Coupling Sleeve | ||||||
| 150 | 6 | 44 | 1 3/4 | R32 | 1.0 | 4148300646 |
| 160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
| R38 Coupling Sleeve | ||||||
| 170 | 6 2/3 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
| 190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
| T38 Coupling Sleeve | ||||||
| 190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
| T45 Coupling Sleeve | ||||||
| 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3.0 | 4148300881 |
| 210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
| T51 Coupling Sleeve | ||||||
| 225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
| 225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
| 235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
| 235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |

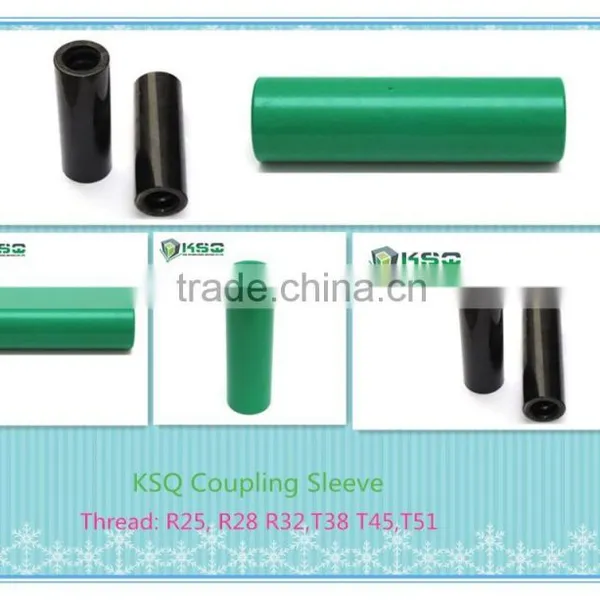

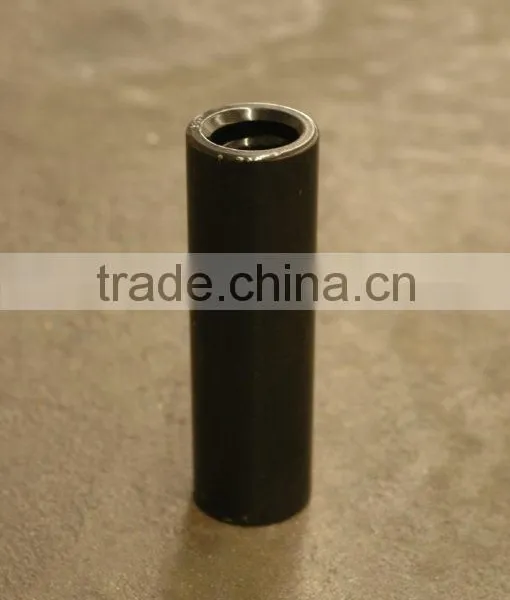

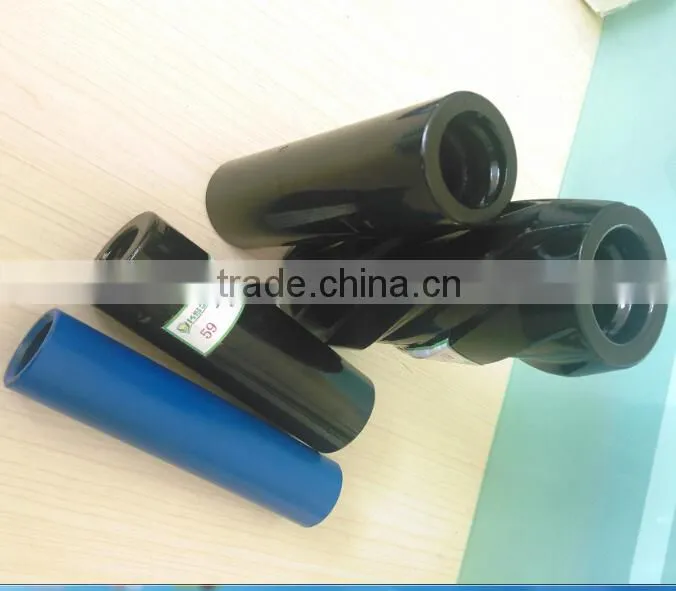

Product Pictures:
Packaging & Shipping
1. 10pcs/Carton or wooden box
2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Package pictures
