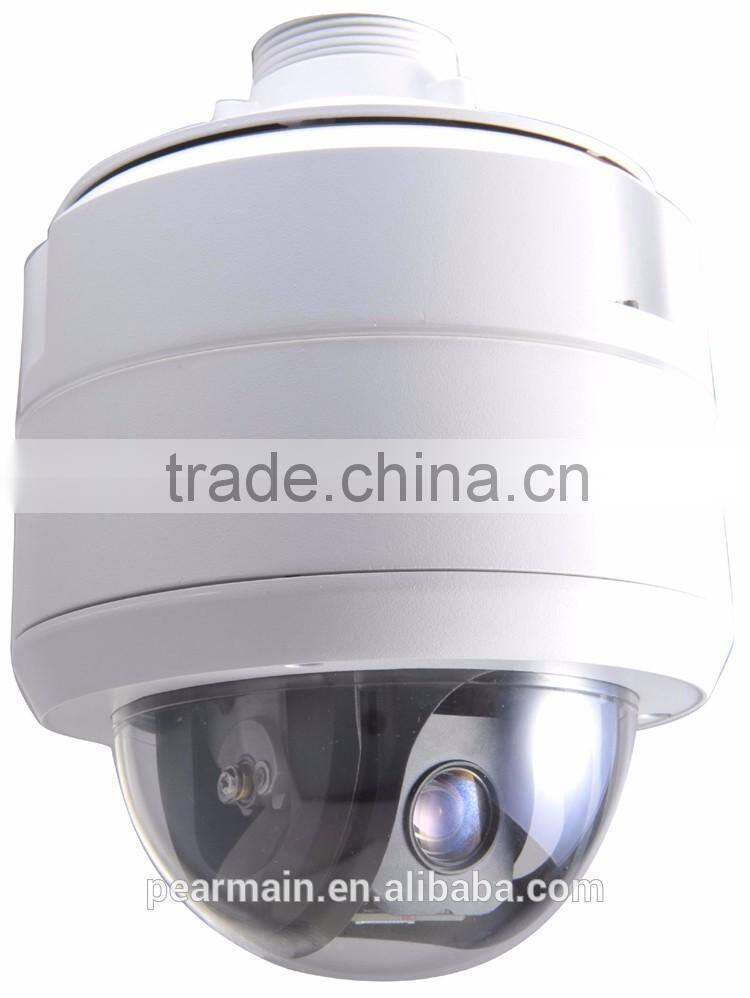

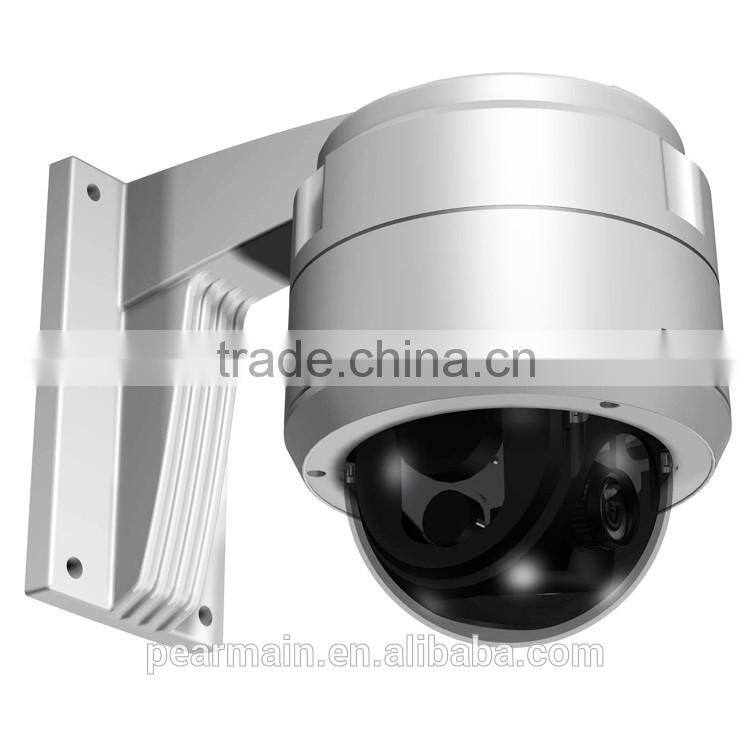

Help Center530TVL IP66 Waterproof Outdoor High Speed Dome Camera for Security Camera System
Related Products
-
Pearmain CCTV Surveillance High Speed Dome Outdoor Camera With 530TVL, 36*optical Zoom,WDRUS$ 1 - 9MOQ: 1 Unit -
480TVL IP66 Waterproof Outdoor High Speed Dome CameraUS$ 1 - 9.9MOQ: 1 Unit
-
Security Camera/high Speed Dome Camera 480TVLUS$ 1 - 9MOQ: 1 Unit
-
530TVL IP66 Ptz Cameras/high Speed Dome CameraUS$ 1 - 9.9MOQ: 1 Unit
-
Waterproof Security Camera Outdoor Middle Speed Dome Camera/ptz Quality ChoiceUS$ 1 - 9.9MOQ: 1 Unit
Introduction Features
It can set address & protocol in speed dome OSD menu
Powerful Sony 10x12 Day/night module, 1/4” Ex-view HAD CCD inside, 530TVL.
Remote update flash of speed dome by RS485 bus
Automatically identify PEAMRAIN protocol or PELCO D/P protocol
Automatically identify SANYO, SONY, HITACHI, CNB series etc. camera module.
Powerful OSD menu for setup of Programmable Functions
With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene at any time.
Built-in linear power for anti-surge and anti-Lightning protection
Preset position storage function, it can save maximum 256 preset.
8 cruise tours, every tour can call 32 preset.
4 Pattern tours, to save the scan route by joystick.
1 automatic scan, the scope of two limits can be scanned gradually, the scanning steps are optional.
Automatic recover to movement before power failure.
Time start-up function, to start movement in time table have been set.
Power-up action, preset, cruise tour, pattern tour, auto scan, etc. available for it.
Park action, preset, cruise tour, pattern tour, auto scan, etc. available
360° continuous panning.
-5°~90° tilting rotation, automatic flip function, continuous tilting between -5°to 185°.
Privacy masking function, Up to 24 Zones, 8 Zones Masked Simultaneously in One Camera Image .
Limit setting, to set the pan or tilt movement in a scope.
On-Screen display: Compass, Pan, Tilt, Zoom ratio and temperature
Parameter Description
Specifications for Pan-tilt:
Address |
0~255 |
Pan range |
360°Continue |
Tilt range |
0°~90° Flip |
Manual speed Pan |
0.05~240°/Sec |
Manual speed Tilt |
0.05~180°/Sec |
Preset speed |
240°/Sec |
Preset accuracy |
±0.50° |
Preset |
256 |
Remote firmware updating and setup |
to update firmware by RS485, to set ID by RS485 |
Cruise Tours |
8 Programmable(Dwell time speed preset point) |
Speed setup for cruise tour |
Yes |
Pattern Tours |
4 Programmable |
Auto Scan |
1 Programmable (355° scan ) |
Alarm |
Optional, 4 inputs, 2 outputs |
Temperature setup and display |
Temperature alarm & display on screen |
Time adjustment |
to adjust Time by broadcasting |
Date/Time setup and display |
Date/time display on screen and modify |
Timer Programming |
timer action |
Integrate multi-protocol |
Pelco_D/P, PEARMAIN, Pelco C (optional) |
Protocol Automatic identify |
Pelco_D/P, PEARMAIN |
Total working time recording |
to record total working time and time exceed limit |
Home position |
Yes, preset, cruise tour, pattern tour, auto scan, etc. available |
Password protection |
Yes |
Long-focus speed-limited |
Yes |
Broadcasting address |
Yes |
Intelligent power-off memory current setting and state |
Yes |
anti-surge and anti-Lightning protection |
Yes |
OSD menu operation |
Yes |
Supporting camera |
Automatic identify(Sony, Hitachi , Sanyo, LG, CNB ) |
Camera menu operation |
Yes |
Camera character programming |
20 character |
Privacy masking |
Yes |
Ingress Protection IP66 |
Yes |
Operating Temperature |
–20℃~55℃ |
Humidity |
0%~90% (Non condensing) |
Heater operate |
(-5)℃ on +5℃ off |
Power |
24VAC±25%,3A ,60Hz/50Hz |
Consumption |
heater off 6W heater on 11W |
communication |
RS485 (+/-) or Manchester |
Connection |
BNC cable |
Camera
Image Sensor |
1/4" Ex-view HAD CCD |
"Pearmain Electronics Co., Ltd" was founded in 1996, which is a professional surveillance products provider owing the ability of R&D, producing, marketing and service. Pearmain has a complete production line and endeavors itself to providing our customers with entire video surveillance system solutions.
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher. Our product compatibility enabled us to offer second development port or SDK for interconnection and communication from the 3rd party equipment or platform from almost 70 companies.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
