1-20 Layers 0.5-8.5mm copper thickness pcb pools
- 50000 Piece / Pieces per Month
- Shenzhen/HongKong
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | RayMing | Model Number: | Rigid PCB-146 |
| Base Material: | FR-4 | Copper Thickness: | 1-6OZ | Board Thickness: | 0.2-5.0mm |
| Min. Hole Size: | 0.2mm | Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.1mm |
| Surface Finishing: | HASL |
Product Description
Specifications
1.MOQ is 1 PCS.2.Certification:UL,ISO9001,ISO14001,nqa.
3.pcb pools
4.Competitive price,factory sale

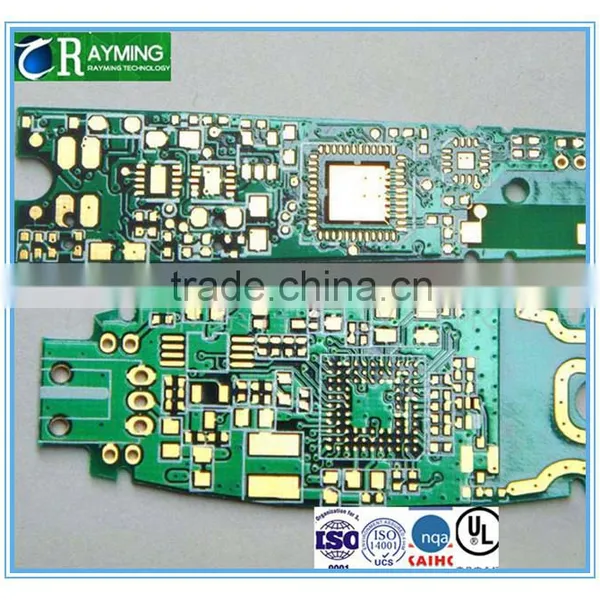

1-20 Layers 0.5-8.5mm copper thickness pcb pools .
Rigid PCB product capacity.
Items | Mass | Prototypes |
Layers | 1-8 Layers | 1-20 Layers |
Max. Panel Size | 600*770mm( 23.62"*30.31") | 600*770mm(23.62"*30.31") 500*1200mm(19.69"*47.24") |
Max.Board Thickness | 8.5mm | 8.5mm |
Min. Board Thickness | 2L:0.3mm | 2L:0.2mm |
4L:0.4mm | 4L:0.4mm | |
6L:0.8mm | 6L:0.6mm | |
Min Inner Layer Clearance | 0.1mm(4mil) | 0.1mm(4mil) |
Min Line width | 0.1mm(4/4 mil) | 0.075mm(3/3 mil) |
Min Line space | 0.1mm(4/4 mil) | 0.075mm(3/3 mil) |
Min.Hole Size | 0.2mm(8mil) | 0.15mm(6mil) |
Min plated hole thickness | 20um(0.8mil) | 20um(0.8mil) |
Min Blind/Buried hole size | 0.2mm(8mil) | 0.2mm(1-8layers)(8mil) |
PTH Dia. Tolerance | ±0.076mm(±3mil) | ±0.076mm(±3mil) |
Non PTH Dia. Tolerance | ±0.05mm(±2mil) | ±0.05mm(±2mil) |
Hole Position Deviation | ±0.05mm(±2mil) | ±0.05mm(±2mil) |
Heavy Coppe | 4OZ/140μm | 6OZ/175μm |
Min S/M Pitch | 0.1mm (4mil) | 0.1mm (4mil) |
Soldermask colour | Green,black,Blue,White,Yellow,Red | Green,black,Blue,White,Yellow,Red |
Silkscreen colour | White,Yellow,Red,Black | White,Yellow,Red,Black |
Outline | Routing,V-Groove, Beveling punch | Routing,V-Groove, Beveling punch |
Outline Tolerance | ±0.15mm ±6mil | ±0.15mm (±6mil) |
Peelable mask | Top,bottom,double sided | Top,bottom,double sided |
Controlled Impedance | +/- 10% | +/- 7% |
Insulation Resistance | 1×1012Ω(Normal) | 1×1012Ω(Normal) |
Through Hole Resistance | <300Ω(Normal) | <300Ω(Normal) |
Thermal Shock | 3×10sec@288℃ | 3×10sec@288℃ |
Warp and Twist | ≤0.7% | ≤0.7% |
Electric Strength | >1.3KV/mm | >1.4KV/mm |
Peel Strength | 1.4N/mm | 1.4N/mm |
Solder Mask Abrasion | >6H | >6H |
Flammability | 94V-0 | 94V-0 |
Test Voltage | 50-330V | 50-330V |
PCB or PCBA files requests.
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us
if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary.
