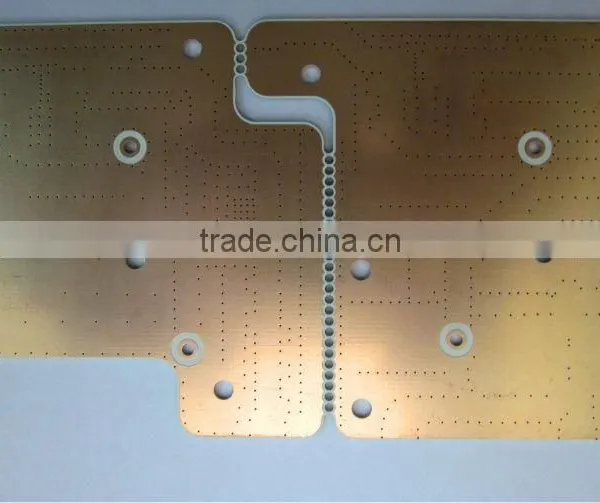

2 Layer Green Solder Mask PCB Over Thick PCB Plating Gold

Name: 2 Layer Green Solder Mask PCB Over Thick PCB Plating Gold
Brand: RayPCB
Availability: InStock

FOB Price

US$ 1 - 1.5 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

we are PCB maker of more than 10 years of experience.

PRODUCTIVE CAPABILITY OF Rayming

ITEM	PRODUCTIVE CAPABILITY
Layer	1-24
Produces Type	HF(High Frequency)& buried ,blind board, Impedance controlled board ,HDI board ,BGA Thicker Copper (Up to 10 OZ)board
Material	FR4(Shengyi, ITEQ, Nanya ), Rogers, Telflon etc. aluminum,Polyimide
Finished Surface	HASL, lead-free HASL, ENIG(Immersion Gold), Immersion Tin, Immersion Silver, Hard Gold, Plating Gold, Gold Finger, OSP
Minimum Line Width/Space	3/3mil
Minimum Hole Size	0.15mm(Mechanical Drill); 0.1mm(Laser Drill)
Minimum Annular Ring	3mil
Max Copper Thickness	10 OZ
Max Production Size	700×1200mm
Board Thickness	D/S: 0.2-7.0mm; Multilayers:0.40-7.0mm
Plugging Vias Capability	0.2-0.8mm
Board Thickness Tolerance	Thickness less than 1.0mm:+/-0.1mm; 1.0mm--2.0mm:+/-10%; Thickness more than 2.0mm:+/-8%
Hole Size Tolerance	PTH:+/-3mil; NPTH:+/-2mil
Certificate	ISO9001:2008, RoHS, UL certificate, ISO14001
