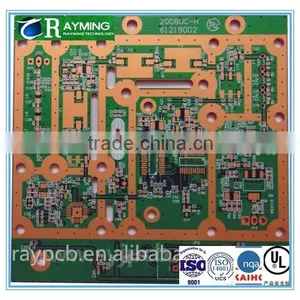

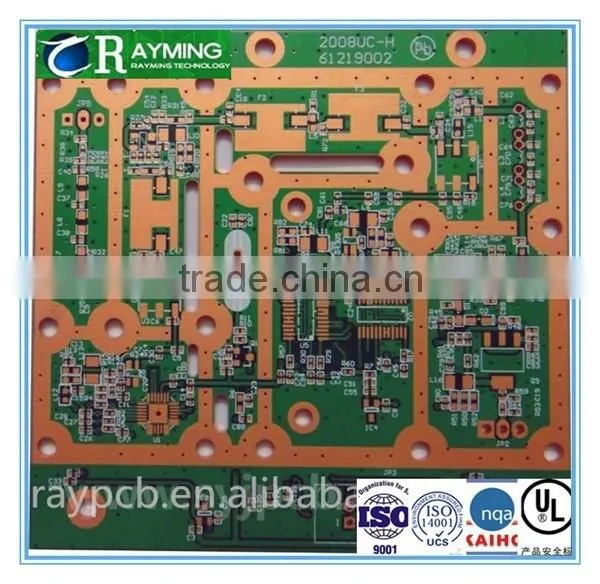

ENIG Multilayer fr-4 tg 170 robotics pcb factory
- 50000 Piece / Pieces per Month
- Shenzhen/HongKong
- T/T L/C D/P D/A Credit Card PayPal
- OEM power bank pcb made in Shenzhen
- Brand new simulation board 640C0057G01, Kunteng control center circuit board 640D0190H01
- New Kunteng Control Center Digital Board 640C0024G01
- Pcba Professional PCBA Manufacturer Support Customize Wireless Charging Circuit Board
- customized PCBA SMT PCB
- 16 layer HDIPCB+PCBA (SMT+rear welding+plug-in)
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RayMing | Model Number: | Rigid PCB-1075 |
Base Material: | FR-4,ROGERS,CEM-1,CEM-2,CEM-3 | Copper Thickness: | 1-6OZ | Board Thickness: | 0.2-5.0mm |
Min. Hole Size: | 0.2mm | Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.1mm |
Surface Finishing: | HASL,OSP,HAL,ENIG |
Product Description
Specifications
1.MOQ is 1 PCS.2.Certification:UL,ISO9001,ISO14001,nqa.
3.robotics pcb factory
4.Competitive price,factory
ENIG Multilayer fr-4 tg 170 robotics pcb factory .
Rigid PCB product capacity.
Items | Mass | Prototypes |
Layers | 1-8 Layers | 1-20 Layers |
Max. Panel Size | 600*770mm( 23.62"*30.31") | 600*770mm(23.62"*30.31") 500*1200mm(19.69"*47.24") |
Max.Board Thickness | 8.5mm | 8.5mm |
Min. Board Thickness | 2L:0.3mm | 2L:0.2mm |
4L:0.4mm | 4L:0.4mm | |
6L:0.8mm | 6L:0.6mm | |
Min Inner Layer Clearance | 0.1mm(4mil) | 0.1mm(4mil) |
Min Line width | 0.1mm(4/4 mil) | 0.075mm(3/3 mil) |
Min Line space | 0.1mm(4/4 mil) | 0.075mm(3/3 mil) |
Min.Hole Size | 0.2mm(8mil) | 0.15mm(6mil) |
Min plated hole thickness | 20um(0.8mil) | 20um(0.8mil) |
Min Blind/Buried hole size | 0.2mm(8mil) | 0.2mm(1-8layers)(8mil) |
PTH Dia. Tolerance | ±0.076mm(±3mil) | ±0.076mm(±3mil) |
Non PTH Dia. Tolerance | ±0.05mm(±2mil) | ±0.05mm(±2mil) |
Hole Position Deviation | ±0.05mm(±2mil) | ±0.05mm(±2mil) |
Heavy Coppe | 4OZ/140μm | 6OZ/175μm |
Min S/M Pitch | 0.1mm (4mil) | 0.1mm (4mil) |
Soldermask colour | Green,black,Blue,White,Yellow,Red | Green,black,Blue,White,Yellow,Red |
Silkscreen colour | White,Yellow,Red,Black | White,Yellow,Red,Black |
Outline | Routing,V-Groove, Beveling punch | Routing,V-Groove, Beveling punch |
Outline Tolerance | ±0.15mm ±6mil | ±0.15mm (±6mil) |
Peelable mask | Top,bottom,double sided | Top,bottom,double sided |
Controlled Impedance | +/- 10% | +/- 7% |
Insulation Resistance | 1×1012Ω(Normal) | 1×1012Ω(Normal) |
Through Hole Resistance | <300Ω(Normal) | <300Ω(Normal) |
Thermal Shock | 3×10sec@288℃ | 3×10sec@288℃ |
Warp and Twist | ≤0.7% | ≤0.7% |
Electric Strength | >1.3KV/mm | >1.4KV/mm |
Peel Strength | 1.4N/mm | 1.4N/mm |
Solder Mask Abrasion | >6H | >6H |
Flammability | 94V-0 | 94V-0 |
Test Voltage | 50-330V | 50-330V |
PCB or PCBA files requests.
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us
if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary.
Why choose us?---Quality is everything!
Our Advantage:
2.Quick and econimic delivery term.
3.Provide PCB & PCBA prototype, and medium&low volumn quick board services.
4.Component purcharsing, SMT&PCBA one-stop source.
5.Two-hours quote response, 24 hours quick-turn produce.
6.FR4 Double-sided and Alum single-sided sample in 48 hours.
Benefits for customer |
*- Get a high quality product. *- Get a lower price of product to occupy the market from our online order *- Our one stop service release your energy to focus on design and marketing. *- Get a strategic long term partner. |
Our Service: |
*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom. *- Suggest best quality replacement with lower price. *- Engineering support for test and provide suggestions for mass production. *- Suggest best shipment method. Our factory view and corner: Comprehensive test machine : Certification and main clients: Payment and Package:
Environmental Protection : Skype:raypcb02,welcome your inquiry!
|
