Brass Advanced TCP/IP Network Electronic Door Lock with Remote Control
We can provide TCP/IP Network Remote Control Electric Door Lock and Wireless Remote Control Electric Door Lock.
Introduction:
Networked hotel lock is a new advanced technology. All locks and computers (server and client) are in a LAN, computers can monitor and control all locks status and remote unlock all locks; Locks save all records of reading card and unlocking, these records can be collected by computers at any moment. Some cards’ functions are replaced by computer operation. To some extent, it may help reduce cost, but it is more efficient and safer.
Feature:
*Real time monitor all rooms unlocking and status. *Powered by POE (Power over Ethernet) power adapter and backup battery, automatically switch to backup battery if external power is cut off. *5,000 users + 10,000 events per lock, flash save events. *1800mAh Ni-MH battery gives 20 hours life after power off. *Over current protection. *Remotely unlock and key card unlock. *In case of emergency, control all locks in unlocking or locking status by computer. *Based on TCP/IP technology and No limit to quantity in one LAN (project). *Free combination of rooms/time table in 1 card. *Low Battery Voltage warning (beep and red light). *Passage mode for meeting case. *Hotel lock system (free) required *40mm-50mm thickness door (other thickness customized).
Specification:
| Material | Brass |
| Power | POE (Power over Ethernet) AC110-240V |
| Low power alarm voltage | 4.8V |
| Communication | 13.56MHz RFID (with keycard)/infrared ( with LMA ) |
| Card support | MF1® S50 plus S70 |
| Working Distance | 45mm Max |
| Mortise | ANSI 5 latch |
| Working Temperature | 0-60°C |
| Working Humidity | 15~85%RH |
| Static current | < 30uA |
| Working current | < 150mA |
| Memory | 800 Transactions include Time/Date/Card ID/Card type/Room ID |
| Gross Weight | 3.1KG |
| Package | 10pcs/Carton at 74.0X42.0X32.0CM |
| Content | Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike (no battery included, no card) |
RJ45-port for Ethernet/Live monitoring all doors access/Remote unlocking by PC via Ethernet/Lock events live uploading to PC/Auto switch backup power mode /Over current protection /RFID card & mechanical key for access/Alarm for improperly closing door

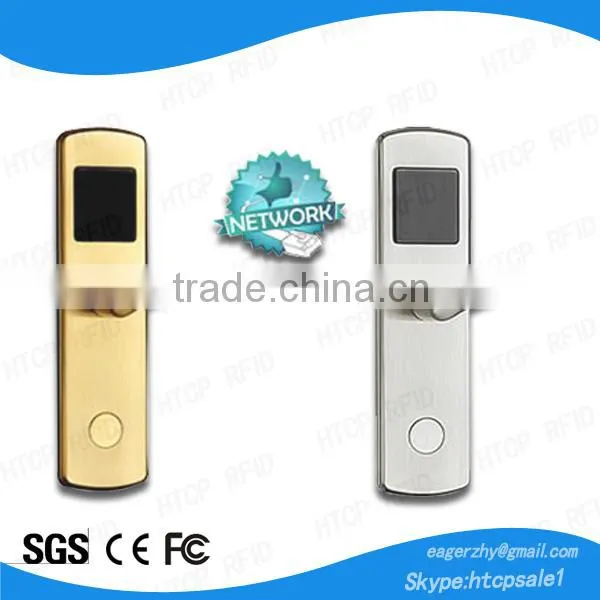

Product Photo

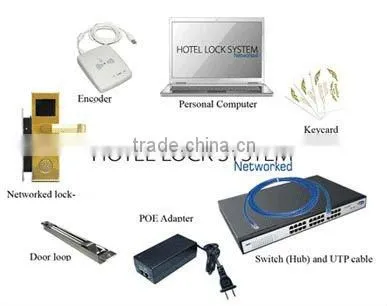

System Diagram
Product Certification
Our Factory
Our Advantage
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target
Provide cost-effective products and timely services with the concept of “one store purchasing”, realize win-to-win cooperation!
How to Pay
By T/T, paypal, westerm union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
