Home > Electrical & Electronics > Electric Motor > AC Motor > ZD1230B 12v Wiper Motor,12V/24V 20W 29NM

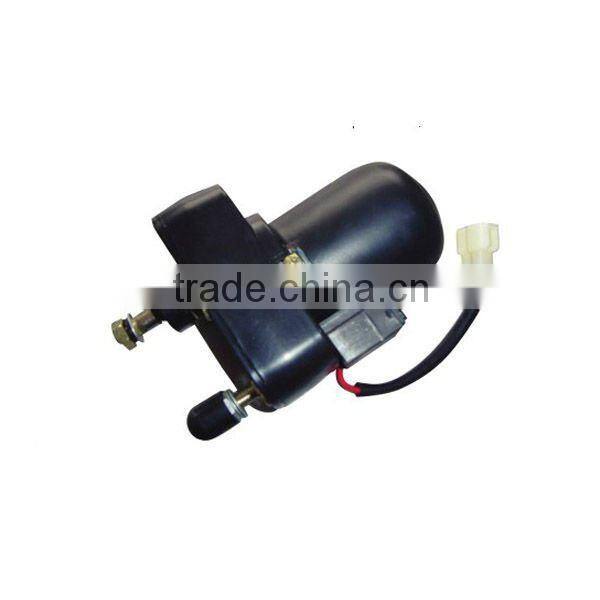

ZD1230B 12v Wiper Motor,12V/24V 20W 29NM

Name: ZD1230B 12v Wiper Motor,12V/24V 20W 29NM
Brand: KING
SKU: 119059537
Availability: InStock

ZD1230B 12v Wiper Motor,12V/24V 20W 29NM thumbnail-1

ZD1230B 12v Wiper Motor,12V/24V 20W 29NM photo-1

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

KING

Model Number:

ZD1230B

Contact Supplier Request Quote Chat Now

King Auto Parts., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name KING

Model Number ZD1230B

Type DC Motor

Use Wiper

Motor Brush

Voltage 12V

Certification CE

Specifications

1.Wiper motor 12v/24v 29NM(min) 20W
2.For engineering cars,tructors or cars
3.Over 1500000 cycles of life is guaranteed
4.CE

Model		ZD1230B	ZD2230B
Rating Voltage	U_N	12V	24V
Rating Power	P_N	20W
No Load Current	T_N	1A	0.6A
No Load Speed	n_N	45(45/65)±5RPM Single/Double speed
Load Current	I_D	3(3/3.5)A	1.5(1.5/1.8)A
Load Speed	n_D	40(40/60)±5RPM Single/Double speed
Wipr Angle	a^o	60,65,70,75,80,85,90,95,100,105,110,115,120,125,130,135
Return Position	R or L
Stall Current	I	15.2A	6.2A
Stall Torque	M_A	12NM(min)

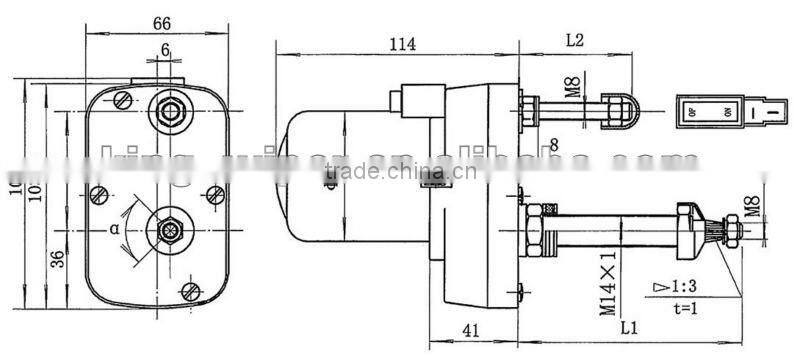

Output Spindle	L1/L2	(30-80)/(20-100)mm
Protection Circuit	EMC or overload protection
Protection Class		IP33
Weight	W	1.4kg

The KING AUTO PARTS CO., LTD with over 30 years experience in the wiper system. The product ranges wiper blade, wiper refill, wiper arm, linkage, wiper motor, washers, washer pump and washer nozzle for cars, truck, bus, ship, train, tractor and engineering cars under the brand name of 'KING'.

Our wiper rubber passed on the quality test carried on by SWF, who supply OE parts to many famous car manufactures include GM, Ford, V.W China factory . We can produce wiper blades from 12" - 40" (300mm~1000mm).

Our main customer for windshield washer pumps are GM, FORD, V.W , FIAT, ISUZU, SUZUKI, KIA , TRICO, TRW, VALEO etc , the annual capacity for washer pump is 18 million pcs.

We own strong design and mould manufacturing department, can accept OEM/ODM orders, and can make wiper products or other complicated products according to samples or drawings, welcome customers to develop new products or make new moulds together with us.

Further information pls visit our website

http://king-wiper.en.china.cn or
