Home > Construction & Decoration > Lock > Door Lock > EL-100S Fail Safe Electric Bolt Security Lock

EL-100S Fail Safe Electric Bolt Security Lock

EL-100S Fail Safe Electric Bolt Security Lock thumbnail-1
EL-100S Fail Safe Electric Bolt Security Lock photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Techcrepower
Model Number:
EL-100S Electric Bolt Security Lock
Contact Supplier Request Quote Chat Now
Shenzhen Importgm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Techcrepower
Model Number EL-100S Electric Bolt Security Lock

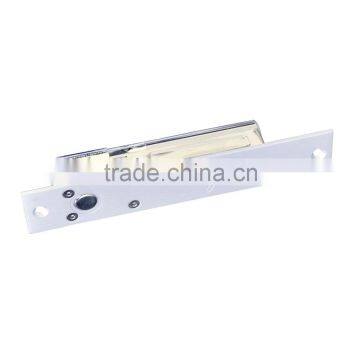

EL-100S Fail Safe Electric Bolt Security Lock



Introduction:

YB-100S is a fail safe electric bolt suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.





Specifications:



Fail Safe Locked when energized
Face Plate 205Lx35WX41.5H(mm)
Strike 90Lx25Wx2H(mm)
Voltage DC12V
Start Current 900mA
Standby Current 120mA
Solid Bolt polishing housing, 800Kg Holding Force
Suitable For Wooden Door,Glass Door,Metal Door
Surface Temp Low Temperature
Induction Distance 8mm
Operating temp -10~+55°C(14~131F)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 cycles
Face place material High Aluminum,Carrulous Line Finished
Weight 0.72kg





Advantage:



Low Temperature, safe & Durable.

Low Power, Environmental Protection.

Special photoelectricity control,three steps current application.

Long Life with 500000 Operations.

MOV Provides Reverse Current Protection.

Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt.

Double protection for loading current.

Auto-relock if no Action within 5 secs.

Certificate:CE&MA

Photoelectricity Control,Low Temperature,

A:The Low Current is Changed immediately;

B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.

C:The Photoelectricity Control Technology, prevent the machanical defect.



Product Certification



EL-100S Fail Safe Electric Bolt Security Lock





Our Factory

EL-100S Fail Safe Electric Bolt Security Lock



Our Advantage

1. Original High Quality Products:

All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,

we don’t sell products with only low prices.



2. Professional Technical Team:

We can offer comprehensive solution for your projects.

We can offer detailed pre-sales requirements analysis and guide.

We can offer professional remotely technical support for problems.


3. Flexible Customization: We can customize software, firmware for customers requirements.

4. OEM,ODM service: We can design and produce machines with your own logo.

5. Good Service: We treat clients as good friend.

6. Special offers: We have special offers for long-term cooperation clients.



Payment Terms

1. Paypal or Escrow for small sample orders

2. T/T (Telegraphic Transfer)  or  Western Union / Moneygram

3. L/C(Letter of Credit) for high value orders

4. Cash for face to face business



Shippment Method

1. International Express(DHL, TNT, Fedex, UPS, EMS, Aramex), take about 3-7 days

2. International Airline, take about 5-15 days differently.

3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.

4. by POST , slow but cheap for small package, take 10-60 days.



Product Warranty

We provide 1~2 years warranty from the date of delivery but lifetime technical support.
