EL-300 Fail Safe Electric Bolt Safety Lock

EL-300 Fail Safe Electric Bolt Safety Lock thumbnail-1
EL-300 Fail Safe Electric Bolt Safety Lock photo-1
US$ 17.5 - 29.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HUAKE
Model Number:
EL-300 Electric Bolt Safety Lock
Contact Supplier Request Quote Chat Now
Shenzhen Importgm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HUAKE
Model Number EL-300 Electric Bolt Safety Lock

EL-300 Fail Safe Electric Bolt Safety Lock



Fail safe electric bolt W/signal, time, open wire(12-24V)





Specifications:



Fail Safe Locked when energized
Face Plate 205Lx35WX41H(mm)
Strike 90Lx25Wx2H(mm)
Voltage DC12V-DC24V
Start Current 12V/900mA 24V/730mA
Standby Current 12V/130mA 24V/90mA
Solid Bolt polishing housing, 800Kg Holding Force
Suitable For Wooden Door,Glass Door,Metal Door
Autolock Time Delay 0,3,6,9sec..
Signal Output Door status Output, NC/COM
Surface Temp Low Temperature
Induction Distance 8mm
Operating temp -10~+55°C(14~131F)
Operating Humidity 0~90%(non-condensing)
Special Designed Tested to 500000 cycles
Face place material High Aluminum,Carrulous Line Finished
Weight 0.7kg





Features:



Low Temperature, safe & Durable
Low Power, Environmental Protection
Special photoelectricity control, three steps current application
Long Life  with 500000 Operations
MOV Provides Reverse Current Protection
Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact (NC.COM)
Double protection for loading current
Auto-relock if no Action within 5 secs.
Certificate: CE&MA.
Photoelectricity Control, Low Temperature,
A: The Low Current is Changed immediately;
B: When door frame doesnt coincide with door
leaf, door leaf against the bolt, then the electric.
bolt will start the low-power function to bring.
low temperature.
C: The Photoelectricity Control Technology,
prevent the mechanical defect.

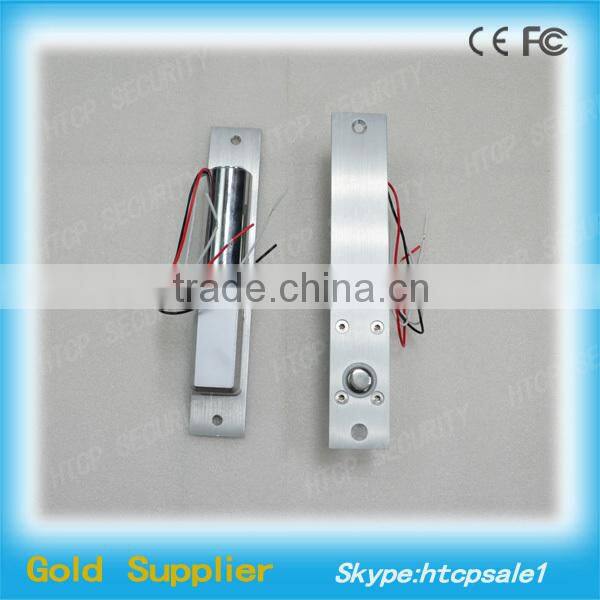

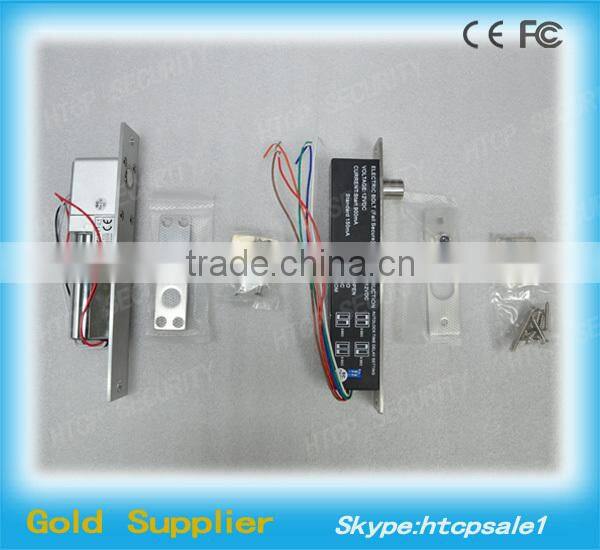

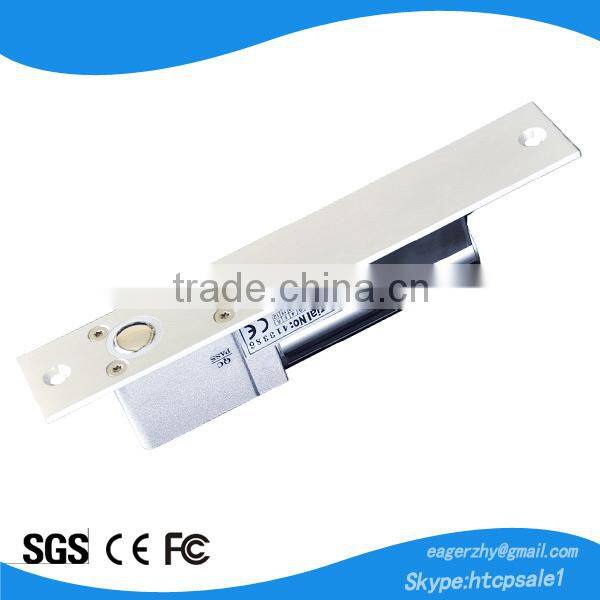

Product Photo

EL-300 Fail Safe Electric Bolt Safety Lock



EL-300 Fail Safe Electric Bolt Safety Lock



EL-300 Fail Safe Electric Bolt Safety Lock





Product Certification

EL-300 Fail Safe Electric Bolt Safety Lock



Our Factory

EL-300 Fail Safe Electric Bolt Safety Lock





Our Advantage

1. Original High Quality Products:

All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,

we don’t sell products with only low prices.



2. Professional Technical Team:

We can offer comprehensive solution for your projects.

We can offer detailed pre-sales requirements analysis and guide.

We can offer professional remotely technical support for problems.


3. Flexible Customization: We can customize software, firmware for customers requirements.

4. OEM,ODM service: We can design and produce machines with your own logo.

5. Good Service: We treat clients as good friend.

6. Special offers: We have special offers for long-term cooperation clients.



Payment Terms

1. Paypal or Escrow for small sample orders

2. T/T (Telegraphic Transfer)  or  Western Union / Moneygram

3. L/C(Letter of Credit) for high value orders

4. Cash for face to face business



Shippment Method

1. International Express(DHL, TNT, Fedex, UPS, EMS, Aramex), take about 3-7 days

2. International Airline, take about 5-15 days differently.

3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.

4. by POST , slow but cheap for small package, take 10-60 days.



Product Warranty

We provide 1~2 years warranty from the date of delivery but lifetime technical support.
