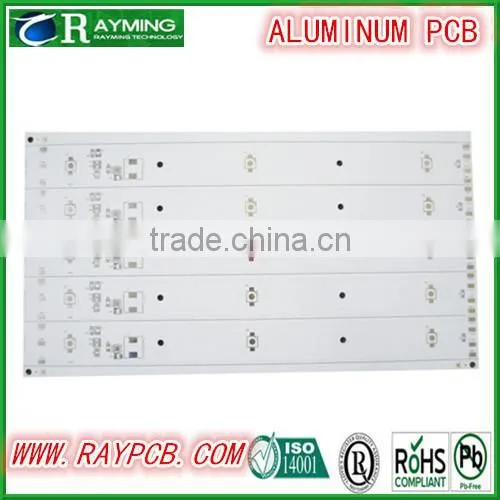

aluminium pcb for led street light, Printed Circuit Board,Circuit Board for LED light

Good Pricing

No MOQ & Free Sample

Quick Delivery

Good quality & International Approvals

Great Customer Service

On-time delivery

Diversified Shipping Method

Wide Range of PCB Supplying

SMT and thru-hole assembly

One Stop Turnkey EMS Service

NO

ITEM

Technical capabilities

1

Layers

1-20 layers

2

Max. Board size

508×610 mm

3

Min. board Thickness

2-layer 0.12mm

4-layer 0.4mm

6-layer 0.6mm

8-layer 0.90mm

10-layer 1mm

4

Min. line Width/Space

0.127mm(4mil)

5

Max. Copper thickness

5OZ

6

Min. S/M Pitch

0.075mm(3mil)

7

Min. hole size

0.15mm(6mil)

8

Hole dia. Tolerance (PTH)

±0.05mm(2mil)

9

Hole dia. Tolerance (NPTH)

+0/-0.05mm(2mil)

10

Hole position deviation

±0.05mm(2mil)

11

Outline tolerance

±0.10mm(4mil)

12

Twist & Bent

<0.7%

13

Insulation Resistance

100MΩ Normal

14

Electric strength

>1.3kv/mm

15

S/M abrasion

>6H

16

Thermal stress

288°C 20Sec

17

Test Voltage

50-300V

18

Min. blind/buried via

0.15mm (6mil)

19

Surface Finished

HAL, ENIG, OSP, Plating AG, Plating gold,HAL tin, silver

20

Materials

FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base, CEM-3, CEM-1, Halgenfree
