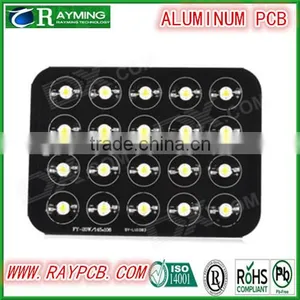

Help Center2 Layer Aluminum Pcb Bare Board for Led Light 1.6 mm Board Thickness Black Soder Mask
Related Products
-
Aluminium Led Pcb 94v0 Board With Brightness SMD5630 Led ChipsUS$ 0.1 - 1MOQ: 1 Piece -
ISO ROHS SVHC Certified PCB Manufacturer in Thermally Conductive Aluminum PCB Material Custom LED PCBUS$ 0.1 - 1MOQ: 1 Piece
-
Hacked up LED Microscope Lighting PCB, Shenzhen Manufacturer Aluminum Housing LED PCB BoardUS$ 0.1 - 1MOQ: 1 Piece
-
PCB 0.8mm Aluminum LED PCB Circuit BoardsUS$ 0.1 - 1MOQ: 1 Piece
-
UL Approval Aluminium Base Copper-clad Laminate Pcb BoardUS$ 0.1 - 1MOQ: 1 Piece
Aluminum PCB for LED lighting
PCB Circuit Board
Competitive Advantage:
Good Pricing |
No MOQ & Free Sample |
Quick Delivery |
Good quality & International Approvals |
Great Customer Service |
On-time delivery |
Diversified Shipping Method |
Wide Range of PCB Supplying |
SMT and thru-hole assembly |
One Stop Turnkey EMS Service |
NO |
ITEM |
Technical capabilities |
1 |
Layers |
1-20 layers |
2 |
Max. Board size |
508×610 mm |
3 |
Min. board Thickness |
2-layer 0.12mm |
4-layer 0.4mm | ||
6-layer 0.6mm | ||
8-layer 0.90mm | ||
10-layer 1mm | ||
4 |
Min. line Width/Space |
0.127mm(4mil) |
5 |
Max. Copper thickness |
5OZ |
6 |
Min. S/M Pitch |
0.075mm(3mil) |
7 |
Min. hole size |
0.15mm(6mil) |
8 |
Hole dia. Tolerance (PTH) |
±0.05mm(2mil) |
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
10 |
Hole position deviation |
±0.05mm(2mil) |
11 |
Outline tolerance |
±0.10mm(4mil) |
12 |
Twist & Bent |
<0.7% |
13 |
Insulation Resistance |
100MΩ Normal |
14 |
Electric strength |
>1.3kv/mm |
15 |
S/M abrasion |
>6H |
16 |
Thermal stress |
288°C 20Sec |
17 |
Test Voltage |
50-300V |
18 |
Min. blind/buried via |
0.15mm (6mil) |
19 |
Surface Finished |
HAL, ENIG, OSP, Plating AG, Plating gold,HAL tin, silver |
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base, CEM-3, CEM-1, Halgenfree |
Product photo:
1.PCB Favricate
2. buy components
3.assembly components
4. PCB layout if provide the schematic
5.Copy PCB Board if provide sample
6.Test PCB ,PCBA funcation if provide test method.
About us :
Our company webiste :
RayMing Technology Co.,Ltd was founded in 1997, is a high-teach enterprise specializing in the production of high-level,high-precision printed circuit boards. We have more than 10,000 square meters,with more than 500 professional employees,monthly capability is 20,000sqm,5000types.
Advantages:
1. With 15 years experience in PCB industry, we can manufacture high quality and competitive price products;
2. Specialized in 1-28 layers boards in prototype, quick-turn and small-medium, which including High Frequency, HDI, Impedance Controlled Board and Heavy Copper PCBs and etc;
3. The shortest lead time for double-sided board in 24 hours, and for 4-10 layers board 48 hours;
4. Obtained the certification of ISO9001,ISO14000, TS16949, ROHS,UL and SGS. All products strictly comply with IPC class 2,and can meet you Class3.
Please send us PCB files or gerber data so that we can quote for you
Certification:
Quotation Tips(one of them ):
1. Gerber files of the bare PCB board.
2. BOM (Bill of material) for assembly.
3. Testing Guide & Test Fixtures if necessary.
4. Programming files & Programming tool if necessary.
5. Schematic if necessary.
vide sample if possible .
