fireplace has significant design flexibility, Intelligent alcohol fireplace

FOB Price

USD $2,250 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shanghai, China	Brand Name:	SUN	Model Number:	RX1000
Usage:	Indoor	Function:	With Remote Control
Installation Type:	Insert

Product Description

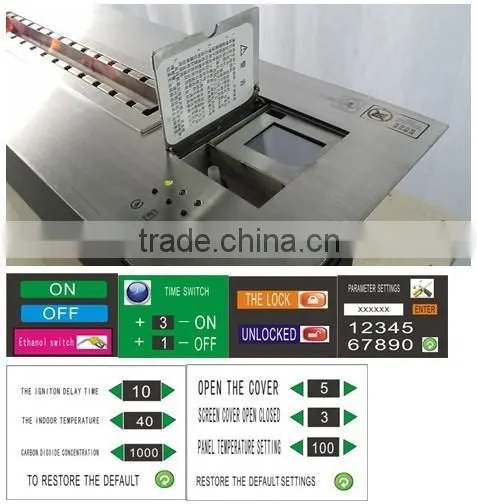

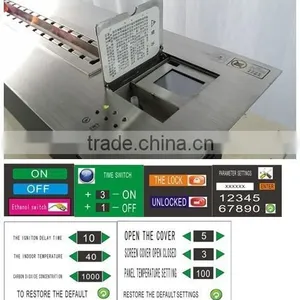

bioethanol fireplace

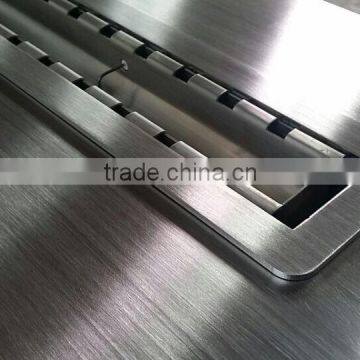

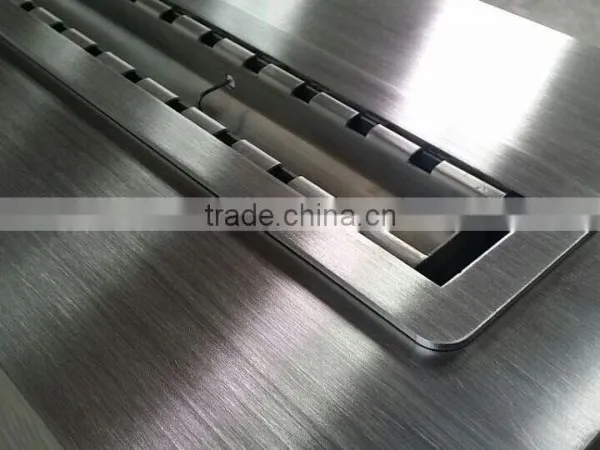

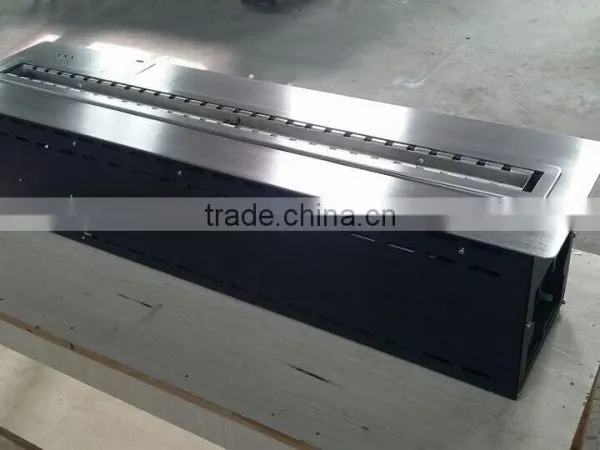

Panel Material: 304 stainless steel

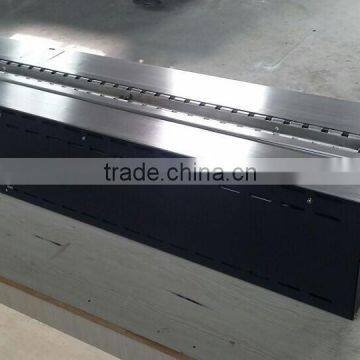

Cabinet Material: Iron powder spray

new electric standard functions :

Four keys remote control

panel Manual switch

Automatic injection pump

battery main switch

regulated power supply

power supply line

Burning tank high and low level control sensors

fuel tank High and low level control sensors

High performance low pressure injection pump

circuit Temperature control sensor

panel Temperature control sensor

inclination sensor

Fuel tank drain valve manually

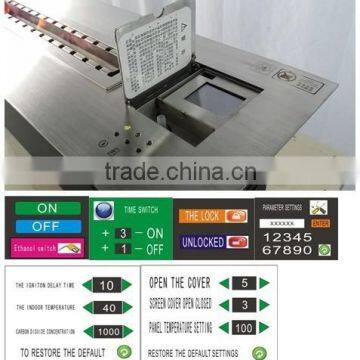

Intelligent control board

Brushed cloth

Handle

Low temperature ignition cotton

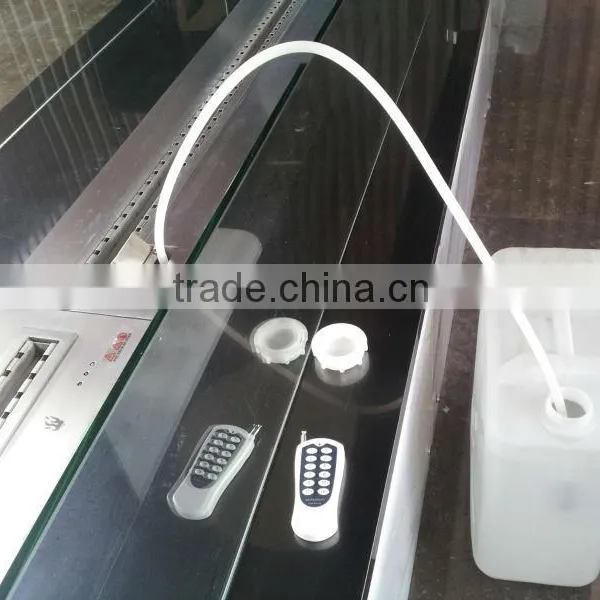

filling hose

Optional functions

1.Colours screen

2.CO2 sensor

3.Rain sensor

4.Flame sensor

5.WIFI control

6.Bluetooth control

Alcohol consumption of oxygen and produce carbon dioxide combustion conditions
1 liter of alcohol			Oxygen : 1165 liter/1.165 CBM
			Generate Carbon dioxide : 0.78 CBM,Exothermic 8.3KW
Technical parameters of Remote control fireplace
RX-500				RX-1000
Ignition method			High Energy Low intensity Delay electrode Ignition	Ignition method			High Energy Low intensity Delay electrode Ignition
Fuel			75-95% Ethanol	Fuel			75-95% Ethanol
Fuel consumption			0.6-1 liter/H	Fuel consumption			0.9-1.5 liter/H
Fuel tank capacity			25X20X20CM,10 liter	Fuel tank capacity			60X20X18CM,21 liter
Heating output power			2-3 kw	Heating output power			6-8 kw
Noise			20-40dB	Noise			20-40dB
Water pump			Low Noise Micropower piezoelectric pump	Water pump			Low Noise Micropower piezoelectric pump
Continuous burn time			13-16 H	Continuous burn time			15-18 H
Dimensions LWH		Panel	500X250X0.3MM	Dimensions LWH	Panel		1000X250X0.3MM
		Base	450X200X235 MM		Base		950X200X235 MM
Weight			32	Weight			43.5
Case Material			Stainless steel / iron powder	Case Material			Stainless steel / iron powder
Supply voltage/ power	220V, 50HZ		Open :66w Working : 13w Fueling : 12w	Supply voltage/ power		220V, 50HZ	Open :66w Working : 13w Fueling : 12w
Configuration			High temperature automatic power-off protection,prevent overflow protection, lack of fuel alarm, oil Full alert, power tilt, remote control switches, cabinet switches, fuses, Power Cord
Optional			CO2 alarm, exhaust port, an external LCD panel for Ventilate
Attachment			Manual,remote control, hoses, filters	Attachment			Manual,remote control, hoses, filters

FAQ

1.Intelligent fireplace safe to use?

Intelligent fireplace with ordinary fireplace has essentially different . Intelligent fireplace is an product that combine advanced microcomputer intelligent control technology and exquisite patented high-tech sheet metal structural , not only first-class combustion, but also truly people-oriented, control and security is the most advanced all over the world . combustion amount of alcohol use microcomputer to control the precise calculation of the supply per second, every minute , during combustion process continuously monitors the furnace and ambient data, in case any data abnormal alarm will immediately and automatically cut off the supply of alcohol, stop burning, shut down the entire system, to ensure maximum use of the user security .

2. How long the warranty period Intelligent fireplace?

The warranty period is one year, lifetime service after the warranty expires, supply of spare parts and maintenance fees in accordance with the market price.

3. Easy maintenance?

If accidental damage, we will replace the fireplace circuit, Maintenance is very simple.

Safe use in accordance with the requirements of the specification, is not easily damaged .
