Specifications
10GBASE-LRM SFP Module1.Original new sealed
2.High quality&Best Price
Product Overview
The Cisco® 10GBASE SFP+ modules (Figure 1) offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.
Features and Benefits
Main features of Cisco 10GBASE SFP+ modules include:
Smallest 10G form factor
Supports 10GBASE Ethernet and OTU2/OTU2e
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
Provides flexibility of interface choice
Supports “pay-as-you-populate” model
Supports digital optical monitoring capability
Supports the Cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco
Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
Cisco SFP-10G-SR
The Cisco 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.
Cisco SFP-10G-SR-X
The Cisco SFP-10G-SR-X is a multirate* 10GBASE-SR, 10GBASE-SW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 26m on standard Fiber Distributed Data Interface (FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700MHz*km MMF (OM4), up to 400m link lengths are possible.

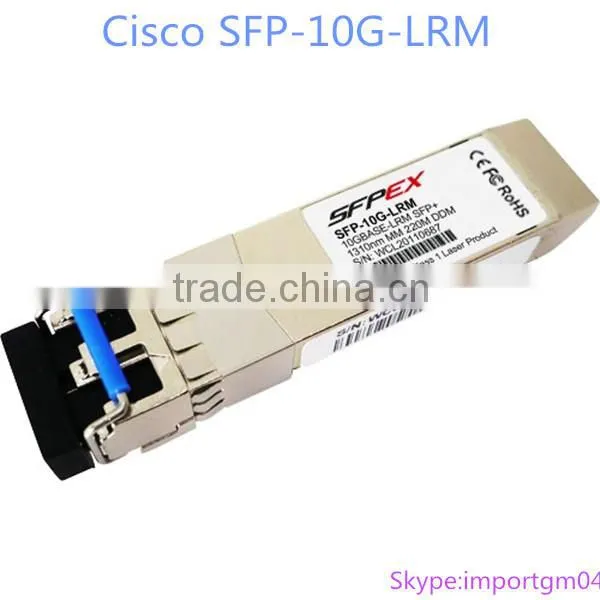

Cisco SFP-10G-LRM
The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4.
The Cisco 10GBASE-LRM Module also supports link lengths of 300m on standard single-mode fiber (SMF, G.652).
Cisco FET-10G
The Cisco FET-10G Fabric Extender Transceiver support link lengths up to 100m on laser-optimized OM3 or OM4 multimode fiber. It is supported on fabric links only from a Nexus 2000 to a Cisco parent switch. Note this product is not orderable individually.
Cisco SFP-10G-LR
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Cisco SFP-10G-LR-X
The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).
Cisco SFP-10G-ER
The Cisco 10GBASE-ER Module supports a link length of up to 40 kilometers on standard single-mode fiber (SMF,G.652).
Cisco SFP-10G-ZR
The Cisco SFP-10G-ZR is a multirate 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e module. It supports link lengths of up to about 80 kilometers on standard single-mode fiber (SMF, G.652). This interface is not specified as part of the 10 Gigabit Ethernet standard and is instead built according to Cisco specifications.
Cisco Nexus 7000 Series Common Equipment - SUP1/FAB2 Bundles
| N7K-C7009-BUN2 | Nexus 7009 Bundle (Chassis,SUP1,(5)FAB2,(2)AC-6KW PSU |
| N7K-C7009-BUN2-R | Nexus 7009 Bundle (Chassis,(2)SUP1,(5)FAB2,(2)AC-6KW PSU) |
| N7K-C7010-BUN2 | Nexus 7010 Bundle (Chassis,SUP1,(5)FAB2,(2)AC-6KW PSU) |
| N7K-C7010-BUN2-R | Nexus 7010 Bundle (Chassis,(2)SUP1,(5)FAB2,(3)AC-6KW PSU) |
| N7K-C7009-BUN2-P1 | Nexus 7009 Promo Bundle (Chassis,SUP1,(3)FAB2,(2)AC-6KW PSU |
Cisco Nexus 7000 Series Supervisors
| N7K-SUP2E= | Nexus 7000 - Supervisor 2 Enhanced, Includes 8GB USB Flash |
| N7K-SUP1 | Nexus 7000 - Supervisor, Includes External 8GB Log Flash |
| N7K-SUP1= | Nexus 7000 - Supervisor, Includes External 8GB Log Flash |
| N7K-SUP2 | Nexus 7000 - Supervisor 2, Includes External 8GB USB Flash |
| N7K-SUP2E | Nexus 7000 - Supervisor 2 Enhanced,Includes 8GB USB Flash |
| N7K-SUP2= | Nexus 7000 - Supervisor 2, Includes External 8GB USB Flash |
Cisco Nexus 7000 Series M-Modules
| N7K-M108X2-12L | Nexus 7000 - 8 Port 10GbE with XL option (req. X2) |
| N7K-M108X2-12L= | Nexus 7000 - 8 Port 10GbE with XL option (req. X2) |
| N7K-M132XP-12L | Nexus 7000 - 32 Port 10GbE with XL Option, 80G Fabric (req. |
| N7K-M132XP-12L= | Nexus 7000 - 32 Port 10GbE with XL Option, 80G Fabric (req. |
| N7K-M148GS-11L | Nexus 7000 - 48 Port GE Module with XL Option (req. SFP) |
| N7K-M148GS-11L= | Nexus 7000 - 48 Port GE Module with XL Option (req. SFP) |
| N7K-M148GT-11L | Nexus 7000 - 48 Port 10/100/1000 Module with XL option |
| N7K-M148GT-11L= | Nexus 7000 - 48 Port 10/100/1000 Module with XL option |
| N7K-M202CF-22L | Nexus 7000 M2-Series 2 Port 100GbE with XL Option (req. CFP) |
| N7K-M202CF-22L= | Nexus 7000 M2-Series 2 Port 100GbE with XL Option (req. CFP) |
| N7K-M206FQ-23L | Nexus 7000 M2-Series 6 Port 40GbE with XL Option (req. QSFP) |
| N7K-M206FQ-23L= | Nexus 7000 M2-Series 6 Port 40GbE with XL Option (req. QSFP) |
| N7K-M224XP-23L | Nexus 7000 M2-Series 24 Port 10GE with XL Option (req. SFP+) |
| N7K-M224XP-23L= | Nexus 7000 M2-Series 24 Port 10GE with XL Option (req. SFP+) |
Cisco Nexus 7000 Series F-Modules
| N7K-F132XP-15 | Nexus 7000 - 32 Port 1G/10G Ethernet Module, SFP/SFP+ |
| N7K-F132XP-15= | Nexus 7000 - 32 Port 1G/10G Ethernet Module, SFP/SFP+ |
| N7K-FCOE-F1-BUN= | Nexus 7000 F1 Line Card and FCoE License Bundle |
| N7K-F248XP-25 | Nexus 7000 F2-Series 48 Port 10GbE (req. SFP+) |
| N7K-F248XP-25= | Nexus 7000 F2-Series 48 Port 10GbE (req. SFP+) |
| N7K-F248XP-25E | Nexus 7000 F2-Series 48 Port 1/10G (SFP+) Enhanced |
| N7K-F248XT-25E= | Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced |
| N7K-F248XT-25E | Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced |
| N7K-F248XP-25E= | Nexus 7000 F2-Series 48 Port 1/10G (SFP+) Enhanced |
| N7K-F248XT-25E-P1 | Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced |
| N7K-F248XT-25E-P1= | Nexus 7000 F2-Series 48 Port 1/10GBase-T (RJ-45) Enhanced |
Cisco Nexus 7000 Series Power Supplies
| N7K-AC-6.0KW | Nexus 7000 - 6.0KW AC Power Supply Module |
| N7K-AC-6.0KW= | Nexus 7000 - 6.0KW AC Power Supply Module |
| N7K-AC-7.5KW-US | Nexus 7000 - 7.5KW AC Power Supply Module US (cable included |
| N7K-AC-7.5KW-INT | Nexus 7000 - 7.5KW AC Power Supply Module International (cab |
| N7K-AC-7.5KW-INT= | Nexus 7000 - 7.5KW AC Power Supply Module International (cab |
| N7K-AC-7.5KW-US= | Nexus 7000 - 7.5KW AC Power Supply Module US (cable included |
| N7K-DC-6.0KW | Nexus 7000 - 6.0KW DC Power Supply Module (Cables Included) |
| N7K-DC-6.0KW= | Nexus 7000 - 6.0KW DC Power Supply Module (Cables Included) |
| N7K-AC-3KW= | Nexus 7000 - 3.0KW AC Power Supply Module (Cable Included) |
| N7K-AC-3KW | Nexus 7000 - 3.0KW AC Power Supply Module (Cable Included) |
| N7K-DC-3KW | Nexus 7000 - 3.0KW DC Power Supply Module |
| N7K-DC-3KW= | Nexus 7000 - 3.0KW DC Power Supply Module |
Cisco Nexus 7000 Series 10 Gigabit Ethernet SFP+ Optics
| SFP-10G-SR= | 10GBASE-SR SFP Module |
| SFP-10G-SR | 10GBASE-SR SFP Module |
| SFP-10G-LRM | 10GBASE-LRM SFP Module |
| SFP-10G-LRM= | 10GBASE-LRM SFP Module |
| SFP-10G-LR | 10GBASE-LR SFP Module |
| SFP-10G-LR= | 10GBASE-LR SFP Module |
| SFP-10G-ER | 10GBASE-ER SFP Module |
| SFP-10G-ER= | 10GBASE-ER SFP Module |
| SFP-H10GB-CU1M= | 10GBASE-CU SFP+ Cable 1 Meter |
| SFP-H10GB-CU3M | 10GBASE-CU SFP+ Cable 3 Meter |
| SFP-H10GB-CU3M= | 10GBASE-CU SFP+ Cable 3 Meter |
| SFP-H10GB-CU5M= | 10GBASE-CU SFP+ Cable 5 Meter |
| SFP-H10GB-ACU7M | Active Twinax cable assembly, 7m |
| SFP-H10GB-ACU7M= | Active Twinax cable assembly, 7m |
| SFP-H10GB-ACU10M | Active Twinax cable assembly, 10m |
| SFP-H10GB-ACU10M= | Active Twinax cable assembly, 10m |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ Cable 1 Meter |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ Cable 5 Meter |
