Specifications
1.Fingerprint,Card,Password 2.Professional Access Control; 3.TCP/IP,WG26/WG34; 4.Capacity:2000 Fingerprint,60000 Logs.
MF850 Color screen RFID & Fingerprint access control(New)
1. High-definition color LCD display, the unique open design of the keyboard.
2. Have a professional access control function of the time zone hours, access privilege features, and a professional access control interface.
3. Supports multi-user recognition by free setting between the two users and five users.
4. Users period setting, each user can set a period, when the user for a period exceeding the validity period for the user automatically lapse.
5. Supports a variety of alarm events: Duress alarm, illegally open the door alarm, door open delay alarm, fire alarm input.
6. Unique reading of the first adaptive function, when, and I read the company's MF10 access network used to automate the first two-way fingerprint access control, fingerprint registration only on the host registration, no registration at the time head.
7. F1 ~ F4 function keys can be customized.
8. Professional access control software for real-time monitoring and remote control professional access control functions, and can also function to achieve attendance.

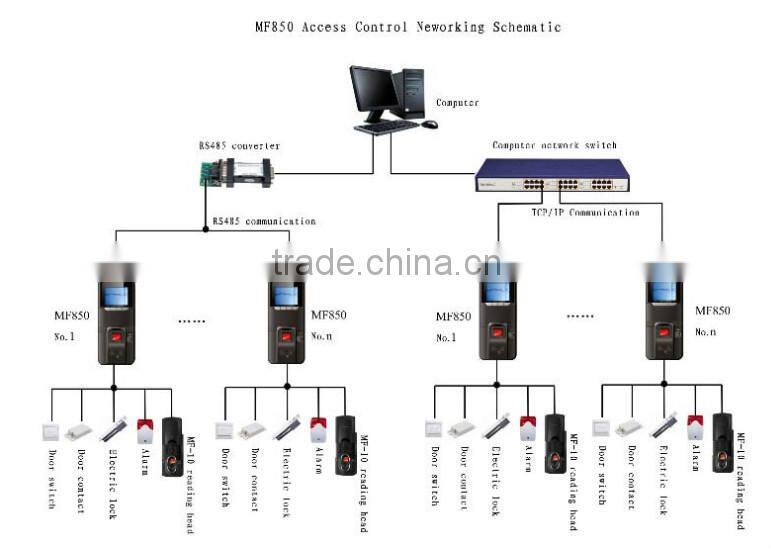

9. Through RS485 or TCP / IP multi-networked control.

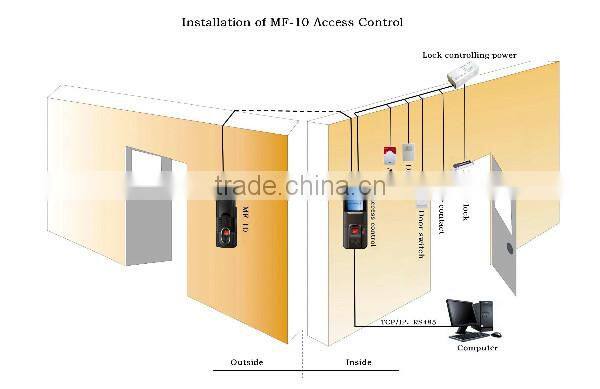

10. Installation of 86 combined with standard installation holes, so installation is more simple and convenient, it also has a simple waterproof design.
| Product name | MF850 Color screen RFID & Fingerprint access control(New) |
| Type | MF850 |
| CPU | ARM7 |
| Algorithm | High speed HSA8.0 |
| Fingerprint sensor | Optical |
| Effective collecting area | 16 x 14 mm (6.30 x 5.51 inch) |
| Fingerprint plane acceptance angle | >±45°C |
| Fingerprint capacity | 2000 pieces |
| Logs capacity | 60000 pieces |
| Admin log capacity | 1000 pieces |
| Query logs functions | Yes |
| Attendance function | Yes |
| Verify mode | Fingerprint,Card,Password,Fingerprint+Password,Card+Fingerprint,Card+Password,Card+Fingerprint+Password |
| False reject rate(FRR) | ≤0.01% |
| False accept rate(FAR) | ≤0.0001% |
| Identification time | ≤1S |
| Identification speed | 5000----30000 piece/s |
| Than on the way | 1:N / 1:1 |
| Work on the way | Offline/With machine |
| Voice | High-Definition humanity voice |
| LCD | High-definition color LCD display(2.8 Inch TFT) |
| Language display on LCD | Multilingual |
| Name display on LCD | Yes |
| LED Indicator | Power and status LED light |
| Screen-saver | Yes |
| Keypad | 4×4 Key,1 door bell |
| Function key | 4 Function keys |
| Card reader inside | Yes |
| Card type | EM(ID) |
| Punching distance | 20----80 mm (0.78----3.15 inch) |
| Communication | RS485 |
| TCP/IP Communication | Yes |
| Real time monitoring | Yes |
| Software support | K1 Access Control Management System |
| Extensions function | MF10 Reader / ID card / IC card / Bell |
| Bell interface | Yes |
| Ring | 20 Group |
| Buzzer | Yes |
| Anti demolition | Yes |
| Alarm | Yes |
| Intimidation alarm function | Yes |
| Access control function | Yes |
| Wiegand interface | Supports standard input and output WG26/WG34(External proximity card reader) |
| User Time group | Time group 30 group |
| User Time section | Time section 50 group |
| The user is valid | Yes |
| Power supply | 12V DC |
| Power | <9W |
| Current | <350mA |
| Quiescent current | <150mA |
| Static strength | <15KV |
| Operational temperature range | 0°C----+45°C |
| Operational humidity range | 20%----60% |
| Storage ambient temperature range | —10°C----+65°C |
| Humidity range storage environment | 20%----80% |
| Machine dimension LxWxH | 185 x 80 x 35 mm (7.28 x 3.15 x 1.37 inch) |
