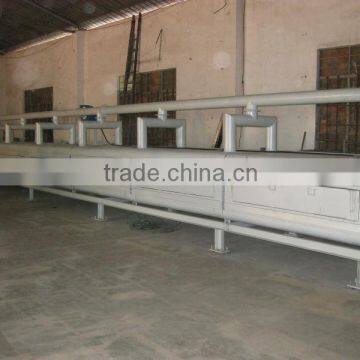

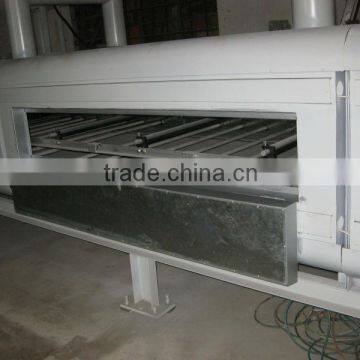

Multifunctional Automatic Electrical Insulation Mica Tape Lamination Machine

Specifications

Electrical insulation mica tape lamination machine
High working efficiency
Fast speed
PLC control

HD1100 Multifunctional electrical insulation mica tape lamination machine is applicable of manufacturing DMD and different kinds of insulated materials.







Functional requirement:



1, Using glue to laminate the PET film and non-woven polyester fabric together. (the thickness after laminating is 0.08-0.4mm)



2, Using glue to laminate the PET film and non-woven polyester fabric together, the working width of the finished product is 1400mm, the machine can adopt single or double faced gluing and after drying and laminating(single faced or double faced), and then rewinding the product.





Main parameters:



1, Unwinding Max. diameter: Φ400mm



2, The paper jumbo roll diameter: Φ76mm



3, Max. Mechanical speed: 15meter/min



4, Drying part temperature control: three stage temperature control Tmax=150°C±2°C



5, Heating roller temperature control: Tmax=100°C±2°C



6, Main power: about 33KW



7, Dimension: 9800*1800*2000mm



8, Type of heating: Electricity/Steam/Heat conducting oil







Remark: This series of  automatic electrical insulation mica tape lamination machine could be manufactured according to customers special requirement.





Payment terms:



T/T 30% in advance, T/T 70% before shipment, Letter of credit





After-sales service:



Engineer could be sent to customer's facotry to install and training if customer required.
