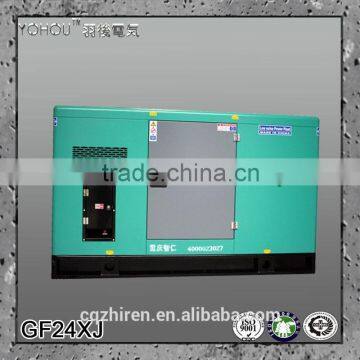

AC 3 phase 230V/400V 50Hz 12kw ultra silent diesel generator
Advantage
1. ultra silent diesel generator
2. 50Hz/ 400v/230v, 12kw 15kw 18kw 20kw silent diesel generator available.
3.The parameter is for 50Hz, 1500rpm, voltage AC400V/230V, power factor 0.8, 3 phase 4 four diesel generator set.
4.The diesel generator set is equipped with JMT, Wuxi Stamford, Marathon Motors, Shanghai Stamford, etc.
5.The generator set is characterized by quick start, strong adaptability, economical reliability etc. The completed generator set is installed on steel chassis structure, all-welded structure, integrated design. The chassis is equipped with holes for transport and installation.
Technical Parameter
Genset Model | GF15XJ |
Diesel Engine Model | 4dw81-23d |
Cooled Type | Water Cooled |
Speed Regulating Type | Mechanical Or Electrical Governor |
Structure | 4 Stroke |
BorexStroke (MmxMm) | 85x100 |
Compression Ratio | 17:1 |
Displacement | 2.27 |
Controller Model | Deepsea 4620/Zhongzhi410 (Optional) |
Circuit Breaker | 63a (4 Pole) |
Rated Voltage | 400v/230v |
Rated Power | 12kw |
Rated Capacity | 15kva |
Max.Output Power | 13.20kw |
Max. Output Capacity | 16.50kva |
Rated Frequency | 50hz |
Rated Rpm | 1500rpm |
Power Factor | Cosφ=0.8 (Lag) |
Fuel | 0# Light Diesel (Normal Temperature) |
Fuel Consumption (100%) | 240g/Kw.H |
Engine Oil Capacity (L) | 7.8 |
Sound Level @ 7m (Dba) | ≤73db |
Max. Environment Temperature | 40℃ |
Battery Voltage | 12v |
Base Fuel Tank Capacity (L) | 48 |
Steady-State Voltage Regulation( % ) | ≤ ±5 |
Voltage Fluctuations Volatility (% ) | ≤ ±0.5 |
Transient Voltage Regulation ( % ) | +20 ~ -15 |
Voltage Steady Time (S) | ≤1 |
Steady State Frequency Regulation( % ) | ≤±1 |
Frequency Fluctuation Rate (%) | ≤±0.5 |
Transient Frequency Regulation (%) | +10 ~ -7 |
Frequency Steady Time (S) | ≤3 |
Dimension (Lx W x H) Mm | 1850x850x1060 |
Genset Weight (Kg) | 630kg |
1. Supply spare parts.
2. one year warranty.
Are you a factory or a trading company?
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City,
adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 15 days. It’s up to the quantities you buy.
