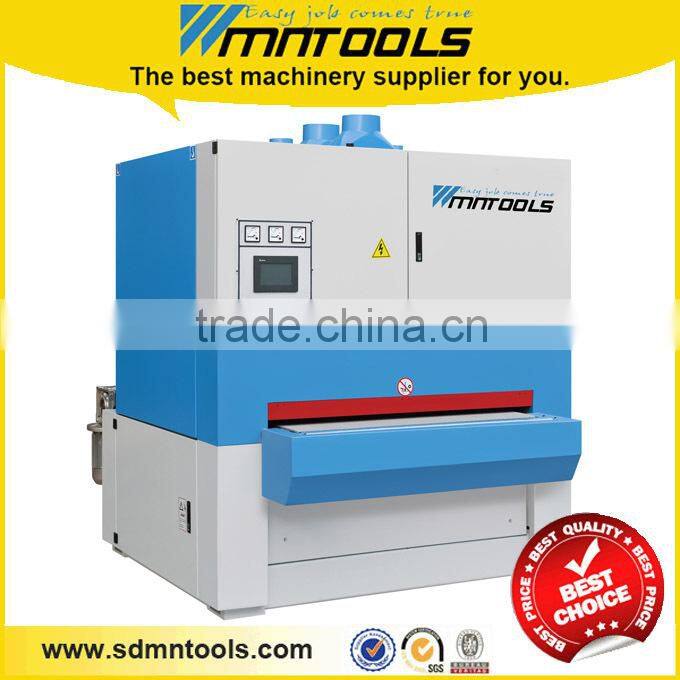

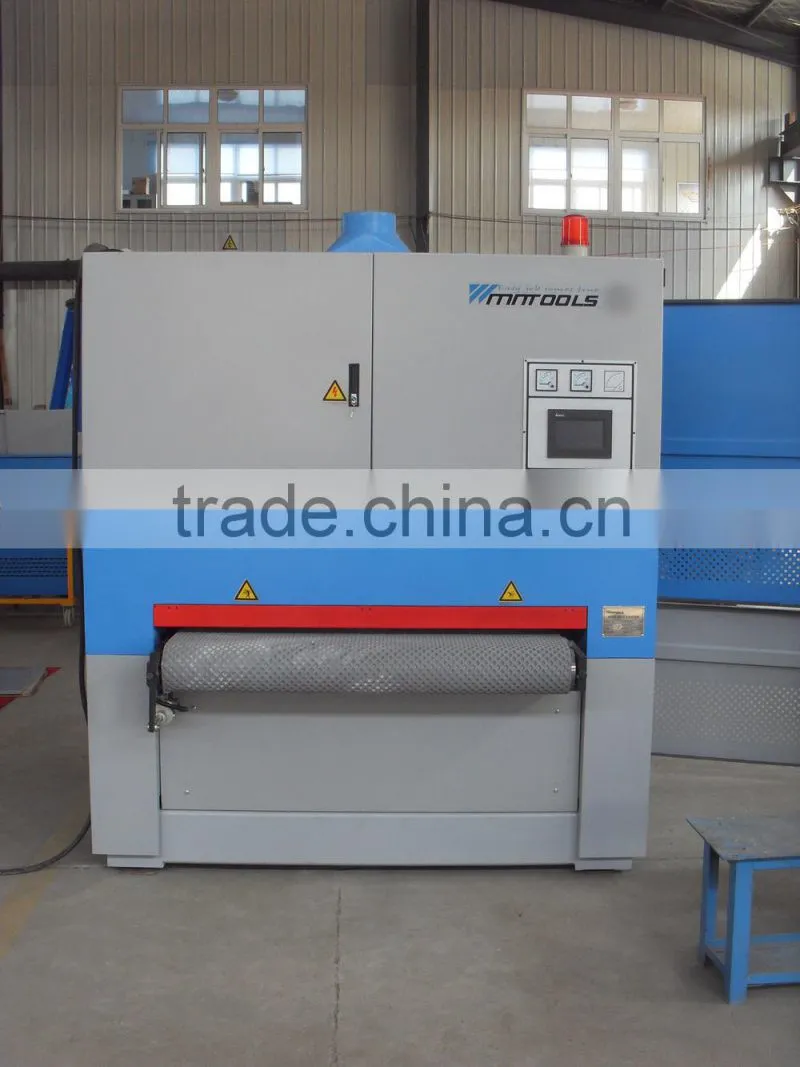

Wood Primer Sanding Machine , Wide Belt Sander

Name: Wood Primer Sanding Machine , Wide Belt Sander
Brand: MNTOOLS
SKU: 119027475
Availability: InStock

Qingdao MNT International Trade Ltd.

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Sander

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Sander

Place of Origin Shandong, China

Brand Name MNTOOLS

Model Number MTLS1300R-R

Voltage as oer request

Weight 2500kgs

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

wood primer sanding machine

Features:

1, It is applied for the lacquer sanding job like furniture, floor, finger joint board, plate, craft products and etc.

2, Variable speed adjustment by frequency inverter.

3,Variable feeding speed system.

4, Digital readout for easily sanding thickness adjustment.

5, Soft rubber sanding roller. (different size is available for choice as per different production job)

6, With sanding belt self cleaning system.

Model No.	MTLS650R-R	MTLS1000R-R	MTLS1300R-R
ing width	650mm	1000mm	1300mm
ing length	200mm	200mm	200mm
Working thickness	2.5-100mm	2.5-100mm	2.5-100mm
Sanding motor power	5.5kw	7.5kw	11kw
3M polishing motor power	2.2kw	2.2kw	2.2kw
Feeding motor power	0.75kw	1.5kw	2.2kw
Cleaning brush morot	0.37kw	0.37kw	0.37kw
Lifting motor power	0.37kw	0.37kw	0.37kw
Total power	9.19kw	11.94kw	16.14kw
Sanding speed	2-11m/s	2-11m/s	2-11m/s
Sanding belt size (Longitudinal)	2150*660mm	2150*1020mm	2200*1330mm
Air pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
Compressed air consumption rate	0.1m³/h	0.1m³/h	0.1m³/h
Dust collection air volume	2500m³/h	3000m³/h	4500m³/h
N.W	1200kg	1800kg	2500kg
