Wood Floor Sander

Name: Wood Floor Sander
Brand: MNTOOLS
SKU: 119026949

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Sander

Place of Origin:

Shandong, China

Qingdao MNT International Trade Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Sander

Place of Origin Shandong, China

Brand Name MNTOOLS

Model Number MTWBS1000R-P(R)

Voltage as per request

Power(W) 35.24kw

Weight 2000kgs

Certification CCC

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

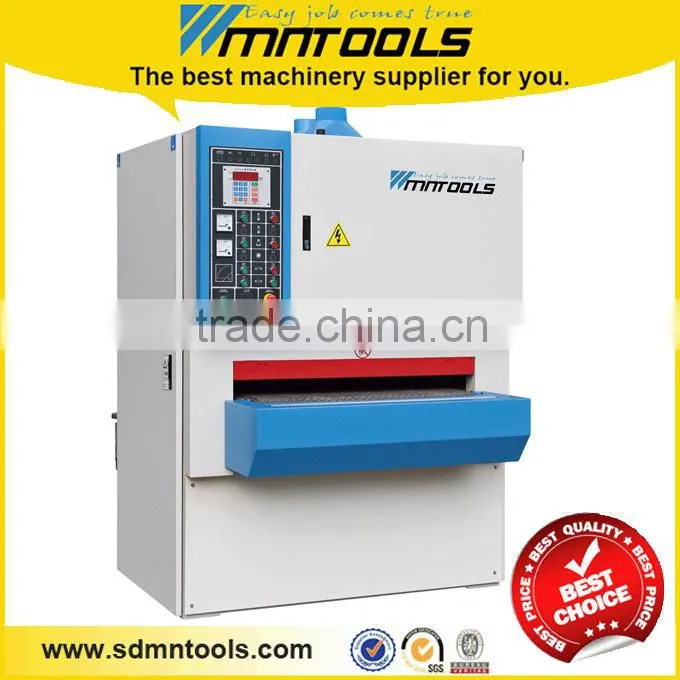

Wide belt sander

Product Description

Features:

1, It is applied for the sanding job like furniture, floor, finger joint board, plate, craft products and etc.

2, Digital readout for easily sanding thickness adjustment.

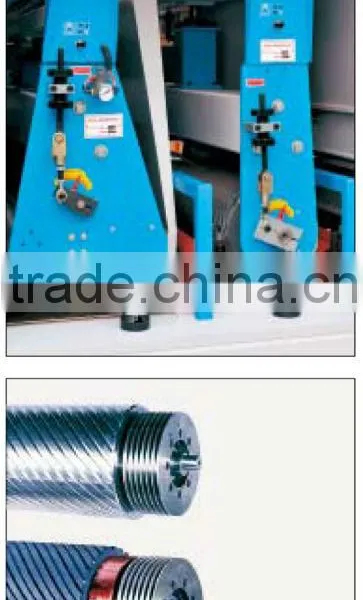

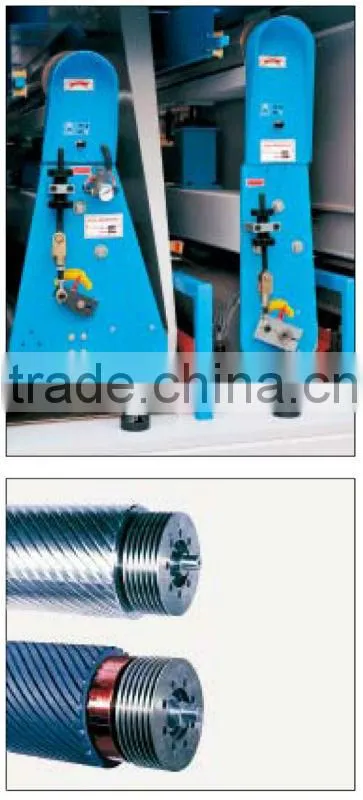

3,Big diameter eccentric sanding roller supply big amount high precision sanding.

4,Adjustable height sanding pad.

5,Variable feeding speed system.

6,With cleaning brush roller at the end.

7,With pressing roller for workpiece feeding.

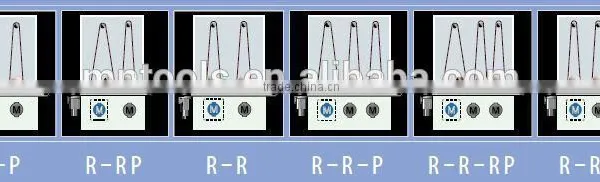

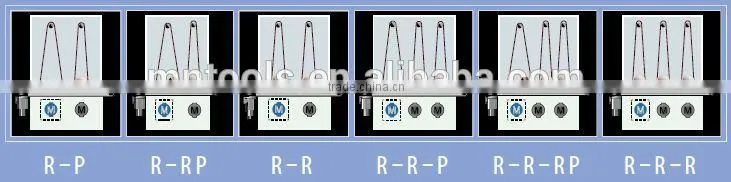

8, Different sanding roller design combination for different user’s request.

Model No.	MTWBS1000R-P(R)	MTWBS1000R-RP	MTWBS1000R-R-P(R)
ing width	1000mm	1000mm	1000mm
ing length	400mm	400mm	400mm
Working thickness	2.5-100mm	2.5-100mm	2.5-100mm
1st sanding motor power	22kw	22kw	22kw
2nd sanding motor power	11kw	11kw	18.5kw
3rd sanding motor power			11kw
Feeding motor power	1.5kw	1.5kw	1.5kw
Cleaning brush morot	0.37kw	0.37kw	0.37kw
Lifting motor power	0.37kw	0.37kw	0.37kw
Total power	35.24kw	35.24kw	53.74kw
Planing speed	22m/s	22m/s	22m/s
1st sanding speed	14m/s	18m/s	22m/s
2nd sanding speed			14m/s
Sanding belt size (Longitudinal)	2150*1020mm	2150*1020mm	2150*1020mm
Air pressure	0.4-0.6mpa	0.4-0.6mpa	0.4-0.6mpa
Compressed air consumption rate	0.15m³/h	0.15m³/h	0.22m³/h
Dust collection air volume	4000m³/h	4000m³/h	6000m³/h
N.W	2500kg	2700kg	3200kg
