Diesel Engine Driven Generator Set

Chongqing Zhiren Electric Equipment Co., Ltd.
Diesel Engine Driven Generator Set thumbnail-1
Diesel Engine Driven Generator Set thumbnail-2
Diesel Engine Driven Generator Set thumbnail-3
Diesel Engine Driven Generator Set thumbnail-4
Diesel Engine Driven Generator Set thumbnail-5
Diesel Engine Driven Generator Set thumbnail-6
Diesel Engine Driven Generator Set photo-1
Diesel Engine Driven Generator Set photo-2
Diesel Engine Driven Generator Set photo-3
Diesel Engine Driven Generator Set photo-4
Diesel Engine Driven Generator Set photo-5
Diesel Engine Driven Generator Set photo-6
US$ 930 - 999 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YOHOU
Model Number:
YH7500MED
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Shanghai or other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name YOHOU
Model Number YH7500MED
Output Type Other, single/3 phase
Speed 3000rpm
Frequency 50Hz/60Hz
Rated Power 5kw 10kw 12kw 15kw
Rated Voltage 240v 220v 380v (optional 110v 120v 200v 208v 400v

Diesel engine driven generator set



Product Description

1.  Diesel engine driven generator set.

2.  Rare-earth permanent magnet generator.

3.  Control panel: with voltmeter, amper mmeter, frequency meter, ground terminal etc.

4.  Voltage optional:   220v 380v (optional 110v 120v 200v 208v 400v , 415V

5.  Hand start/electric start, single/3 phase, air cooled type diesel engine.



Technical Parameter

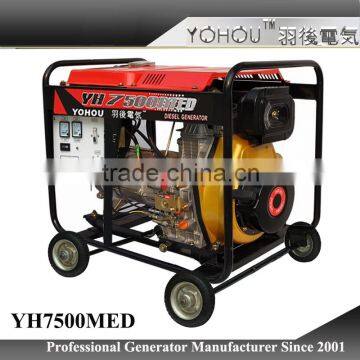

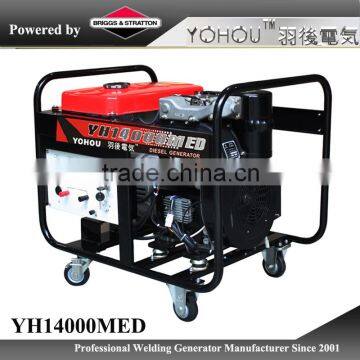

ModelYH7500MEDYH14000MED
GeneratorExcitation SystemRare-earth Permanent Magnet Rare-earth Permanent Magnet
Frequency(Hz)50605060
Voltage Rating(V)
  (optional)		110;115;120;
220;230;240;		110;115;120;
220;230;240;		110;115;120;
220;230;240;		100;110;120;
127;220;230
Rated Power(KW)561213
Max. Load(KW)6.257.51314
Power Factor COSφ11
Phasesingle phasesingle phase
Start typeElectric startElectric start
Storage Battery12V17AH12V24AH
EngineEngine ModelHH186FHH 292F
Engine Power(HP)1021
Engine Speed(r/min)3000360030003600
Cooled SystemAir-cooledAir-cooled
Fuel Type Normal temperaturer 0# diesel/
low temperaturer -20# diesel		Normal temperaturer 0# diesel/
low temperaturer -20# diesel
Fuel Tank Capacity(L)2526
Displacement(CC)442954
OthersIngress ProtectionIP23IP23
Noise Level @ 7m(dBA)≤85≤88
L×W×H(mm)780×700×730915×615×840
Weight(kg)108188
AccessoriesOil AlertYesYes
Frequency MeterYesYes
Hour MeterYesYes
TerminalsYesYes
Electric StarterYesYes
Non-fuse Circuit BreakerYesYes
12V DC OutputOptionalOptional
Fuel GaugeYesYes
WheelsNoNo
Storage BatteryNo (Optional)Optional

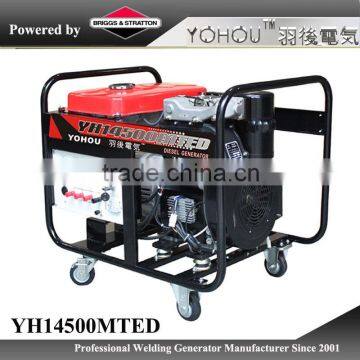

ModelYH14500MTEDYH15000MED
GeneratorExcitation SystemRare-earth Permanent Magnet Rare-earth Permanent Magnet
Frequency(Hz)50605060
Voltage Rating(V)
  (optional)		110/190;
115/200;
120/208;
220/380;
230/400;
240/415;		100/173;
110/190;
120/208;
127/220;
220/380;
230/400; 		110/190;
115/200;
120/208;
220/380;
230/400;
240/415;		100/173;
110/190;
120/208;
127/220;
220/380;
230/400;
Rated Power(KW)12131213
Max. Load(KW)131413.514.5
Power Factor COSφ11
Phase3 phase3 phase
Start typeElectric startElectric start
Storage Battery12V24AH12V24AH
EngineEngine ModelHH 292FHH292F
Engine Power(HP)2121
Engine Speed(r/min)3000360030003600
Cooled SystemAir-cooledAir-cooled
Fuel TypeNormal temperaturer 0# diesel/
low temperaturer -20# diesel		Normal temperaturer 0# diesel/
low temperaturer -20# diesel
Fuel Tank Capacity(L)2626
Displacement(CC)954954
OthersIngress ProtectionIP23IP23
Noise Level @ 7m(dBA)≤88≤88
L×W×H(mm)915×615×840915×615×840
Weight(kg)190192
AccessoriesOil AlertYesYes
Frequency MeterYesYes
Hour MeterYesYes
TerminalsYesYes
Electric StarterYesYes
Non-fuse Circuit BreakerYesYes
12V DC OutputOptionalOptional
Fuel GaugeYesYes
WheelsNoNo
Storage BatteryOptionalOptional

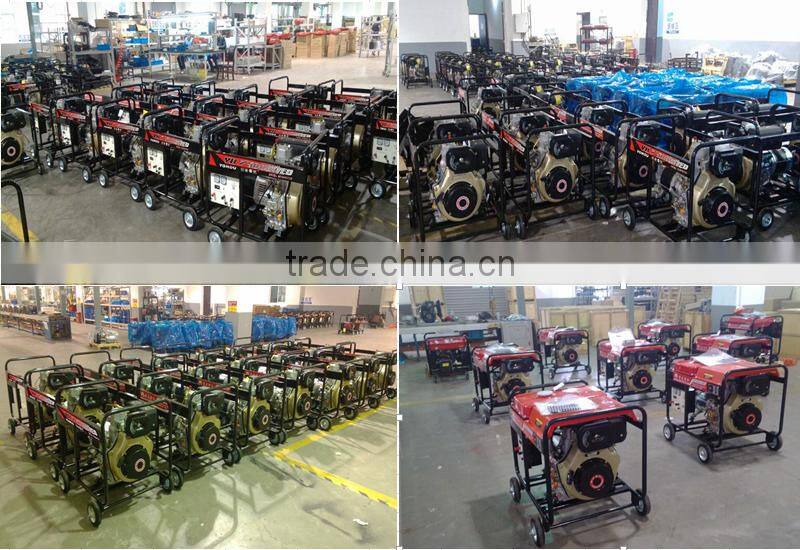

Photo Show

diesel engine driven generator set



Company Information

diesel engine driven generator set

diesel engine driven generator set

Chongqing Zhiren Electric Equipment Co., Ltd. was established in 2001.

Our company specialize in researching, developing, manufacturing and selling gasoline generator,

diesel generator, 1-100kW rare-earth permanent magnet generator, 100-200kW diesel generator set, silent generator, portable generator, movable generator, welder,

welding machine and related products.

Our products are widely used for agriculture, telecom, railway, bank, chemical, petroleum,

military industry and so on.



Located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing,

our company covers an area of 50 acre, with 25000 square meter stand modern workshops, office building, QC center, R&D center.

There are more than 150 employees in our company, including 10 engineers, 5 experts, professional sales team and more than 100 skilled workers.

We invested in introducing advance online testing equipment to insure perfect quality control system.



Our company dedicate the best products and the best service to customers all over world.

Every year we export products to Peru, Argentina, Brazil, Egypt, Southeast Asia, Middle East and other countries and regions.

Our mission is “ Customer first, Quality first”! We sincerely welcome customers from home and aboard to visit our company and cooperate with us!





FAQ

Are you a factory or a trading company?

We are a professional and leading manufacturer.

Where are you company located in?

Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City,

adjoins Chongqing Xiyong Bonded Zone.

What products are you produce?

We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.

 What’s your annual capacity?

About 250,000 units.

What’s the MOQ?

Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.

What’s the delivery time?

About 21 days. It’s up to the quantities you buy.
