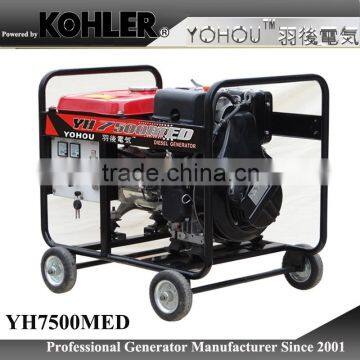

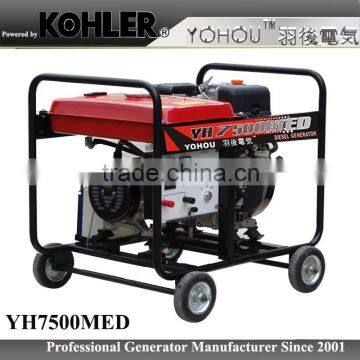

5kw/5kva portable diesel generator set
Advantage
1. Diesel generator 7.5kw .
2. Powered by KAMA 186F diesel engine, single cylinder, air cooled 4 stroke.
3. High quality and steday function.
4 With permanent magnet alternator.
5. With amperemeter, frequency meter, voltmeter, Hour meter, circuit breaker.
6. Voltage optional. diesel generator 7.5kw
Technical Parameter
| Model | GF5D/MC | ||
| Generator | Excitation System | Rare-earth Permanent Magnet | |
| Frequency(Hz) | 50 | 60 | |
| Voltage Rating(V) (optional) | 110;115;120; 220;230;240; | 110;115;120; 220;230;240; | |
| Rated Power(KW) | 5 | 6 | |
| Max. Load(KW) | 5.5 | 6.6 | |
| Power Factor COSφ | 1 | ||
| Phase | single phase | ||
| Start type | Electric start | ||
| Storage Battery | 12V17AH | ||
| Engine | Engine Model | KOHLER KD440 | |
| Engine Power(HP) | 10.3(7.7kW) | ||
| Engine Speed(r/min) | 3000 | 3600 | |
| Bore*Stroke (mm) | 86*76 | ||
| Compression Ratio | 20.3:1 | ||
| Maximum power peak torque | 18.4 lb-ft/(25 Nm) | ||
| Type | Single cylinder, 4 stroke, Air-cooled | ||
| Fuel Type | Normal temperaturer 0# diesel/ low temperaturer -20# diesel | ||
| Fuel Tank Capacity(L) | 28 | ||
| Displacement(CC) | 442 | ||
| Others | Ingress Protection | IP25 | |
| Noise Level @ 7m(dBA) | ≤75 | ||
| L×W×H(mm) | 780×700×730 | ||
| Weight(kg) | 108 | ||
| Accessories | Oil Alert | Yes | |
| Frequency Meter | Yes | ||
| Hour Meter | Yes | ||
| Terminals | Yes | ||
| Electric Starter | Yes | ||
| Non-fuse Circuit Breaker | Yes | ||
| 12V DC Output | Optional | ||
| Fuel Gauge | Yes | ||
| Wheels | No | ||
| Storage Battery | No (Optional) | ||
| The engine warranty | one year global warranty | ||
| Generator warranty | |||
| MOQ | 1 sets | ||
| Unit Price:(US$) | FOB Chongqing: | ||
| Term of payment | T/T | ||
| 20GP 5.89*2.35*2.39(m) | 63 UNITS | ||
| 40GP 12.029*2.35*2.39(m) | 126 UNIITS | ||
Are you a factory or a trading company?
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City,
adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 15 days. It’s up to the quantities you buy.
