AVE TPMS Sensor Setup Tool LF Remote Control best TPMS sensor
AVE is THE Number ONE and ONLY ONE OE TPMS supplier in Taiwan now (car mass production on line installing for Car maker)
Very Few Other TPMS have LF trigger Remote Control due to they want to save Sensor COST
Main Feature

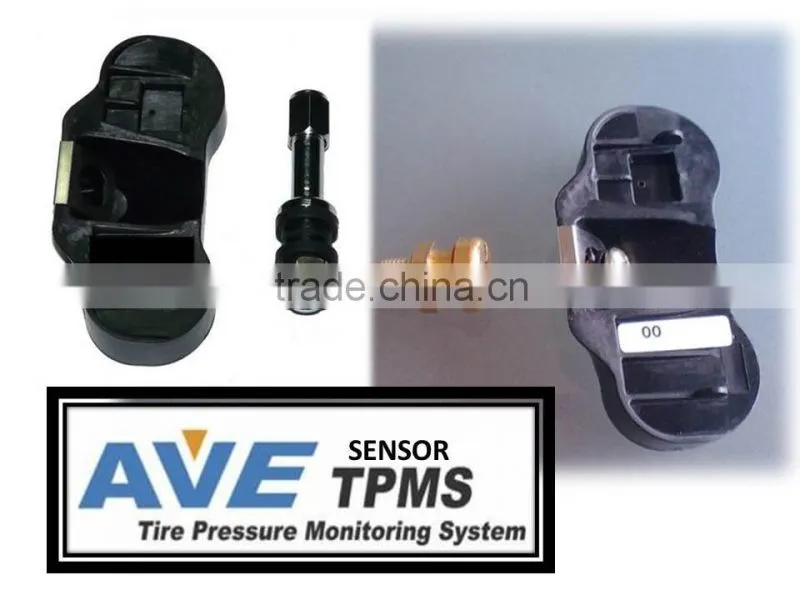

AVE TPMS SENSOR
AVE TPMS Main Feature
1) Color Display LED TPMS
2) Use of common valve (Easily available and replaceable)
3) Programmable up to 5 tires.
4) Measure tire pressure, tire temperature, sensors battery level, signals
strength and vehicle battery level.
6) Bi-directional (2 ways) communication on sensor (LF).
*can use LF remote controller for setup sensor position
7) Easily to setup for mount/dismount the trailer.
8) Monitoring at most 27 wheels in a meanwhile.
9) Sensor to Maximum tire pressure is 188psi for truck TPMS and 87psi for passenger car TPMS
We also provide our custoers the best valve stem with part number |
|
V5/V6/V7TR-572/573/570C/544D TR-553E/TRJ650 V3-20-4/V3-20-6/V3-22-1 |
*If your truck valve stem is different please tell us model number |
AVE Tire Pressure Monitoring System TPMS
Specification

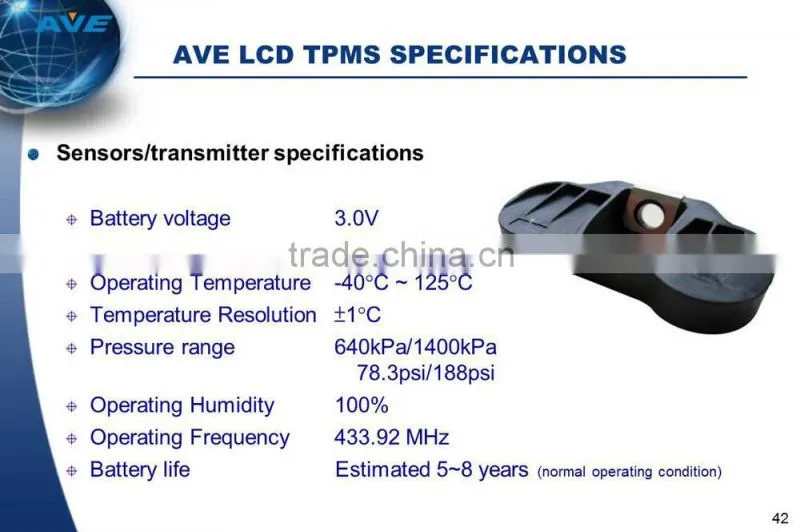

TPMS Sensors/Transmitter Specifications
Battery life |
Estimated 5 to 7 years (under normal operating condition) |
Battery voltage |
3 V |
Storage Temperature |
-55°C to 125°C |
Operating Temperature |
-40°C to 125°C |
Temperature Resolution |
±3°C |

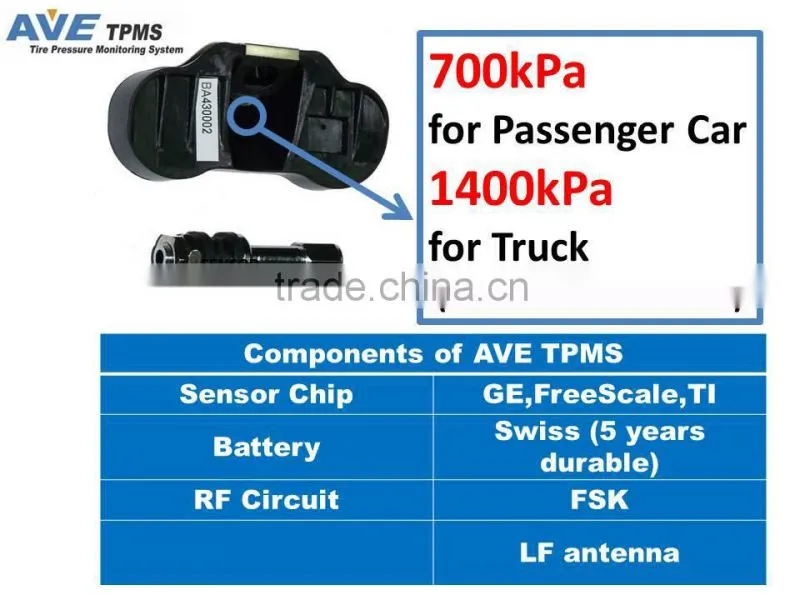

Pressure range |
700kPa(Car ), 1400kPa(Truck) |
Pressure Resolution |
2.66kPa(Car), 5.5kPa(Truck) |
Operating Humidity |
100% |
Operating Frequency |
434 MHz |
TPMS Receiver Specifications
Operating Voltage |
9V to 18V |
Operating Temperature |
-20°C to 85°C |
Monitored Temperature |
-40°C to100°C |
|

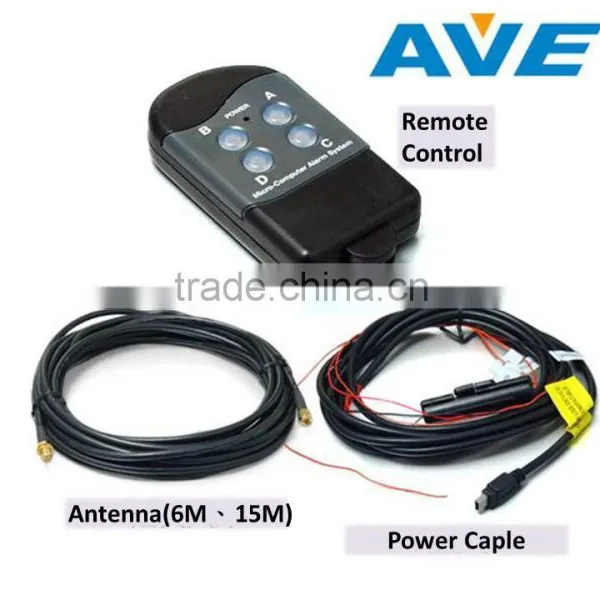

It can receive the low frequency command from Remote Control then send out RF signal (433.92M Hz) to Display (Receiver) to setup up the wheel position and sensor ID.
|
Press the Display (Receiver) button to enter SETUP MODE
1) The first tire on the display will flash
2) Near the first wheel and Press the LF remote control button the
first tire setup OK automatic, then the second one will flash
3) Continue the same step and follow the rules
(first tire, second tireand the last tire or spare tire)
AVE TPMS Sensor Setup Tool LF Remote Control best TPMS sensor
Certification
AVE is THE Number ONE and ONLY ONE OE TPMS supplier in Taiwan now (car mass production on line installing for Car maker)
AVE TPMS Sensor Setup Tool LF Remote Control best TPMS sensor
| TPMS Manufacturer | |
| Main Products: | Tpms,Car TPMS,Truck TPMS,Tire Pressure Monitor,Tyre Pressure Monitor |
|---|---|
| Location | Taiwan |
| Year Established | 2006 |
| Number Of Employees | 51 - 100 People |
| Total Revenue | US$5 Million - US$10 Million |
| Main Markets | Western Europe, Eastern Asia, Mid East, Oceania, Africa |
| Product Certifications | CE,FCC |
| Average Lead Time | 30 Day(s) |
We are looking for business partners (agents or distributors) in the local and international sales of AVE TPMS. We will provide a competitive price on our TPMS. |
AVE TPMS Sensor Setup Tool LF Remote Control best TPMS sensor
Q:What tire pressure our TPMS can apply for?
A:We recommend you T1004T or T1004P which are popular with our end users. The previous is for truck and can measure tire pressure under 188psi. The latter is for passenger car which can measure tire pressure under 87psi.
Q:Why Choose our TPMS?
A: The reliable signal receiving of AVE TPMS and the way how transmitter saves energy are our technical strength, only few companies can meet this standard. We hope you will find the prices are competitive for product of this high quality. We are professional TPMS manufacturer form TAIWAM.
Q Payment terms
A: T/T
Q Delivery Period
A: 7~14 Days
AVE TPMS Sensor Setup Tool LF Remote Control best TPMS sensor
