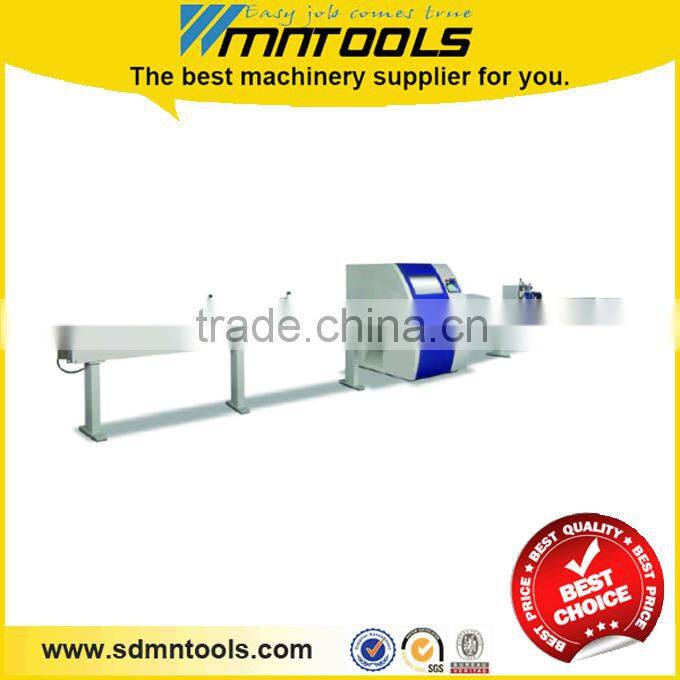

Furniture Production Machine , MTOCS- 1000
- Qingdao
You May Like
Product Details
| Condition | New | Type | Circular Saw | |
| Use | Woodworking | Style | Horizontal | |
| Place of Origin | Shandong, China | Brand Name | MNTOOLS | |
| Model Number | MTOCS-1000 | Usage | wood working | |
| Voltage | as per request | Power(W) | 18kw | |
| Dimension(L*W*H) | Different | Weight | Different | |
| Certification | ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
furniture production machineAutomatic cutting , high cutting precision, fast production rate
furniture production machine
Timber lengths to be machined:
Ingoing lengths | min./max. | 400 - 6300 mm |
Ingoing widths | min./max. | 30 - 230 mm |
Ingoing thicknesses | min./max. | 20 - 80 mm |
Cross sections | max. | 230 x 20 mm |
| max. | 160 x 80 mm |
Fixed length at rear of saw | min. | 140 mm |
Cutting tolerance |
| +/- 0.5 – 1.5 mm |
(at a timber quality with a minimum share of resin and plane surface. min. tolerance for fixed lengths up to 1 m max. tolerance for fixed lengths up to 2.5m)
Timber species: | Soft-/Hardwood |
Capacity:
Feed speed infinitely adjustable max. | 300 m/min. |
Cutting cycle | 0.3 – 1.2 second. |
Working height | 900 mm |
Connected loads:
Electric connected load | approx. 18 kW |
Operating voltage | 380 Volt / 50 Hz (C/s) |
Voltage variations | max. 5 % |
Air consumption | approx. 1200 NL / min. |
Service pressure | approx. 8 bar |
Interface diameter of air consumption ducts | 16mm |
Exhaust speed | approx. 30 m/s |
Diameter of dust exhaust ducts | 160mm(one), 80mm(one) |
Basic colour | blue / gray |
