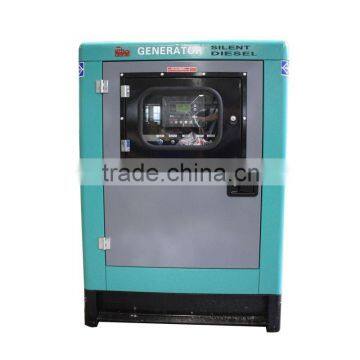

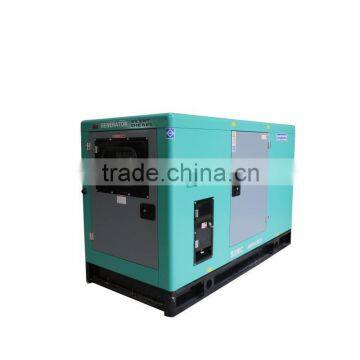

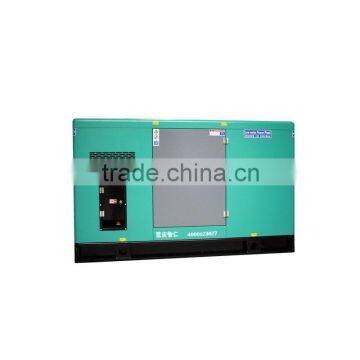

3 phase 4 stroke electric generation low price soundproof diesel generator 10kw 230v 400v
Basic Information:
1.10kva low price soundproof diesel generator
2. Diesel Engine Type: AC 3 phase, 4 stroke, OHV, water cooled, electric start.
3. Soundproof diesel generator set covered by super silent/soundproof hood.
4. This soundproof diesel generator is equipped with JMT, Wuxi Stamford, Marathon Motors, Shanghai Stamford, etc. Brushless ac synchronous alternator, and professional diesel generator control system. With functions of manual/automatic start control generator set/stop, detecting, displaying, protecting and alarming for voltage, current, water temperature, oil pressure parameters etc., and functions of remote sign, remote measure, remote control.
Unique Advantages:
1. Easy start, strong adaptability; economical and reliable.
2. The soundproof diesel generator is installed on steel chassis structure, all-welded structure, integrated design.
3. The chassis is equipped with holes for transport and installation.
Technical Parameters:
Genset Model |
GF15XJ |
Diesel Engine Model |
4dw81-23d |
Cooled Type |
Water Cooled |
Speed Regulating Type |
Mechanical Or Electrical Governor |
Structure |
4 Stroke |
BorexStroke (MmxMm) |
85x100 |
Compression Ratio |
17:1 |
Displacement |
2.27 |
Controller Model |
Deepsea 4620/Zhongzhi410 (Optional) |
Circuit Breaker |
63a (4 Pole) |
Rated Voltage |
400v/230v |
Rated Power |
12kw |
Rated Capacity |
15kva |
Max.Output Power |
13.20kw |
Max. Output Capacity |
16.50kva |
Rated Frequency |
50hz |
Rated Rpm |
1500rpm |
Power Factor |
Cosφ=0.8 (Lag) |
Fuel |
0# Light Diesel (Normal Temperature) |
Fuel Consumption (100%) |
240g/Kw.H |
Engine Oil Capacity (L) |
7.8 |
Sound Level @ 7m (Dba) |
≤73db |
Max. Environment Temperature |
40℃ |
Battery Voltage |
12v |
Base Fuel Tank Capacity (L) |
48 |
Steady-State Voltage Regulation( % ) |
≤±5 |
Voltage Fluctuations Volatility (% ) |
≤±0.5 |
Transient Voltage Regulation ( % ) |
+20 ~ -15 |
Voltage Steady Time (S) |
≤1 |
Steady State Frequency Regulation( % ) |
≤±1 |
Frequency Fluctuation Rate (%) |
≤±0.5 |
Transient Frequency Regulation (%) |
+10 ~ -7 |
Frequency Steady Time (S) |
≤3 |
Dimension (Lx W x H) Mm |
1850x850x1060 |
Genset Weight (Kg) |
630kg |
Product Display:
Product Application:
Our soundproof diesel generator set has been widely used in fields including communication, railway, banking, oil industry, chemical industry, electrical engineering and military which require low noise. With holes mounted on chassis, this super soundproof diesel generator set is convenient for transportation and installation. Our soundproof diesel generator set has won support and trust of a large number of users.
Production Process:
Packaging:
Gasoline Generator Sets Recommended:
| Kohler Series PM Gasoline Gensets | ||||
| Genset Model | Engine Model | Rated Power | Max Load | Sites |
| YH96000MK | Kohler CH440 | 8800VA | 9600VA | click here |
| YH97000MTEK | Kohler CH440 | 8800VA | 9700VA | click here |
| YH12000MEK | Kohler CH620 | 10000VA | 12000VA | click here |
| YH13000MTEK | Kohler CH620 | 10000VA | 13000VA | click here |
| YH14000MEK | Kohler CH640 | 12000VA | 14000VA | click here |
| YH14500MTEK | Kohler CH640 | 12000VA | 14500VA | click here |
| YH15000MTEK | Kohler CH730 | 13000VA | 15000VA | click here |
| YH17000MTEK | Kohler CH740 | 15000VA | 17000VA | click here |
| YH21000MTEK | Kohler CH750 | 18000VA | 21000VA | click here |
| YH23000MTEK | Kohler CH980 | 20000VA | 23000VA | click here |
Chongqing Zhiren Electric Equipment Co., Ltd. has been a professional Chinese manufacturer that integrates R&D, production and technical services of power generation equipment for since 2001.
Our most popular products are rare earth permanent magnet generator sets with state owned patent. Our main products include rare earth permanent magnet generator sets, digital inverter generators, DC generator sets, silent generator sets, remote control generator systems, welder & generator, mobile construction lamps, rail cutting machines, rail bolt wrenches, and material handling carts etc.
Our products have been widely used in communication, railway, oil, chemistry, utility and military fields with domestic clients like CHINA RAILWAY, ICBC, CCB, ABC, BOCOMM, China POST, CNPC, SINOPEC, STATE GRID, and The Chinese People's Liberation Army.
Please Feel Free to Contact Us, We Would be Very Glad to Provide You with Satisfactory Services.
