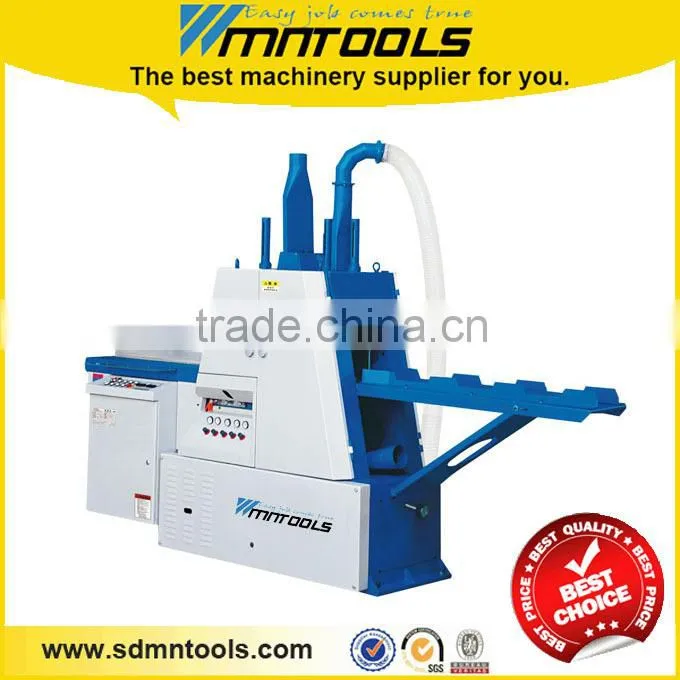

High Cutting Precision , Small Cutting Kerf Frame Saw Quality Choice

Name: High Cutting Precision , Small Cutting Kerf Frame Saw Quality Choice
Brand: MNTOOLS
SKU: 119023629
Availability: InStock

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Frame Saw

Use:

Woodworking

Qingdao MNT International Trade Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Frame Saw

Use Woodworking

Style Vertical

Place of Origin Shandong, China

Brand Name MNTOOLS

Model Number MTMJ1520

Usage Wood cutting

Voltage As per request

Power(W) 15kw

Dimension(L*W*H) 3600x1200x2300mm

Weight 3200kgs

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

European production quality;
High cutting precision;
Small cutting kerf;
wood saving.

Frame saw

Product Description

Model No.	MTMJ1520	MTMJ1525	MTMJ1530
Voltage	380v/ 50hz	380v/ 50hz	380v/ 50hz
Power	15kw	15kw	15kw
Feed speed	0.1-1.7m/min	0.1-1.7m/min	0.1-1.7m/min
Stroke of frame saw	210mm	210mm	210mm
Number of strokes	450times/ min	450times/ min	450times/ min
Cutting height	60-200mm (variable adjustment)	60-250mm (variable adjustment)	60-300mm (variable adjustment)
Cutting width with side guide	30-150mm	30-150mm	30-150mm
Cutting width with center guide	2x30-70mm	2x30-100mm	2x30-120mm
Number of channels with 7.5mm guide	3 channels with maximum width up to 50mm 4 channels with maximum width up to 30mm	3 channels with maximum width up to 65mm 4 channels with maximum width up to 45mm	3 channels with maximum width up to 80mm 4 channels with maximum width up to 55mm
Block length	>300mm	>300mm	>300mm
Block height tolerance with center guide	+/- 0.5mm	+/- 0.5mm	+/- 0.5mm
Minimum product thickness	2mm	2mm	2mm
Cutting precision less than 120mm height	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm
Cutting precision over than 120mm height	+/- 0.2mm	+/- 0.2mm	+/- 0.2mm
Number of saw blades	22	22	22
Suction tubes	3x100mm	3x100mm	3x100mm
Compressed air pressure	>6bar	>6bar	>6bar
Dimension	3600x1200x2300mm	3600x1200x2300mm	3600x1200x2300mm
Weight	3200kgs	3500kgs	3800kgs

Model No.	MTMJ2020	MTMJ2025	MTMJ2030
Voltage	380v/ 50hz	380v/ 50hz	380v/ 50hz
Power	15kw	18kw	18kw
Feed speed	0.1-1.7m/min	0.1-1.7m/min	0.1-1.7m/min
Stroke of frame saw	210mm	210mm	210mm
Number of strokes	460times/ min	460times/ min	460times/ min
Cutting height	60-200mm (variable adjustment)	60-250mm (variable adjustment)	60-300mm (variable adjustment)
Cutting width with side guide	30-200mm	30-200mm	30-200mm
Cutting width with center guide	2x30-70mm	2x30-100mm	2x30-120mm
Number of channels with 7.5mm guide	3 channels with maximum width up to 50mm 4 channels with maximum width up to 30mm	3 channels with maximum width up to 65mm 4 channels with maximum width up to 45mm	3 channels with maximum width up to 80mm 4 channels with maximum width up to 55mm
Block length	>300mm	>300mm	>300mm
Block height tolerance with center guide	+/- 0.5mm	+/- 0.5mm	+/- 0.5mm
Minimum product thickness	2mm	2mm	2mm
Cutting precision less than 120mm height	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm
Cutting precision over than 120mm height	+/- 0.2mm	+/- 0.2mm	+/- 0.2mm
Number of saw blades	22	22	22
Suction tubes	3x100mm	3x100mm	3x100mm
Compressed air pressure	>6bar	>6bar	>6bar
Dimension	3600x1200x2300mm	3600x1200x2300mm	3600x1200x2300mm
Weight	3300kgs	3600kgs	3900kgs

Model No.	MTMJ2525	MTMJ2530
Voltage	380v/ 50hz	380v/ 50hz
Power	18kw	21kw
Feed speed	0.1-1.7m/min	0.1-1.7m/min
Stroke of frame saw	210mm	210mm
Number of strokes	460times/ min	460times/ min
Cutting height	60-250mm (variable adjustment)	60-300mm (variable adjustment)
Cutting width with side guide	30-250mm	30-250mm
Cutting width with center guide	2x30-100mm	2x30-120mm
Number of channels with 7.5mm guide	3 channels with maximum width up to 65mm 4 channels with maximum width up to 45mm	3 channels with maximum width up to 80mm 4 channels with maximum width up to 55mm
Block length	>300mm	>300mm
Block height tolerance with center guide	+/- 0.5mm	+/- 0.5mm
Minimum product thickness	2mm	2mm
Cutting precision less than 120mm height	+/- 0.1mm	+/- 0.1mm
Cutting precision over than 120mm height	+/- 0.2mm	+/- 0.2mm
Number of saw blades	22	22
Suction tubes	3x100mm	3x100mm
Compressed air pressure	>6bar	>6bar
Dimension	3600x1200x2300mm	3600x1200x2300mm
Weight	3600kgs	3900kgs

Model No.	MTMJ3030
Voltage	380v/ 50hz
Power	21kw
Feed speed	0.1-1.7m/min
Stroke of frame saw	210mm
Number of strokes	460times/ min
Cutting height	60-300mm (variable adjustment)
Cutting width with side guide	50-300mm
Cutting width with center guide	2x30-120mm
Number of channels with 7.5mm guide	3 channels with maximum width up to 80mm 4 channels with maximum width up to 55mm
Block length	>300mm
Block height tolerance with center guide	+/- 0.5mm
Minimum product thickness	2mm
Cutting precision less than 120mm height	+/- 0.1mm
Cutting precision over than 120mm height	+/- 0.2mm
Number of saw blades	22
Suction tubes	3x100mm
Compressed air pressure	>6bar
Dimension	3600x1200x2300mm
Weight	4000kgs
