Specifications
European quality level;High sanding precision;
Long working life with low maintenance;

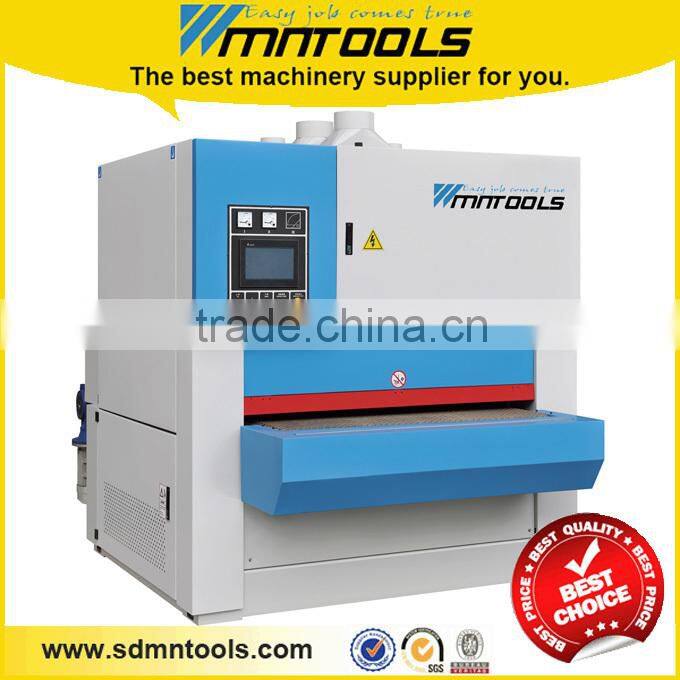

Wide belt sander
Features:
1, It is designed professionally to apply for the precise sanding of the lacquers and veneers.

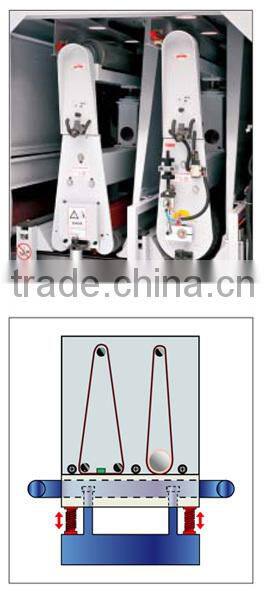

2, With fixed working table height. Sanding thickness is adjusted by lifting the upper machine body to fit production line.
3, It adopts 60pcs separate keyboard sanding modular, which can provide precise sanding for the irregular work piece with 0-2mm tolerance like circle shape, triangle shape and etc.
4, Touch screen controller system.
5, Variable feeding speed and sanding speed that controlled by frequency inverter.

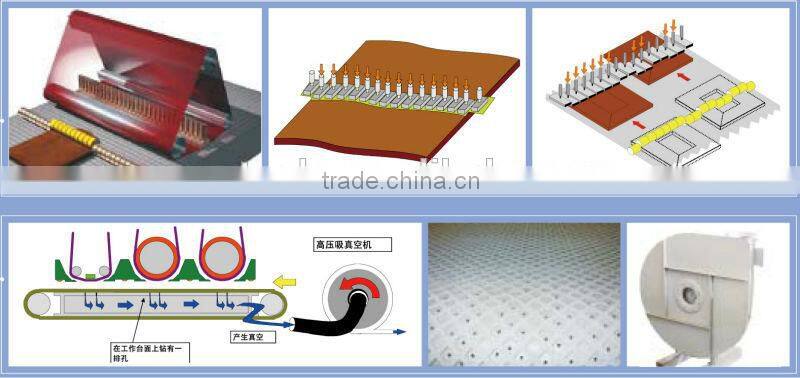

6, By the pressing feet, pressing roller and vacuum suction feeding belt, it bigly enhance the sanding precision for the think or short work piece.
7, With sanding belt self cleaning system, which increase the working lift bigly.
8, 3M polishing roller.
Technical specifications:
Model No. |
MTKBS1300R-P |
ing width |
60-1350mm |
ing length |
350mm |
Working thickness |
2.5-100mm |
1st sanding motor power |
11kw |
2nd sanding motor power |
11kw |
Feeding motor power |
2.2kw |
Lifting motor power |
0.75kw |
Polishing roller |
1.5kw |
Vacuum suction motor power |
5.5kw |
Total power |
31.95kw |
1st sanding speed |
2-15m/s |
2nd sanding speed |
2-15m/s |
Sanding belt size |
2620*1370mm |
Air pressure |
0.55mpa |
Compressed air consumption rate |
0.15m³/h |
Dust collection air volume |
5000m³/h |
N.W |
4800kg |
