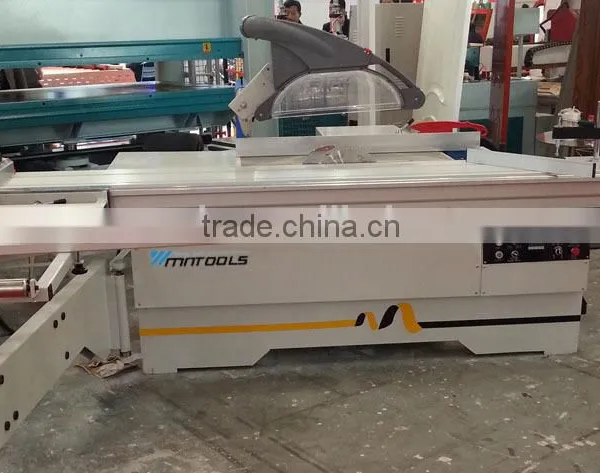

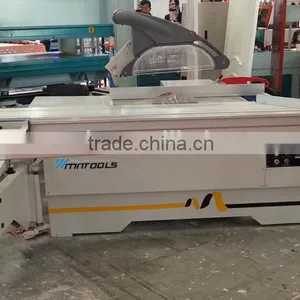

Panel saw
Parameter
Model |
MTPS6132TYD |
Dimension of sliding table |
3200*405mm |
Max. Cut length |
3200mm |
Max. Cut width |
1250mm |
Max. Cut thickness |
80mm |
Diameter of saw blade |
300mm |
Diameter of guide shaft spindle |
40mm |
Max. Sawing thickness at 45° |
55mm |
Speed of main saw spindle |
4000/6000rpm |
Spindle diameter |
30mm |
Arbor tilt |
0-45° |
Main motor |
4/5.5kw |
Scoring diameter |
120mm |
Scoring blade RPM |
8000r/min |
Scoring spindle diameter |
20mm |
Scoring motor |
0.75kw |
Overall dimensions |
3200*900*960mm |
If deliver by container, we will pack the machine with plastic film and a bottom pallet.
If deliver by LCL, will use plywood cases.
Delivery term, can be EXW, FOB, CNF, CIF, Up to your requirements.
1, One year warranty
2, Free Comprehensive Training
3, Lifelong maintenance.
4, Equipped with necessary accessories to improve productivity
5, Fast response
