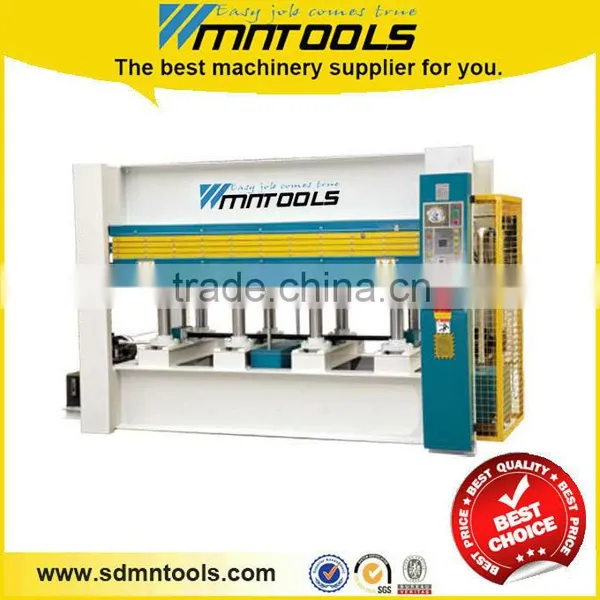

Veneer Laminating Hot Press Machine

Name: Veneer Laminating Hot Press Machine
Brand: MNTOOLS
SKU: 119021801
Availability: InStock

US$ 1 - 1 MOQ: 1 Piece

Key Specifications

Condition:

New

Type:

Hot Press Machine

Place of Origin:

Shandong, China

Qingdao MNT International Trade Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Hot Press Machine

Place of Origin Shandong, China

Brand Name MNTOOLS

Model Number MTMH38410X100 (1 layer)

Voltage as per request

Power(W) 7.7kw

Dimension(L*W*H) 3940 x1620x2130mm

Weight 6600kgs

Certification ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hot press
High quality; Easily operation; Low maintenace
Different pressure rate, platen table size, layers Qty models

Hot press

Product Description

SPECIFICATION:

Model No.	MTMH38410X100 (1 layer)	MTMH38410X100 (2 layer)	MTMH38410X100 (3 layer)
Table size	1300 ×3100 ×42mm	1300 ×3100 ×42mm	1300 ×3100 ×42mm
Max. pressure of worktable	100t(2.5kg/cm2)	100t(2.5kg/cm2)	100t(2.5kg/cm2)
Pressure of hydraulic system	210kg/cm2	210kg/cm2	210kg/cm2
Max.platen opening	300mm	150mm	100mm
Oil cylinder	100 × 6pcs	100 × 6pcs	100 × 6pcs
Hydraulic pump power	5.5kw	5.5kw	5.5kw
Hot oil pump power	2.2kw	2.2kw	2.2kw
Heating pipe power	1 × 27kw	2 × 18kw	18kw + 27kw
Overall dimensions	3940 ×1620 ×2130mm	3940 ×1620 ×2170mm	3940 ×1620 ×2210mm
Net weight	6600kg	7900kg	9200kg

CHARACTERISTIC:

	Automatic device for controlling close and open Suitable to press veneer , fireboard , decorating-paper etc. Heating type:
	1.Electric calefaction with circulating heat-transmission oil
	2.Steam gas calefaction with circulating heat-transmission oil
	3.With both electric and steam gas calefaction, special for the unsteady steam gas supply areas (three calefaction model can be selected by the client)
	key spare parts, pump , are imported from Japan, Taiwan
